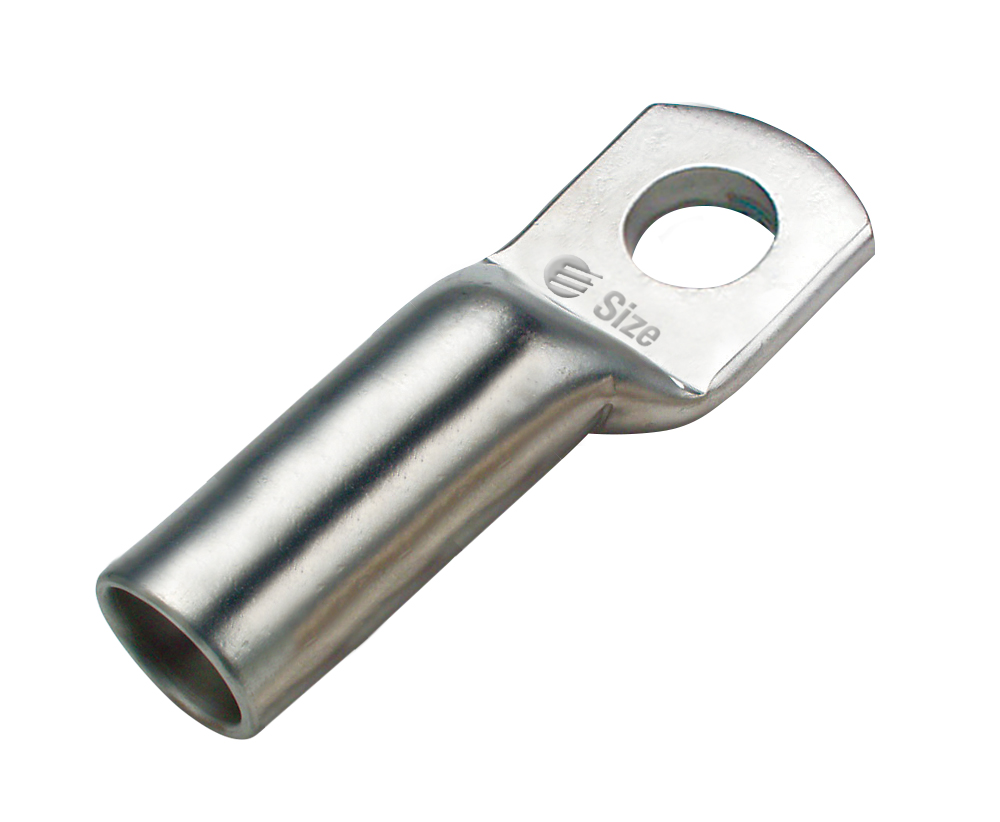

CABAC CU LUG 95MM2 CABLE 12MM STUD CAL95LB-12 x 1/EACH

Description

High-Performance Terminations Built for Demanding Electrical Loads

When reliability under load matters, this CABAC 95mm² copper long barrel lug delivers consistent conductivity and mechanical strength for critical power connections. Designed for larger cable terminations, it supports high-current applications where secure crimping and stable conductivity are essential.

The extended barrel design allows multiple crimp points, improving pull-out strength and reducing failure risk in high-stress environments such as HV terminations, distribution connections, and outdoor power systems. With 99.95% high-conductivity copper construction, it ensures minimal resistance and efficient current transfer on every installation.

For electricians and contractors working under tight deadlines, this lug helps streamline termination work while maintaining dependable electrical performance across demanding job sites.

Engineered for Compliance, Durability & Harsh Environments

Built to meet international electrical standards including AS4325 Part 1, IEC, DIN/VDE, JIS, BS, and NEMA, this lug is designed for compliance-driven installations where safety and certification matter.

The tin-plated finish (99.9% pure tin, 5–10 microns) enhances corrosion resistance, making it suitable for outdoor and exposed environments. Solder-sealed palms help prevent moisture ingress, protecting long-term connection integrity.

With an operating temperature range of -55°C to 155°C, this lug performs reliably in both extreme heat and cold conditions. Its fully annealed copper structure ensures strong ductility while maintaining mechanical stability during crimping and service life.

Trade Efficiency & Installer-Friendly Design

Designed with electricians in mind, the extra-long barrel allows more crimping area, improving installation confidence in high-vibration or high-load applications. It also provides additional length for heatshrink sealing, helping achieve a clean, airtight, and professional finish every time.

Compatible with standard hexagonal crimping dies and interchangeable tooling across CABAC, Utilux, and Burndy systems, it integrates seamlessly into existing trade workflows—reducing tool changes and saving time on-site.

For contractors managing multiple installs or tight project schedules, this lug helps improve installation speed, reduce rework, and maintain consistent termination quality across every job.

Key Specs

• Nominal Conductor Size: 95mm²
• Stud Size: 12mm
• Inner Diameter (ID): 13.4mm
• Material: 99.95% high conductivity copper
• Oxygen Content: Max 30 p.p.m
• Tensile Strength: 200 MPa
• Ductility: 40%
• Plating: 99.9% tin
• Plating Thickness: 5–10 microns
• Conductivity: 99.7% IACS
• Resistivity: 1.738 micro-ohm cm
• Operating Temperature: -55°C to 155°C
• Standards: AS4325 Part 1, IEC, DIN/VDE, JIS, BS, NEMA
• Tool Compatibility: CABAC, Utilux, Burndy interchangeable tooling

Ideal For

• Licensed electricians and electrical contractors
• High-voltage cable termination work
• Industrial and commercial electrical installations
• Outdoor and exposed electrical connections
• Switchboards, distribution systems, and heavy power feeds
• Maintenance and upgrade works in infrastructure projects
