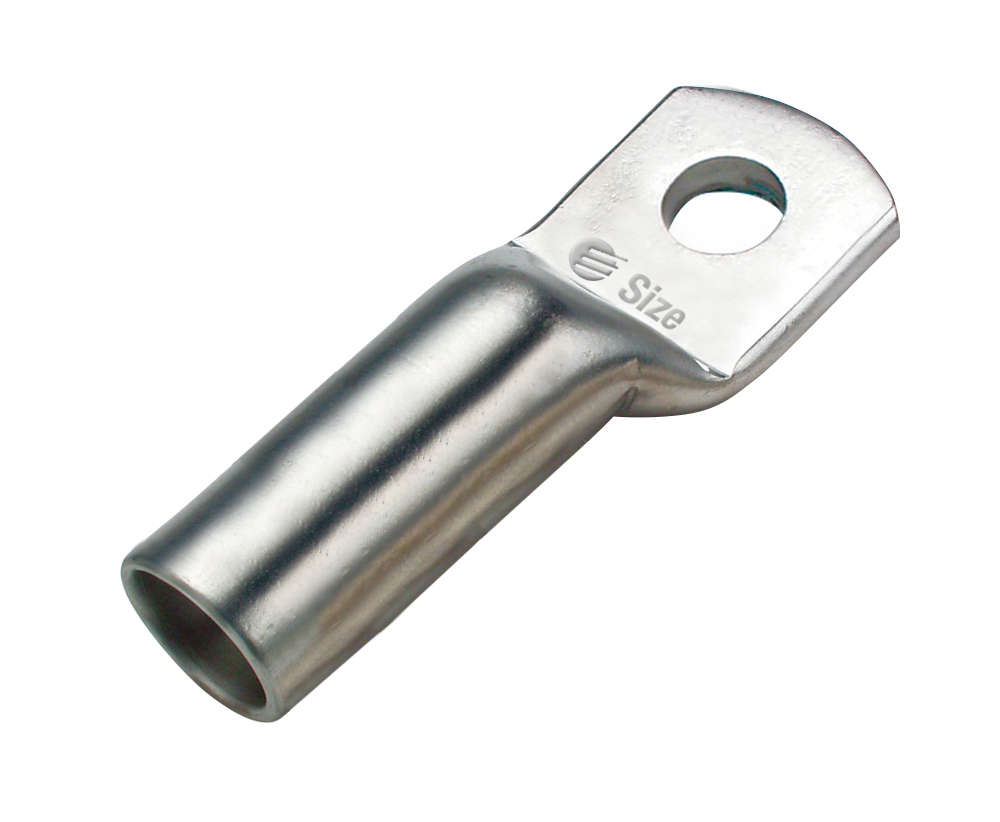

CABAC CU LUG 95MM2 CABLE 10MM STUD CAL95LB-10 x 1/EACH

Description

High-Performance Copper Connection for Demanding Electrical Work

When the job calls for a reliable, high-current termination, this 95mm² copper lug delivers consistent performance where it matters most. Manufactured from high conductivity copper, it ensures excellent electrical flow with minimal resistance, making it ideal for demanding installations such as power distribution, switchgear, and heavy-duty terminations.

The extra-long barrel design allows multiple crimps for improved mechanical strength, giving you a secure connection even in high-vibration or high-stress environments. This also provides added length for heatshrink application, helping achieve a tight, professional, and sealed finish on every termination.

For electricians working under tight deadlines, the ability to crimp using standard hexagon dies means faster installation without needing specialised tooling, keeping productivity high on site.

Built for Compliance, Durability, and Outdoor Protection

Designed for external and harsh environment use, this copper lug is palm solder sealed to prevent moisture ingress, reducing the risk of corrosion and long-term connection failure. The tin-plated finish further enhances durability and electrical stability, supporting long service life in both indoor and outdoor applications.

Manufactured from 99.95% pure copper with oxygen-free properties, it delivers excellent conductivity and mechanical reliability across a wide temperature range from -55°C to 155°C. This makes it suitable for critical infrastructure, industrial systems, and commercial installations where compliance and safety cannot be compromised.

Fully compliant with major international standards including AS4325 Part 1, IEC, DIN/VDE, JIS, BS, and NEMA, this lug supports confident installation across regulated projects. Test reports are available on request, assisting with documentation and project compliance requirements.

Trade-Ready Design for Faster Installation and Reduced Downtime

Built with electricians and contractors in mind, this lug is compatible with tooling systems across CABAC, Utilux, and Burndy, reducing friction on site when working with mixed tool inventories. The interchangeable tooling design helps streamline installation across multiple jobs and teams.

Whether you’re working on commercial switchboards, industrial maintenance, or large-scale infrastructure projects, this lug helps reduce installation time while improving termination consistency. Its long barrel and strong mechanical grip make it a dependable choice when reliability and speed are both critical.

From routine maintenance work to high-voltage terminations, this is a go-to solution for trades who need dependable stock availability, consistent quality, and no surprises on site.

Key Specs

• Nominal Conductor: 95mm²
• ID Size: 13.4mm
• Stud Size: 10mm
• Conductive Material: 99.95% pure copper
• Oxygen Content: 30 p.p.m max
• Tensile Strength: 200 MPa
• Ductile Rating: 40%
• Final Metal State: Fully annealed
• Electroplating: 99.9% tin (5–10 microns)
• Conductivity: 99.7% IACS
• Resistivity: 1.738 micro-ohm cm
• Operating Temperature: -55°C to 155°C

Ideal For

• Industrial electrical terminations
• Switchboard and distribution board connections
• High-voltage cable terminations
• Commercial and infrastructure projects
• Electrical contractors and licensed electricians
• Maintenance and facility management teams
• Outdoor and moisture-prone installations
