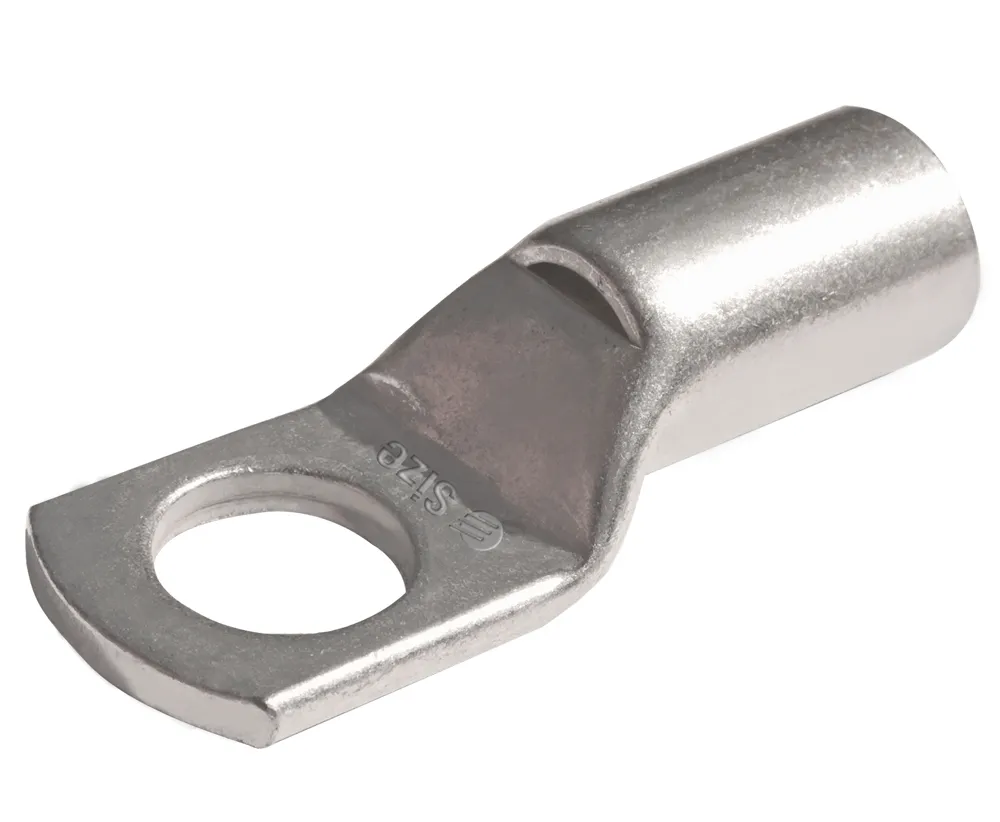

CABAC CU LUG 70MM2 CABLE 6MM STUD CAL70-6 25/BOX

Description

Product Description

Copper Crimp Lug – Standard Range



CABAC copper crimp lugs are made from 99.9% + cu high conductivity annealed copper which gives the best electrical properties possible.



It is our recommendation that CABAC copper crimp lugs should be crimped with standard Australian tooling.



Conformant Standards

AS4325 Part 1 Australia; IEC France, DIN/VDE Germany, JIS Japan, BS United Kingdom and NEMA USA

Test reports are available on request

Technical Information

Conductive Material

Copper 99.95% pure

Oxygen content 30 p.p.m Max.

Tensile strength 200 MPa

Ductile rating 40%

Final metal state fully annealed



Electroplating Material

Tin 99.9% pure

Other metals lead + antimony

Thickness 5 -10 microns



Dimensional Specification

Tooling is interchangeable between CABAC, Utilux and Burndy



General Electrical Properties

Total conductivity 99.7% IACS

Total resistivity: 1.738 micro-ohm cm



Accepting Authorities

Electricity Services Victoria, Energy Australia, Rail Services Australia, Energex, Western Power, Ergon, Integral Energy, Country Energy, Powercor and many other recognised authorities



Torque Recommendations

Recommended torques for hardware should be to Australian and New Zealand Standards

Thread dia.(mm) / Torque (Nm)

5 / 5

6 / 9

8 / 22

10 / 44

12 / 77

16 / 190


Specification

Nominal Conductor (mm2): 70

Stranding No./Dia.: 19/2.14

ID Size (mm): 11.2

Stud (mm): 6

Qty Per Box: 25
