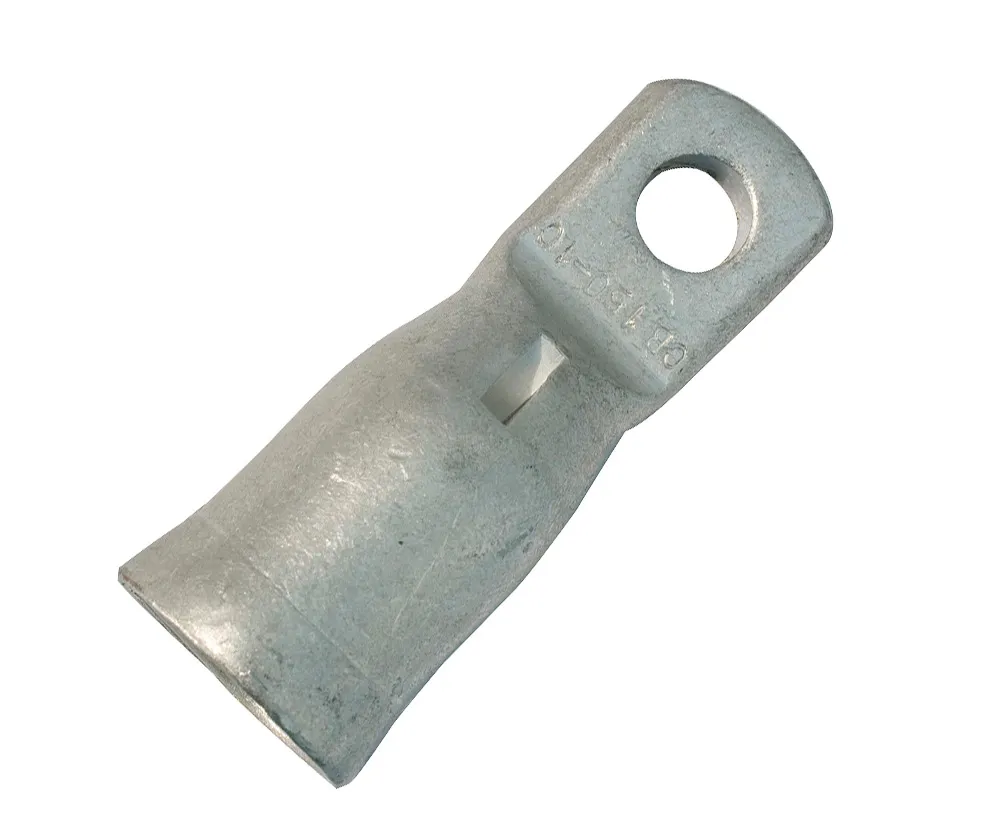

CABAC CU LUG 630MM2 CABLE 12MM STUD CAL630-12 x 1/EACH

Description

High Conductivity Performance for Heavy-Duty Terminations

Designed for demanding electrical installations, this CABAC copper crimp lug delivers exceptional conductivity and consistent performance on large 630mm² cables. Manufactured from 99.9%+ high-conductivity annealed copper, it ensures efficient current transfer with minimal resistance—ideal for high-load applications where reliability matters.

The fully annealed construction improves ductility, making crimping easier and more secure while reducing the risk of cracking during installation. Combined with a precision 12mm stud hole, this lug provides a solid, low-resistance connection that holds up under load in industrial and commercial environments.

Proven Reliability with Global Standards Compliance

When working on critical infrastructure, compliance isn’t optional. These CABAC lugs meet a wide range of international standards including AS4325, IEC, DIN/VDE, JIS, BS, and NEMA—giving confidence across projects and specifications.

Tin electroplating (99.9% pure, 5–10 microns thick) protects against corrosion and oxidation, extending service life in harsh environments. With acceptance from major Australian electrical authorities, this lug is a trusted choice for contractors who need consistent, compliant performance across every install.

Trade-Ready Fitment for Faster Installations

Built for efficiency on-site, this lug is compatible with standard Australian crimping tools and interchangeable with CABAC, Utilux, and Burndy tooling—helping reduce downtime and eliminate tooling issues.

Whether you’re working on switchboards, distribution systems, or large-scale commercial fit-outs, this lug supports fast, repeatable terminations. Backed by a reliable supply chain and competitive trade pricing, it’s a practical choice for electricians managing tight deadlines and multiple jobs.

Key Specs

• Cable Size: 630mm²
• Stud Size: 12mm
• Material: Copper (99.95% pure)
• Oxygen Content: 30 p.p.m max
• Tensile Strength: 200 MPa
• Ductility Rating: 40%
• Metal State: Fully annealed
• Conductivity: 99.7% IACS
• Resistivity: 1.738 micro-ohm cm
• Plating: Tin (99.9% pure)
• Plating Thickness: 5–10 microns
• Standards: AS4325 Part 1, IEC, DIN/VDE, JIS, BS, NEMA
• Tooling Compatibility: CABAC, Utilux, Burndy

Ideal For

• Licensed electricians and electrical contractors
• Industrial power distribution and switchboard builds
• Commercial electrical installations
• Maintenance teams handling high-current systems
• Infrastructure and utility projects requiring compliant terminations
