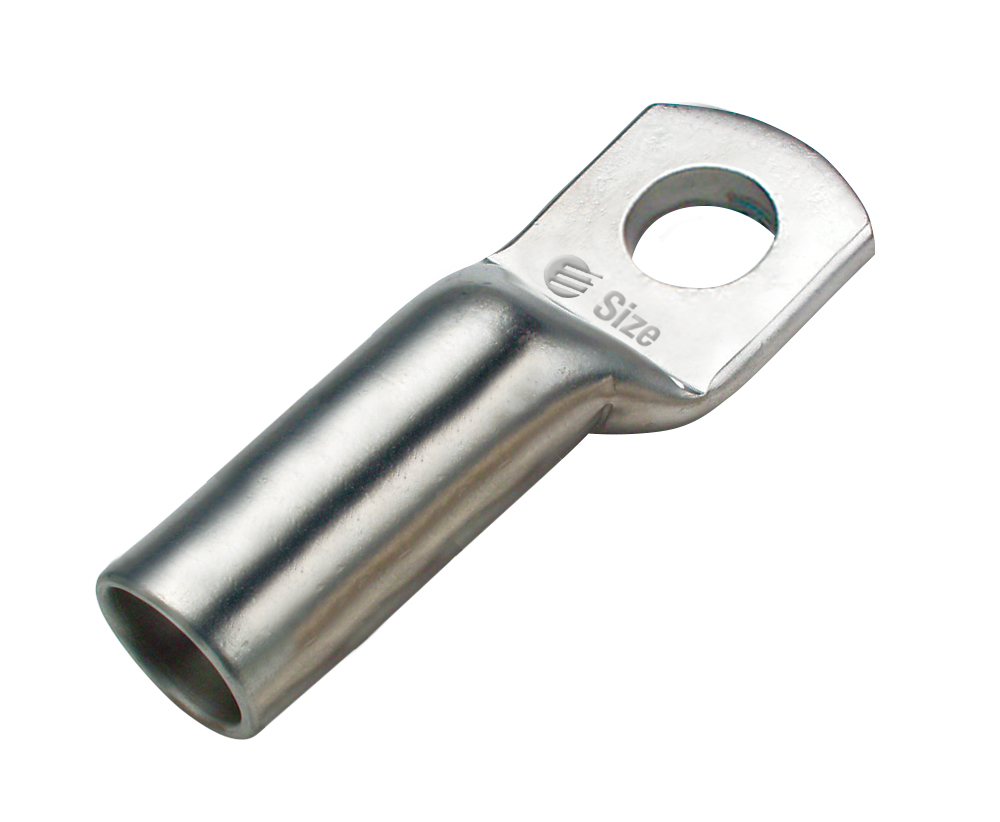

CABAC CU LUG 50MM2 CABLE 12MM STUD CAL50LB-12 x 1/EACH

Description

Maximum Conductivity & Secure Termination Performance

Built for demanding electrical environments, this long barrel copper lug delivers consistent, low-resistance connections where it matters most. Manufactured from 99.9%+ high-conductivity copper, it ensures optimal current flow and minimal energy loss across your installation.

The extended barrel design allows for multiple crimps, giving you a stronger mechanical bond—ideal for high-stress applications like high voltage terminations and dropout fuses. With more surface area for heatshrink, you can achieve a tighter, fully sealed finish that stands up to harsh outdoor conditions.

Sealed for Outdoor Reliability & Standards Compliance

Designed specifically for external use, this lug features a fully sealed palm with no inspection window, preventing moisture ingress and reducing the risk of corrosion over time. The tin-plated finish (99.9% pure) adds another layer of protection, extending service life in exposed environments.

Manufactured to meet key international standards including AS4325, IEC, DIN/VDE, JIS, BS, and NEMA, this lug provides peace of mind on compliant installations. Fully annealed copper ensures excellent ductility for reliable crimping, while maintaining strength under load.

Trade-Ready Design for Fast, Hassle-Free Installations

Time on site matters. This lug is designed for compatibility with standard hexagon dies, meaning no need for specialised tooling—just pick it up and get the job done. Tooling interchangeability with major brands like CABAC, Utilux, and Burndy keeps your workflow smooth and efficient.

For contractors managing tight deadlines and multiple jobs, this translates to faster installs, fewer delays, and dependable results every time. Whether you’re working on commercial fit-outs or maintenance tasks, it’s a reliable go-to for consistent performance.

Key Specs

• Nominal Conductor: 50mm²
• Internal Diameter: 9.5mm
• Stud Size: 12mm
• Conductive Material: Copper 99.95% pure
• Oxygen Content: 30 p.p.m max
• Tensile Strength: 200 MPa
• Ductility: 40%
• Metal State: Fully annealed
• Electroplating: Tin 99.9% pure
• Plating Thickness: 5–10 microns
• Conductivity: 99.7% IACS
• Resistivity: 1.738 micro-ohm cm
• Operating Temperature: -55°C to 155°C
• Standards: AS4325 Part 1, IEC, DIN/VDE, JIS, BS, NEMA
• Tooling Compatibility: CABAC, Utilux, Burndy

Ideal For

• High voltage terminations
• Dropout fuse connections
• Outdoor cable terminations
• Commercial and industrial installations
• Maintenance and upgrade work
• Electricians requiring sealed, weather-resistant lugs
