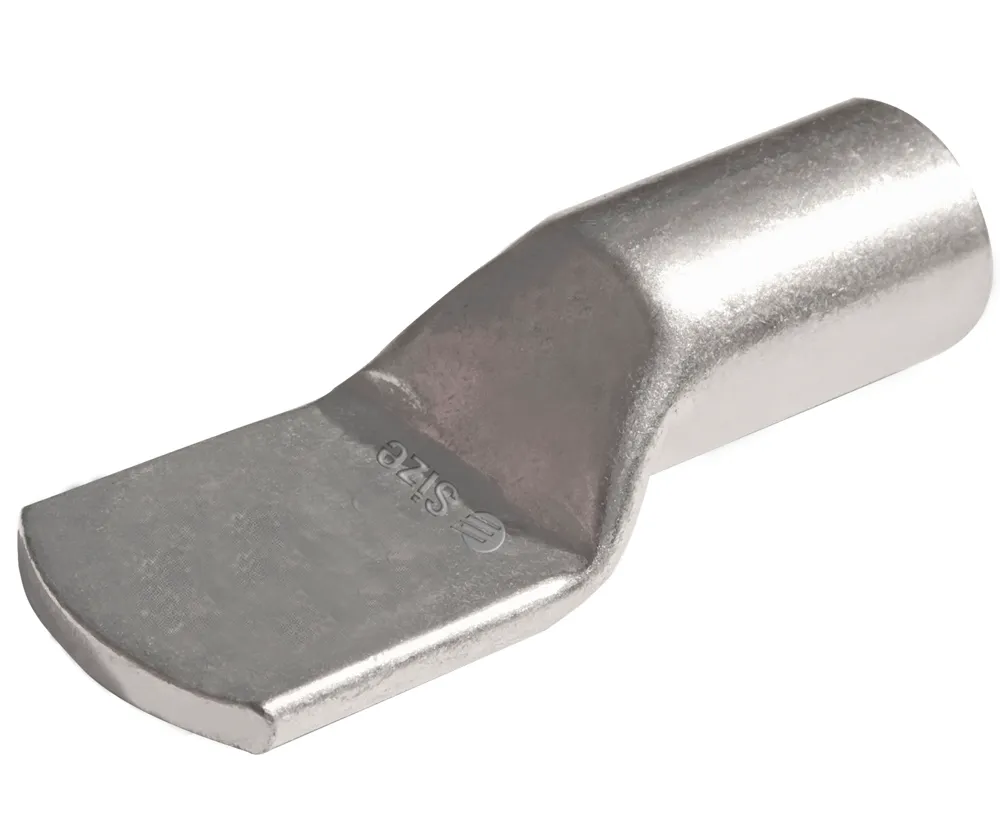

CABAC CU LUG 400MM2 CABLE BLANK CAL400 x 1/EACH

Description

High Conductivity Performance for Heavy-Duty Connections

When you’re terminating large conductors, performance matters. This 400mm² copper crimp lug is manufactured from 99.9%+ high-conductivity annealed copper, delivering excellent current flow and minimal resistance on demanding installs. The fully annealed construction ensures strong, consistent crimps while maintaining flexibility during installation—helping reduce the risk of cracking or poor terminations on-site.

Finished with a high-quality tin plating (5–10 microns), it provides added protection against corrosion, making it suitable for long-term performance in a wide range of environments. Whether you’re working on switchboards, mains connections, or industrial terminations, this lug is built to handle high-load applications with confidence.

Proven Reliability & Standards Compliance

Designed to meet multiple international and Australian standards, this CABAC copper lug supports compliance across residential, commercial, and industrial projects. It conforms to AS4325 Part 1 and aligns with globally recognised standards including IEC, DIN/VDE, JIS, BS, and NEMA—giving you peace of mind when working on regulated installations.

With 99.7% IACS conductivity and strict manufacturing controls (oxygen content ≤30 ppm, tensile strength 200 MPa), you get consistent electrical and mechanical performance across every termination. Trusted by major utilities and authorities, this lug helps ensure your installs meet spec, pass inspection, and avoid costly rework.

Trade-Ready Fit & Easy Installation

Built for efficiency on-site, this lug is compatible with standard Australian crimping tools and interchangeable with major brands like CABAC, Utilux, and Burndy—reducing the need for specialised tooling. The blank palm design gives you flexibility for custom drilling or unique project requirements, making it ideal for non-standard terminations.

Supplied as a single unit, it’s perfect for project-based purchasing or topping up van stock without overcommitting. For electricians and contractors managing tight deadlines, this means faster installs, fewer delays, and reliable results every time.

Key Specs

• Nominal Conductor: 400mm²
• Stranding No./Dia.: 61/2.85
• ID Size: 26.8mm
• Stud Size: Blank
• Conductive Material: Copper (99.95% pure)
• Oxygen Content: 30 p.p.m max
• Tensile Strength: 200 MPa
• Ductility: 40%
• Plating: Tin (99.9%, 5–10 microns)
• Conductivity: 99.7% IACS
• Resistivity: 1.738 micro-ohm cm
• Qty Per Box: 1

Ideal For

• Terminating large 400mm² conductors
• Switchboard and distribution board builds
• Industrial and commercial electrical installations
• Custom termination jobs requiring blank palms
• Maintenance teams handling high-load cable connections
