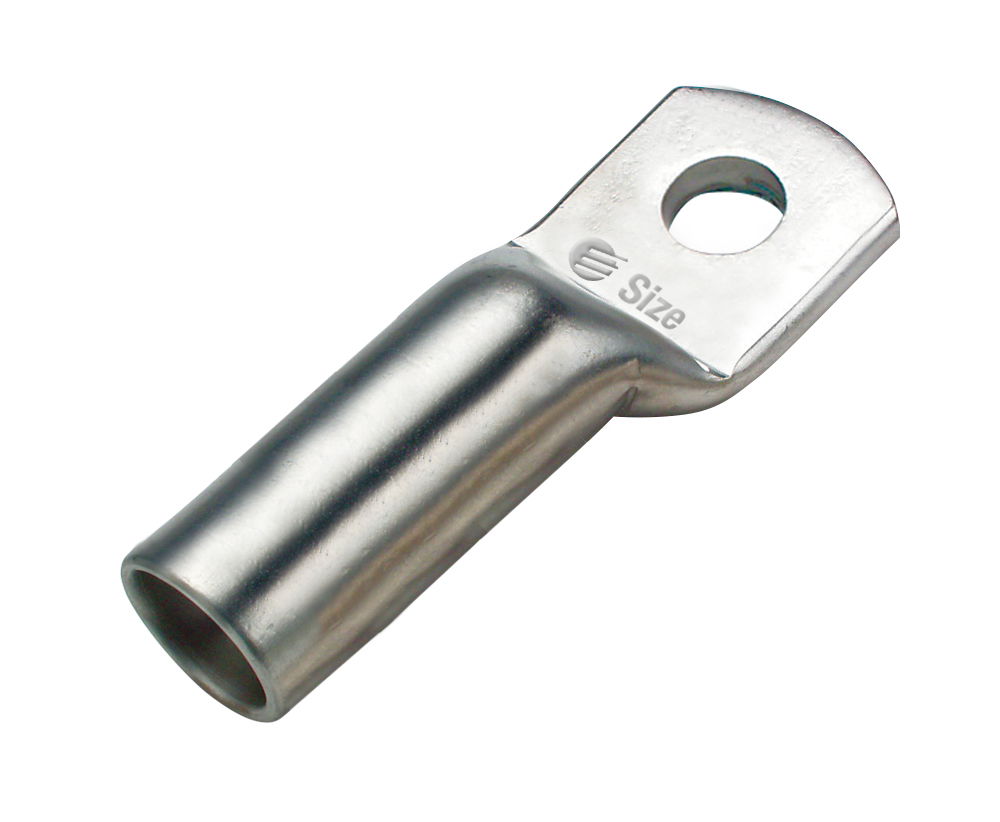

CABAC CU LUG 35MM2 CABLE 8MM STD CAL35LB-8 x 1/EACH

Description

High-Conductivity Performance for Demanding Terminations

When you need a dependable connection on high-load circuits, the CABAC 35mm² copper long barrel lug delivers consistent electrical performance. Manufactured from 99.9%+ high-conductivity copper, this lug ensures optimal current flow with minimal resistance—ideal for high voltage terminations and critical connections. The extra-long barrel design allows for multiple crimps, giving you a stronger mechanical bond and improved conductivity in high-stress applications like drop-out fuses and mains terminations.

Built for Outdoor Reliability & Standards Compliance

Designed specifically for external use, this copper lug features a sealed palm to prevent water ingress—helping maintain long-term integrity in harsh Australian conditions. The tin-plated finish adds corrosion resistance, while the absence of an inspection window eliminates potential entry points for moisture. Fully compliant with major international standards including AS4325, IEC, DIN/VDE, JIS, BS, and NEMA, this lug supports safe, regulation-compliant installations across residential, commercial, and industrial jobs.

Trade-Ready Convenience & Easy Installation

On-site efficiency matters. This long barrel lug is designed for use with standard hexagon crimping dies—no need for specialised tooling. Interchangeable tooling compatibility with CABAC, Utilux, and Burndy systems keeps your workflow simple and flexible. The extended barrel also provides extra room for heat shrink, helping you achieve a clean, airtight seal with less effort. Whether you’re working to tight deadlines or managing multiple jobs, this lug helps reduce installation time and avoid costly rework.

Key Specs

• Nominal Conductor: 35mm²
• ID Size: 8.2mm
• Stud Size: 8mm
• Conductive Material: Copper (99.95% pure)
• Oxygen Content: 30 p.p.m max
• Tensile Strength: 200 MPa
• Ductility: 40%
• Metal अवस्था: Fully annealed
• Electroplating: Tin (99.9% pure)
• Plating Thickness: 5–10 microns
• Conductivity: 99.7% IACS
• Resistivity: 1.738 micro-ohm cm
• Operating Temperature: -55°C to 155°C

Ideal For

• High voltage cable terminations
• Outdoor electrical installations
• Drop-out fuse connections
• Switchboard and distribution board wiring
• Commercial and industrial electrical projects
• Licensed electricians and contractors requiring compliant terminations
