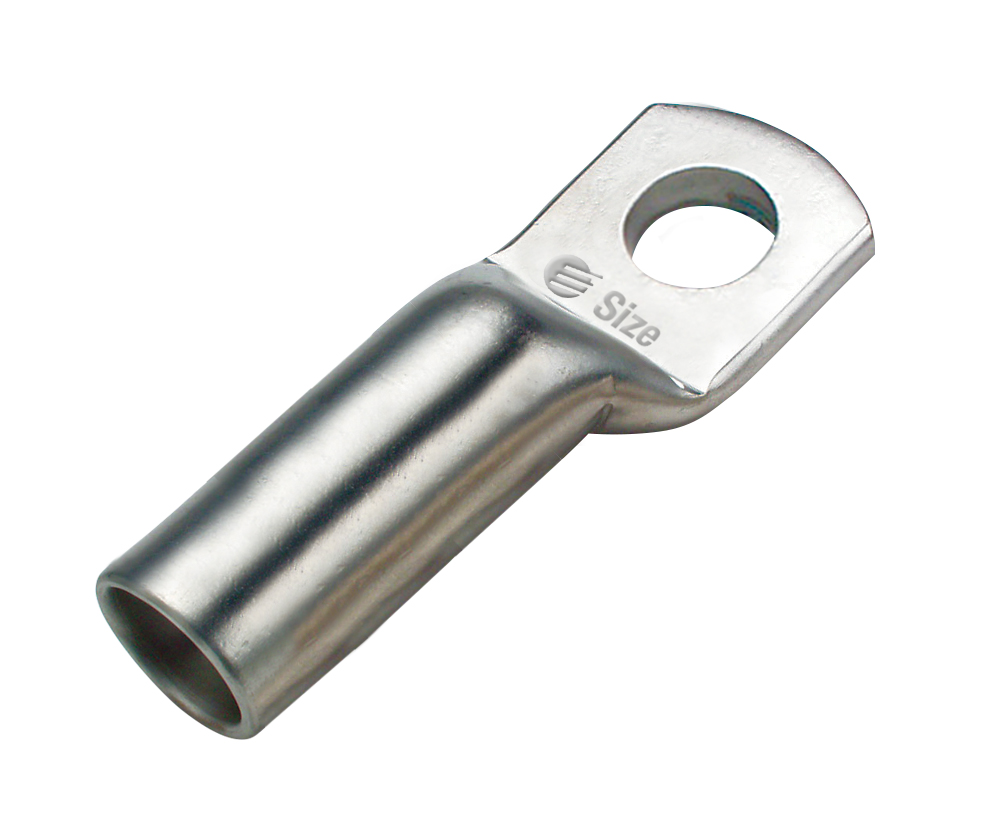

CABAC CU LUG 35MM2 CABLE 12MM STUD SEALED PALM CAL35LB-12 x 1/EACH

Description

High-Performance Termination for Demanding Installations

When reliability under load matters, this CABAC copper long barrel lug delivers consistent, high-conductivity performance for 35mm² cable applications. Manufactured from 99.9%+ high conductivity copper, it ensures minimal resistance and efficient current transfer—ideal for high-stress terminations such as switchboards, distribution systems, and drop-out fuses.

The extended barrel design allows for multiple crimps, giving you stronger mechanical connections and improved electrical integrity on critical jobs. Whether you’re working on high-voltage terminations or heavy-duty cabling, this lug supports a secure, professional finish that holds up over time.

Built for Outdoor Reliability & Compliance

Designed specifically for external environments, this lug features a sealed palm to prevent water ingress—helping maintain connection integrity in harsh Australian conditions. With no inspection window and a fully sealed palm, it’s purpose-built for outdoor use where moisture protection is essential.

The tin electroplating (99.9% pure, 5–10 microns thick) adds corrosion resistance, extending service life and reducing maintenance risks on-site. Manufactured to meet key international standards including AS4325 Part 1, IEC, DIN/VDE, JIS, BS, and NEMA, it gives contractors confidence in compliance across residential, commercial, and industrial installations.

Trade-Ready Design for Faster Installs

Time on site matters. This long barrel lug is designed for compatibility with standard hexagon dies—no need for specialised tooling—making it easy to integrate into your existing workflow. The longer barrel also provides extra room for heatshrink application, helping you achieve a clean, airtight seal quickly and efficiently.

With interchangeable tooling compatibility across CABAC, Utilux, and Burndy systems, it reduces setup hassle and keeps your installs moving without delays. Backed by consistent availability and trade-grade quality, it’s a dependable choice for contractors managing tight schedules and multiple jobs.

Key Specs

• Nominal Conductor: 35mm²
• ID Size: 8.2mm
• Stud Size: 12mm
• Conductive Material: 99.95% pure copper
• Oxygen Content: 30 p.p.m max
• Tensile Strength: 200 MPa
• Ductile Rating: 40%
• Metal State: Fully annealed
• Electroplating: Tin 99.9% pure
• Plating Thickness: 5–10 microns
• Conductivity: 99.7% IACS
• Resistivity: 1.738 micro-ohm cm
• Operating Temperature: -55°C to 155°C

Ideal For

• Outdoor cable terminations exposed to moisture
• High-voltage and high-stress electrical connections
• Switchboards and distribution systems
• Drop-out fuse installations
• Commercial and industrial electrical projects
• Contractors needing secure, multi-crimp lug connections
