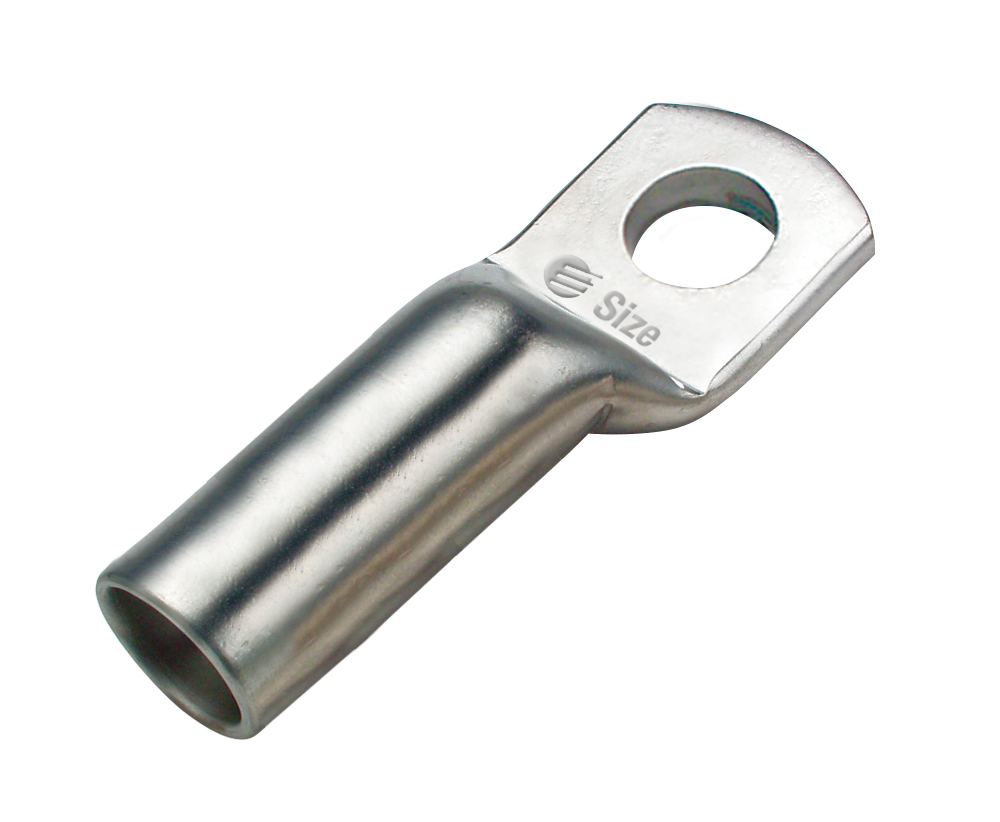

CABAC CU LUG 25MM2 CABLE 12MM STUD CAL25LB-12 x 1/EACH

Description

High-Performance Copper Termination for Demanding Electrical Work

The CABAC 25mm² Copper Long Barrel Lug (12mm Stud) is built for reliable, high-integrity cable terminations in demanding electrical environments. Designed for 25mm² conductors, the extra-long barrel allows multiple crimp points for improved mechanical strength and electrical performance—ideal for high-stress applications such as high-voltage terminations, switchgear, and fuse connections. Manufactured from high-conductivity copper, it delivers consistent current flow and reduced resistance, helping maintain system efficiency across critical installations.

Built for Compliance, Strength, and Long-Term Reliability

Engineered from 99.95% pure copper and fully tin-plated for corrosion resistance, this lug is designed to perform in harsh indoor and outdoor environments. The solder-sealed palm prevents moisture ingress, improving long-term connection integrity and reducing the risk of electrical faults. Fully annealed for superior ductility, it ensures a secure crimp every time using standard hexagonal dies compatible with CABAC, Utilux, and Burndy tooling. Built to comply with major international standards including AS/NZS and IEC frameworks, it gives electricians confidence on compliant installations across residential, commercial, and industrial projects.

Designed for Faster, Cleaner Trade Installations

With its extended barrel design, installers gain more working room for crimping and heatshrink sealing, helping achieve a clean, airtight finish with less rework. This makes it especially useful for contractors working under tight deadlines where speed and reliability matter. Whether you’re completing switchboard terminations, service upgrades, or maintenance repairs, this lug helps streamline installation time while maintaining professional-grade results on every job.

Key Specs

• Nominal Conductor Size: 25mm²
• Stud Size: 12mm
• Internal Diameter: 7.1mm
• Material: 99.95%+ high conductivity copper
• Oxygen Content: Max 30 ppm
• Tensile Strength: 200 MPa
• Ductility: 40% (fully annealed)
• Plating: 99.9% pure tin (5–10 microns)
• Conductivity: 99.7% IACS
• Operating Temperature: -55°C to 155°C
• Compatible Tooling: CABAC, Utilux, Burndy hexagonal dies

Ideal For

• Switchboard and panel terminations
• High-voltage cable connections
• Industrial electrical installations
• Commercial construction wiring
• Maintenance and repair work
• Electrical contractors and licensed electricians
• Outdoor and moisture-prone environments
