CABAC CU LUG 240MM2 CABLE 12MM STUD CAL240LB-12 x 1/EACH

Description

Product Description

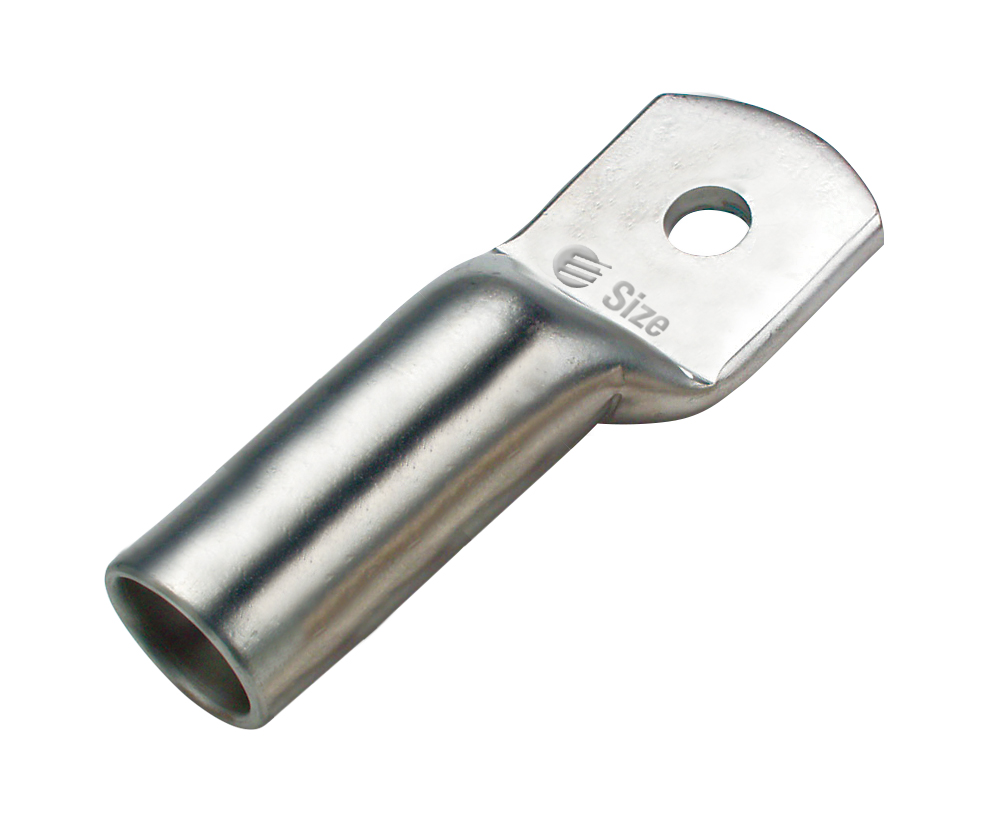

Copper Outdoor Style Long Barrel Lug



Copper Long Barrel Lugs are designed for external use. There is no window present and the palms are solder sealed to stop the ingress of water. The extra long barrel allows more crimps than usual, in high stress areas, such as high voltage terminations, drop out
fuses etc. The extra long barrel also allows more length for heatshrink sealing, to ensure a totally air tight seal.



The Long Barrel Outdoor Style Lug is designed for crimping with standard hexagon dies (also used for the standard range of copper lugs).



Made from 99.9%+ cu high conductivity copper, this lug provides the best electrical properties possible.



If a longer palm with two or more stud holes is required, please see the Long Palm Long Barrel Lug (LPB Range).

Standards and Compliance

AS4325 Part 1 Australia; IEC France, DIN/VDE Germany, JIS Japan, BS United Kingdom and NEMA USA

Test reports are available on request


Technical Data

Nominal Conductor (mm2): 240

ID Size (mm): 21.2

Stud (mm): 12



Conductive Material

Copper 99.95% pure

Oxygen content 30 p.p.m Max.

Tensile strength 200 MPa

Ductile rating 40%

Final metal state fully annealed



Electroplating Material

Tin 99.9% pure

Other metals lead + antimony

Thickness 5 -10 microns



General Electrical Properties

Total conductivity 99.7% IACS

Total resistivity: 1.738 micro-ohm cm



Operating Temperature

-55 to 155 deg C due to oxygen-free copper



Dimensional Specification

Tooling is interchangeable between CABAC, Utilux and Burndy
