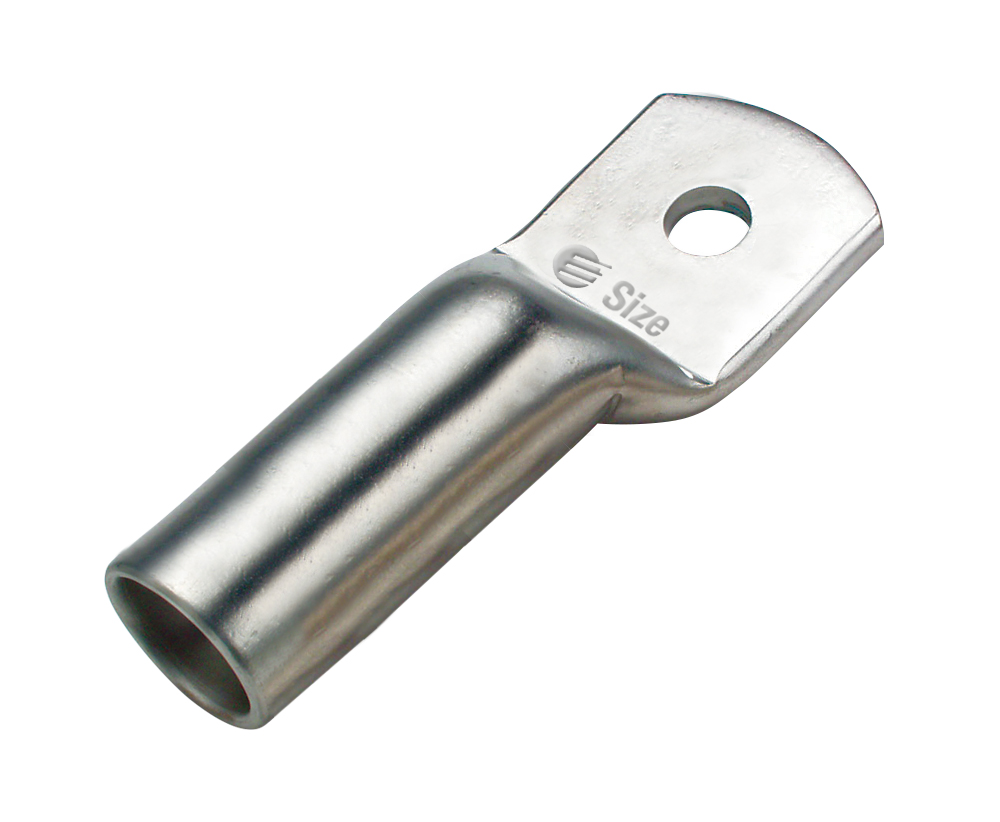

CABAC CU LUG 240MM2 CABLE 10MM STUD CAL240LB-10 x 1/EACH

Description

High-Performance Copper Termination for Demanding Electrical Work

The CABAC CU Lug 240mm² Cable 10mm Stud (CAL240LB-10) is engineered for reliable, high-conductivity terminations in heavy-duty electrical applications. Manufactured from 99.95%+ high conductivity copper, it delivers excellent electrical performance, ensuring minimal resistance and efficient current flow in critical installations.

The long barrel design allows for multiple crimps, providing superior mechanical strength and stability—especially important in high-stress environments such as high-voltage terminations, switchgear connections, and outdoor power distribution systems. With increased barrel length, installers also benefit from improved heatshrink coverage, helping achieve a secure, sealed, and long-lasting connection.

Built for electricians who need dependable performance on every termination, this lug supports consistent results across residential, commercial, and industrial projects.

Built for Reliability, Compliance, and Harsh Site Conditions

Designed with professional standards in mind, this copper lug meets a wide range of international compliance benchmarks including AS4325 Part 1 (Australia), IEC, DIN/VDE, JIS, BS, and NEMA requirements—making it suitable for regulated installations across multiple sectors.

The solder-sealed palm design helps prevent moisture ingress, improving long-term reliability in exposed or outdoor environments. With tin-plated finishing (99.9% pure tin), the lug offers enhanced corrosion resistance, supporting durability in challenging site conditions.

Its oxygen-free copper construction ensures stable performance across a wide operating temperature range of -55°C to 155°C, making it a dependable choice for infrastructure, industrial, and utility-grade applications where failure is not an option.

Trade-Friendly Design for Faster, Easier Installation

Designed with electricians and contractors in mind, the long barrel lug is compatible with standard hexagon crimp dies, ensuring seamless integration with existing CABAC, Utilux, and Burndy tooling. This interchangeability helps reduce downtime on site and avoids the need for specialised tooling changes.

The extended barrel also provides additional working length for heatshrink and insulation finishing, helping contractors complete terminations faster and with greater consistency. Whether you’re working on new installations or maintenance upgrades, this lug supports efficient workflows and reduces installation complexity.

For busy trade environments where time and reliability matter, this is a practical, no-fuss termination solution that keeps projects moving.

Key Specs

• Conductive Material: Copper 99.95%+ purity
• Oxygen Content: Max 30 p.p.m
• Tensile Strength: 200 MPa
• Ductility: 40%
• Metal State: Fully annealed
• Electroplating: 99.9% pure tin (5–10 microns)
• Conductivity: 99.7% IACS
• Resistivity: 1.738 micro-ohm cm
• Operating Temperature: -55°C to 155°C
• Compliance: AS4325 Part 1, IEC, DIN/VDE, JIS, BS, NEMA
• Tool Compatibility: CABAC, Utilux, Burndy interchangeable tooling

Ideal For

• Electrical contractors handling heavy-duty cable terminations
• Industrial and commercial switchboard installations
• High-voltage connection and distribution systems
• Outdoor and exposed electrical infrastructure
• Maintenance and upgrade works requiring reliable re-termination
• Utility and energy sector electrical applications
