CABAC CU. LUG. 150MM2 CABLE BELLMOUTH CAL150BM x 1/EACH

Description

Product Description

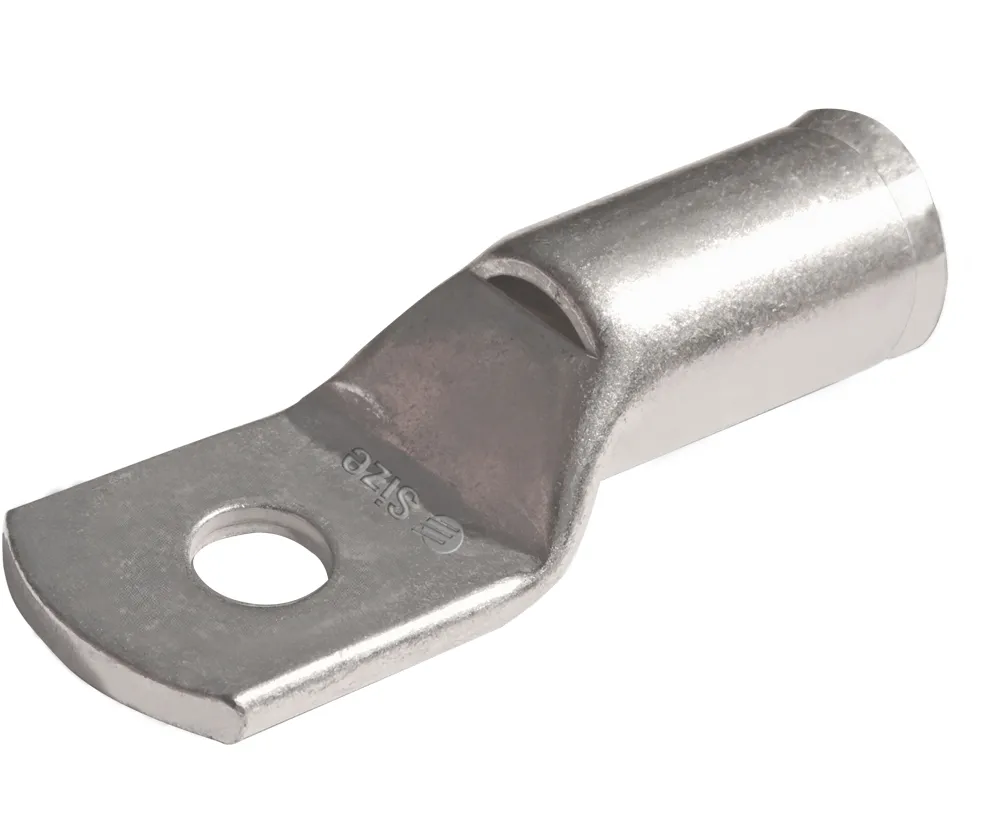

Copper Bell Mouth Lug for Stranded Cable



Designed to accommodate fine stranded flexible cable which tends to splay out after stripping. The special bell mouth funnel makes conductor insertion easy.



At the top end of the cable diameter range (around 150 to 240mm2) some manufacturers cables will not fit into the nominal lug. In this case CABAC recommends using one lug size up, and using the special crimping method described in the ‘Crimping Fine Stranded Cable’ fact sheet (see Useful Information above). More information is available from our Sales Team.



Please Note: Fine stranded cables need a higher crimping force so tools have to be de-rated from normal accepted crimping capacity.


Standards and Compliance

AS4325.1

Test reports are available on request


Technical Data

Conductive Material

Copper 99.95% pure

Oxygen content 30 p.p.m Max.

Tensile strength 200 MPa

Ductile rating 40%

Final metal state fully annealed



Electroplating Material

Tin 99.9% pure

Other metals lead + antimony

Thickness 5 -10 microns



General Electrical Properties

Total conductivity 99.7% IACS

Total resistivity: 1.738 micro-ohm cm



Operating Temperature

-55 to 155 deg C due to oxygen-free copper



Dimensional Specification

Tooling is interchangeable between CABAC, Utilux and Burndy
