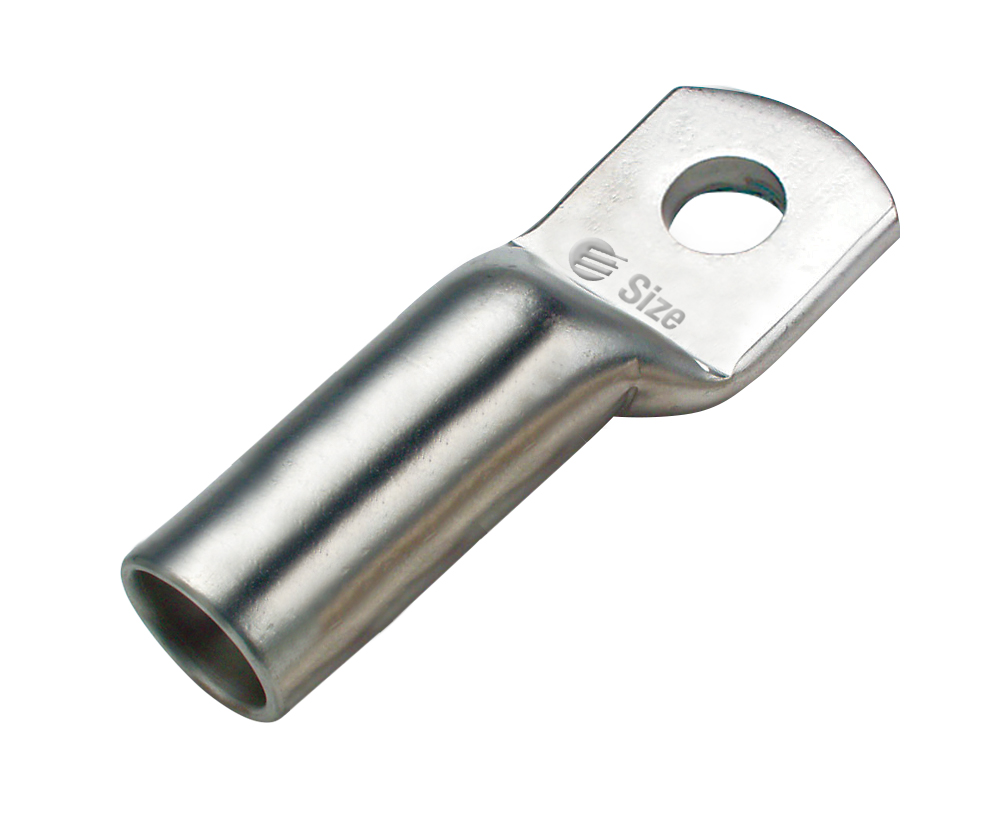

CABAC CU LUG 150MM2 CABLE 12MM STUD CAL150LB-12 x 1/EACH

Description

High-Performance Copper Connectivity for Demanding Installations

The CABAC CAL150LB-12 Copper Long Barrel Lug (150mm², 12mm stud) is engineered for high-performance electrical terminations where reliability under load is critical. Manufactured from 99.95% high-conductivity copper, this lug delivers excellent electrical performance with 99.7% IACS conductivity, helping maintain efficient current flow in demanding commercial and industrial applications.

The extra-long barrel design allows multiple crimps for superior mechanical strength, making it ideal for high-vibration and high-stress environments such as high-voltage terminations, switchgear connections, and heavy-duty distribution systems. With increased barrel length, installers also gain more surface area for secure heatshrink sealing—helping achieve a clean, durable, and professional finish every time.

For electricians working under tight deadlines, this lug ensures consistent crimp performance using standard hexagon dies compatible with CABAC, Utilux, and Burndy tooling systems.

Fully Compliant, Durable & Built for Long-Term Reliability

Designed to meet stringent international standards including AS4325 Part 1 (Australia), IEC, DIN/VDE, JIS, BS, and NEMA, this lug is built for compliance across a wide range of electrical installations. Whether you’re working on infrastructure upgrades, commercial builds, or industrial maintenance, this product ensures confidence in every termination.

The lug features a tinned copper finish (99.9% pure tin plating) for enhanced corrosion resistance, helping protect connections in both indoor and outdoor environments. With an operating temperature range of -55°C to 155°C, it performs reliably in harsh site conditions without compromising electrical integrity.

Its fully annealed copper construction provides excellent ductility and crimp performance, reducing the risk of cracking or poor compression during installation—supporting safer, longer-lasting electrical systems.

Trade-Friendly Design for Faster, Cleaner Installations

Built with electricians and contractors in mind, the long barrel design of the CAL150LB-12 improves installation efficiency by giving more working space for crimps and sealing. This reduces rework, improves termination quality, and helps keep projects moving on schedule.

The solder-sealed palm design prevents moisture ingress, making it suitable for outdoor and exposed installations where long-term reliability is essential. Combined with its compatibility across common industry tooling, it allows trades to work faster without needing specialized equipment changes.

For contractors managing multiple sites or tight project timelines, this lug helps streamline procurement and installation—reducing downtime and ensuring consistent results across every job.

Key Specs

• Nominal Conductor: 150mm²
• ID Size: 16.7mm
• Stud Size: 12mm
• Material: 99.95% high-conductivity copper
• Oxygen Content: 30 p.p.m max
• Tensile Strength: 200 MPa
• Ductility: 40%
• Metal State: Fully annealed
• Plating: 99.9% tin
• Plating Thickness: 5–10 microns
• Electrical Conductivity: 99.7% IACS
• Resistivity: 1.738 micro-ohm cm
• Operating Temperature: -55°C to 155°C
• Standards: AS4325 Part 1, IEC, DIN/VDE, JIS, BS, NEMA
• Tooling Compatibility: CABAC, Utilux, Burndy interchangeable

Ideal For

• Industrial electrical terminations
• High-voltage cable connections
• Switchboard and distribution installations
• Utility and infrastructure projects
• Commercial electrical fit-outs
• Maintenance and repair works
• Outdoor and moisture-exposed connections
