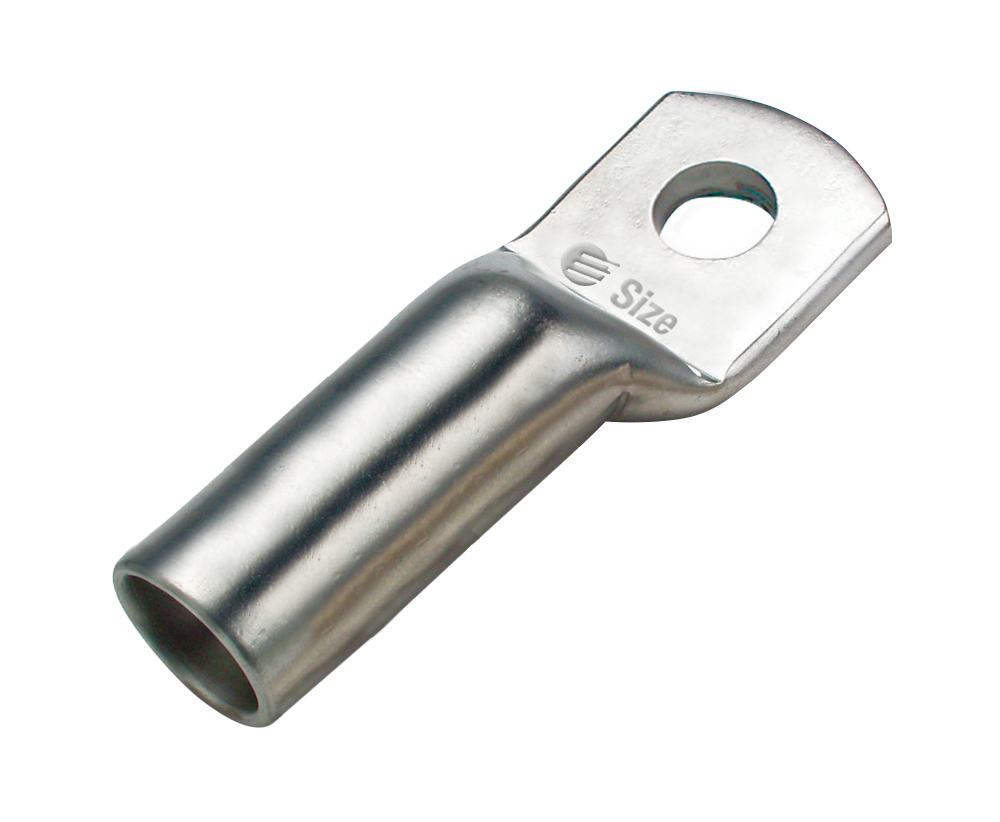

CABAC CU LUG 120MM2 CABLE 12MM STUD CAL120LB-12 x 1/EACH

Description

Performance That Handles High-Demand Electrical Loads

When performance matters on site, this CABAC copper lug delivers the conductivity and mechanical strength needed for critical power connections. Manufactured from 99.95%+ high conductivity copper, it ensures minimal resistance and maximum current flow for heavy-duty cable terminations up to 120mm².

The extra-long barrel design allows for multiple crimp points, giving electricians stronger mechanical retention in high-stress environments such as switchboards, high-voltage terminations, and industrial power distribution systems. This also improves strain relief, helping reduce failure risk in vibration-prone or load-intensive installations.

Whether you’re working on commercial infrastructure or industrial maintenance, this lug is built to keep connections tight, efficient, and electrically sound under pressure.

Built for Compliance and Long-Term Reliability

This long barrel lug is engineered to meet strict international standards, including AS4325 Part 1, IEC, DIN/VDE, BS, JIS, and NEMA requirements—giving you confidence it meets Australian and global compliance expectations on regulated projects.

The tin-plated finish (99.9% pure tin) provides enhanced corrosion resistance, making it suitable for demanding indoor and outdoor environments. With sealed palm construction designed to reduce moisture ingress, it supports longer service life in exposed or harsh conditions.

Rated for operating temperatures from -55°C to 155°C, this lug maintains stability in extreme environments while the fully annealed copper construction ensures consistent ductility and safe crimp performance every time.

Trade-Friendly Design for Faster, Cleaner Installations

Designed with electricians in mind, this lug is fully compatible with standard hex crimping dies, making it easy to integrate into existing CABAC, Utilux, or Burndy tooling setups without extra changeover hassle.

The extended barrel gives installers more flexibility for heat shrink application, helping achieve secure, airtight, and professional-grade terminations in fewer reworks. That means faster installs, cleaner finishes, and reduced downtime on site.

For contractors managing tight project schedules, this is a dependable termination solution that streamlines installation without compromising on safety or compliance.

Key Specs

• Nominal Conductor: 120mm²
• ID Size: 15.6mm
• Stud Size: 12mm
• Conductive Material: 99.95% pure copper
• Oxygen Content: Max 30 p.p.m
• Tensile Strength: 200 MPa
• Ductility: 40%
• Metal State: Fully annealed
• Plating: 99.9% tin
• Plating Thickness: 5–10 microns
• Conductivity: 99.7% IACS
• Resistivity: 1.738 micro-ohm cm
• Operating Temperature: -55°C to 155°C
• Tooling Compatibility: CABAC, Utilux, Burndy

Ideal For

• Electrical contractors handling commercial and industrial switchboards
• High-current cable termination and power distribution work
• Infrastructure and utility installations
• Maintenance and repair of heavy electrical systems
• Projects requiring compliant, high-reliability copper terminations
