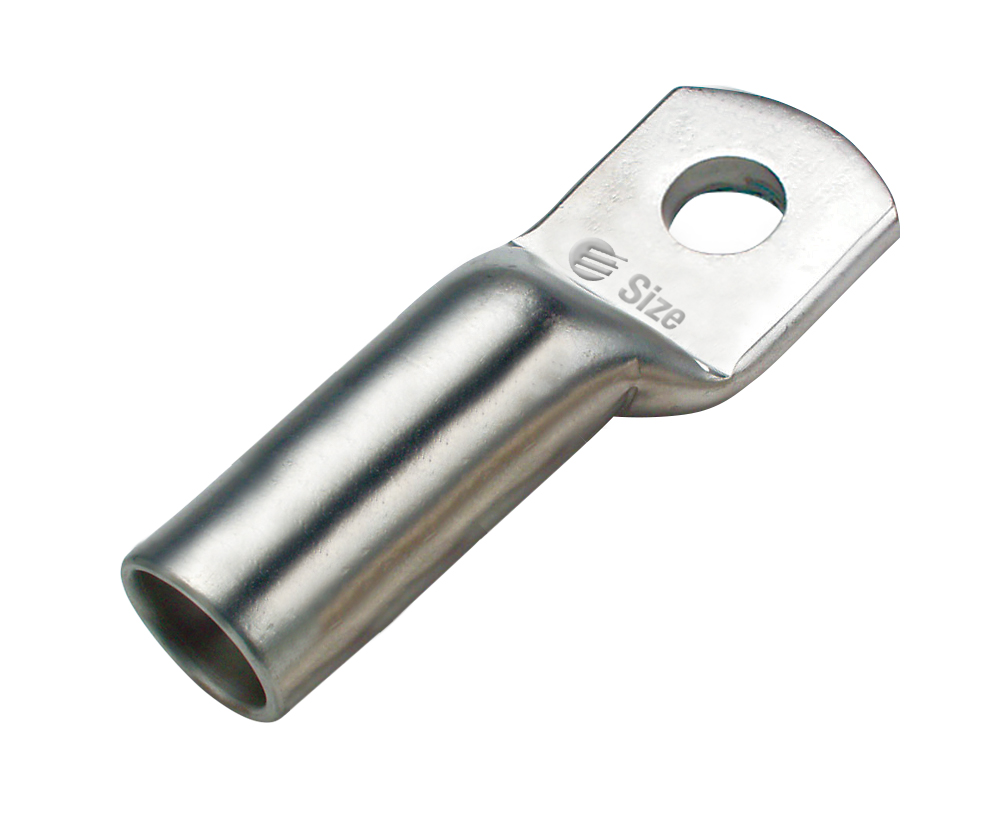

CABAC CU LUG 120MM2 CABLE 10MM STUD CAL120LB-10 x 1/EACH

Description

Built for High-Performance Electrical Terminations

When you’re working on high-load electrical systems, termination quality matters. The CABAC 120mm² copper long barrel lug is engineered to deliver strong, stable, and low-resistance connections in demanding environments such as switchboards, industrial installations, and high-voltage terminations.

Its extra-long barrel design allows for multiple crimps, giving electricians better mechanical strength and improved electrical contact. This is especially useful in high-stress applications like drop-out fuses and heavy-duty power distribution, where connection failure is not an option.

The extended barrel also gives more room for heatshrink application, helping you achieve a clean, sealed finish that improves insulation integrity and reduces long-term maintenance issues on site.

Built for Compliance, Durability, and Harsh Conditions

Manufactured from 99.9%+ high conductivity copper, this lug delivers excellent electrical performance with minimal resistance, ensuring efficient current flow across your installation.

The palms are solder sealed to prevent water ingress, making this lug suitable for external and exposed environments where moisture protection is critical. Combined with tin plating and oxygen-controlled copper composition, it is designed to withstand harsh operating conditions without compromising performance.

It complies with major international standards including AS4325 Part 1, IEC, DIN/VDE, JIS, BS, and NEMA, giving you confidence it meets strict industry requirements across Australian and global installations.

With an operating temperature range of -55°C to 155°C, it’s built for reliability in both extreme heat and cold, ensuring long-term performance in commercial and industrial projects.

Designed for Trade Efficiency and Easy Installation

This long barrel lug is made to work seamlessly with standard hexagon crimp dies, meaning no special tooling changes are required. Tooling compatibility across CABAC, Utilux, and Burndy systems also helps streamline job setup and reduce downtime on site.

For electricians and contractors managing tight project schedules, this means faster terminations, fewer delays, and a consistent crimping process across multiple installations.

Whether you’re working on large commercial switchboards or industrial power systems, this lug helps improve installation speed while maintaining professional-grade termination quality every time.

Key Specs

• Nominal Conductor Size: 120mm²
• Stud Size: 10mm
• Copper Purity: 99.95%
• Oxygen Content: Max 30 p.p.m
• Tensile Strength: 200 MPa
• Ductile Rating: 40%
• Conductivity: 99.7% IACS
• Resistivity: 1.738 micro-ohm cm
• Operating Temperature: -55°C to 155°C
• Barrel Type: Long barrel, solder sealed palms
• Electroplating: Tin (99.9% pure), 5–10 microns

Ideal For

• Licensed electricians and electrical contractors
• Industrial and commercial switchboard installations
• High-voltage terminations and power distribution systems
• Drop-out fuse connections
• Outdoor and moisture-exposed electrical setups
• Maintenance and repair of heavy electrical infrastructure
