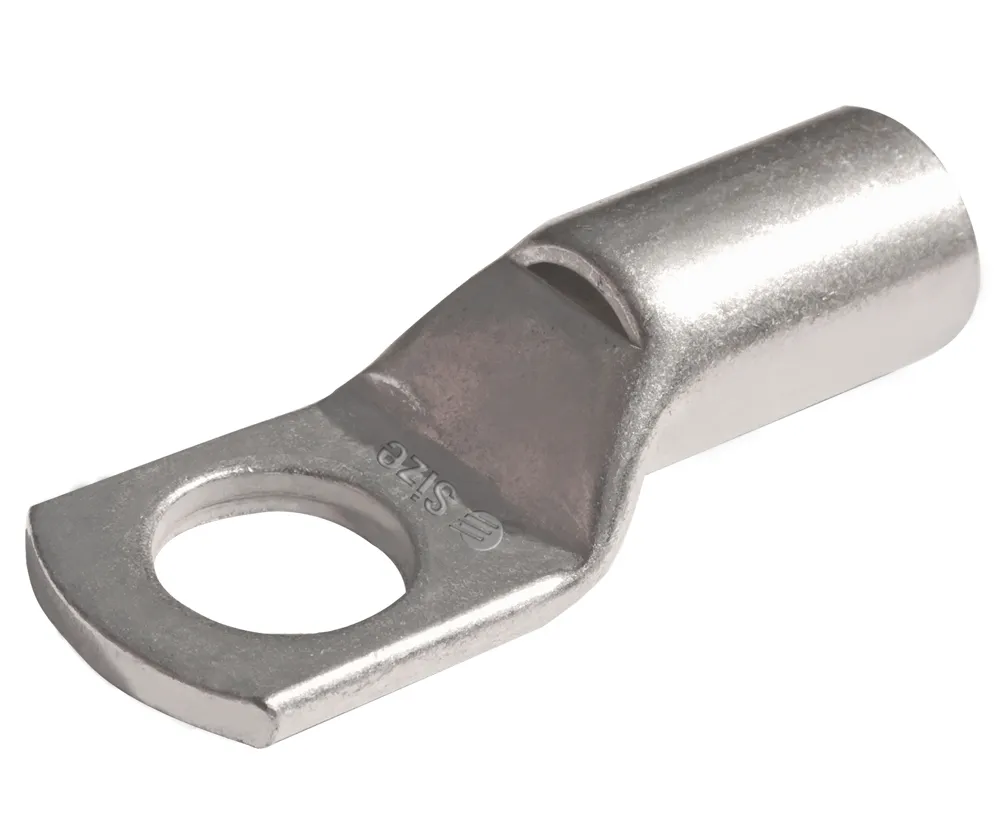

CABAC CU LUG 10MM2 CABLE 10MM STUD CAL10-10 x 100/BOX

Description

High-Conductivity Performance for Clean, Efficient Connections

Built for consistent electrical performance, the CABAC copper crimp lug delivers reliable conductivity where it counts. Manufactured from 99.95% pure annealed copper, it ensures optimal current flow with minimal resistance—ideal for maintaining efficiency across residential, commercial, and industrial installations.

The fully annealed construction improves ductility, making crimping smoother and reducing the risk of cracking under pressure. Combined with a high conductivity rating of 99.7% IACS, this lug helps maintain stable electrical performance across demanding applications.

For electricians working to tight deadlines, this means faster terminations, fewer reworks, and consistent results on every connection.

Proven Reliability with Global Compliance Standards

Designed to meet a wide range of international and Australian standards, these copper lugs support compliance across multiple project types. Conformance with AS4325 Part 1 and recognised global standards (IEC, DIN/VDE, JIS, BS, NEMA) ensures peace of mind when working on regulated sites or commercial installations.

The tin-plated finish (5–10 microns thickness) provides excellent corrosion resistance, extending the life of connections in harsh or outdoor environments. This added protection helps reduce maintenance issues and prevents costly downtime caused by connection failure.

Approved by major Australian electrical authorities, these lugs are trusted across infrastructure, utilities, and construction projects—making them a dependable choice for professional contractors.

Trade-Ready Convenience for Fast Installations

Designed with trade efficiency in mind, the CAL10-10 lug is fully compatible with standard Australian crimping tools, including interchangeable tooling with CABAC, Utilux, and Burndy systems. This eliminates the need for specialised equipment and keeps your workflow streamlined on-site.

Supplied in a bulk box of 100, it’s ideal for electricians managing multiple jobs or larger installations, ensuring you always have reliable terminations on hand. Whether you’re wiring switchboards, terminating cables, or handling maintenance work, these lugs help reduce time spent sourcing parts and improve job turnaround.

Backed by a trusted trade supply network, this product supports fast procurement, consistent availability, and dependable performance—helping you stay on schedule and within budget.

Key Specifications

• Nominal Conductor: 10mm²
• Stranding: 7/1.35
• Internal Diameter: 4.7mm
• Stud Size: 10mm
• Conductive Material: Copper (99.95% pure)
• Electroplating: Tin (99.9% pure), 5–10 microns thickness
• Tensile Strength: 200 MPa
• Ductility: 40%
• Conductivity: 99.7% IACS
• Resistivity: 1.738 micro-ohm cm
• Quantity per Box: 100

Ideal For

• Licensed electricians handling cable terminations
• Switchboard and distribution board wiring
• Commercial and industrial electrical installations
• Maintenance and repair work
• Projects requiring compliant, corrosion-resistant connections
