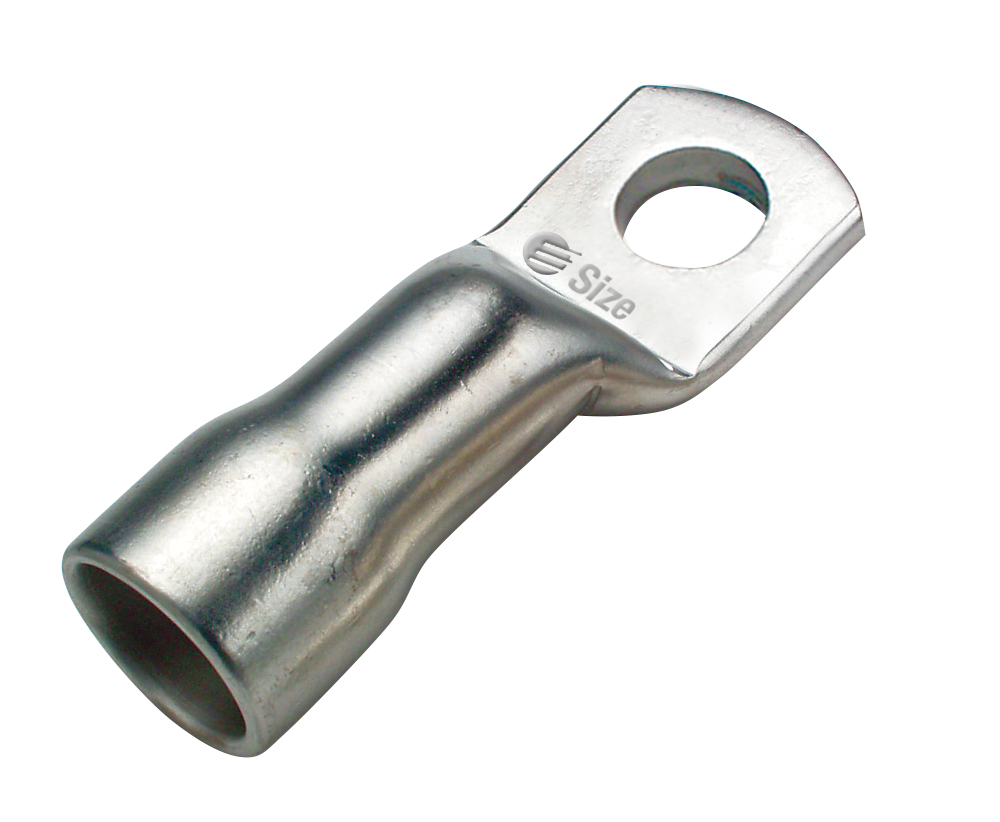

CABAC CU DOUBLE GRIP LUG 35MM2 CABLE 12MMSTUD CAL35-12DG x 1/EACH

Description

Built for High-Performance Terminations in Demanding Conditions

The CABAC Copper Double Grip Lug is designed for secure, high-vibration electrical terminations where reliability is critical. Built for use with 35mm² flexible cable and a 12mm stud connection, it delivers a strong, stable crimp that helps maintain electrical integrity even in challenging environments. The double grip design ensures both conductor and insulation are firmly supported, reducing movement and improving long-term connection performance on site. Ideal for electricians working on industrial, commercial, and infrastructure projects where failure is not an option.

Engineered for Compliance, Strength, and Electrical Reliability

Manufactured from 99.95% pure copper and tin-plated for corrosion resistance, this lug is built to meet stringent international standards including AS/NZS, IEC, DIN/VDE, BS, and UL/NEMA requirements. The fully annealed copper construction ensures excellent conductivity and durability, while the flared barrel design provides added insulation support for flexible cable applications. With a wide operating temperature range from -55°C to 155°C, it’s suitable for demanding Australian conditions across indoor and outdoor installations.

Trade-Focused Design for Faster, Smarter Installations

Designed with electricians and contractors in mind, the CABAC double grip lug is compatible with standard Australian tooling and interchangeable with CABAC, Utilux, and Burndy dies. This reduces downtime on site by allowing seamless integration into existing crimping setups. Whether you’re working on switchboards, industrial panels, or heavy-duty cable terminations, this lug helps streamline installation, improve consistency, and keep projects moving without unnecessary delays or rework.

Key Specs

• Nominal Cable Size: 35mm²
• Stud Size: 12mm
• Barrel Inner Diameter: 8.5mm
• Flare Inner Diameter: 11.9mm
• Material: 99.95% pure copper
• Plating: Tin (99.9% purity, 5–10 microns)
• Conductivity: 99.7% IACS
• Operating Temperature: -55°C to 155°C

Ideal For

• Industrial electrical installations
• Commercial switchboard terminations
• High-vibration equipment connections
• Flexible cable termination jobs
• Maintenance and repair work
• Electrical contractors and licensed electricians
