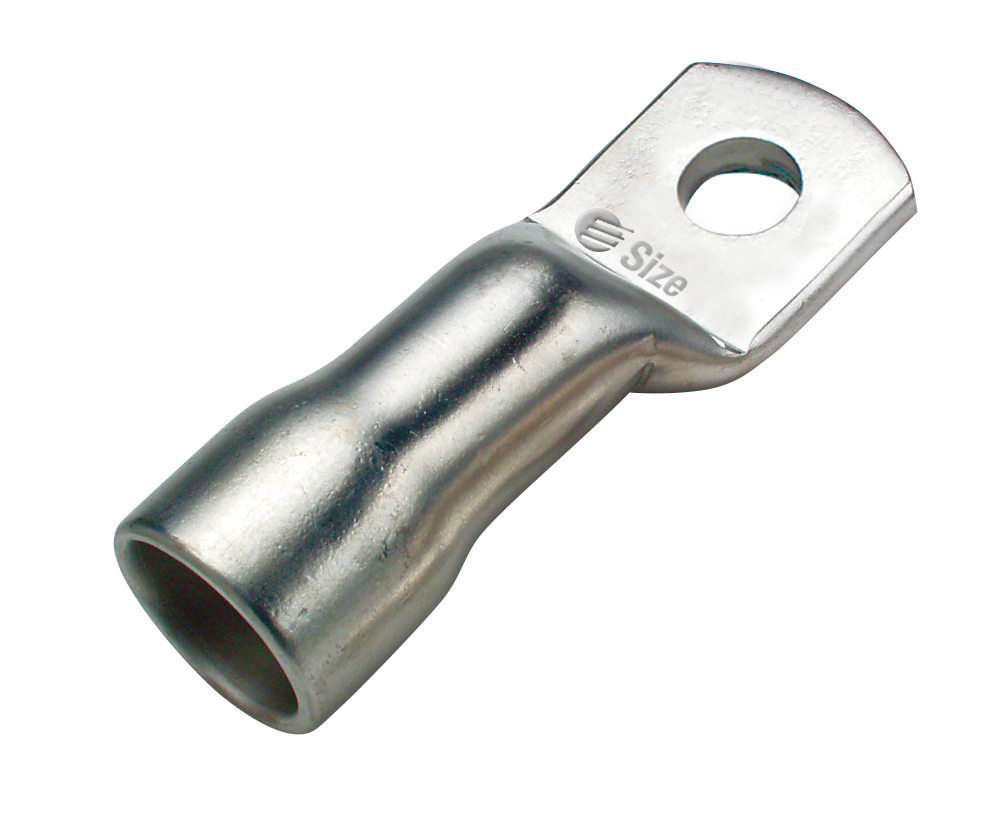

CABAC CU DOUBLE GRIP LUG 120MM2 CABLE 12MMSTD CAL120-12DG x 1/EACH

Description

High-Performance Termination for Demanding Electrical Loads

The CABAC Copper Double Grip Lug 120mm² is engineered for reliable, high-integrity cable terminations in heavy-duty electrical applications. Designed specifically for 120mm² flexible conductors with a 12mm stud connection, this lug delivers a secure crimp that helps maintain strong electrical continuity even in high-vibration environments. The double grip flared barrel design ensures both conductor and insulation are firmly supported, reducing movement and improving long-term joint stability on site. Built for trade professionals who need dependable terminations that hold up under pressure, this lug helps minimise rework and keeps installations moving efficiently.

Compliance, Safety & Long-Term Reliability You Can Trust

Manufactured from high-purity copper and tin-plated for enhanced corrosion resistance, this lug is built to perform in demanding Australian conditions. It is designed in accordance with key international standards including AS/NZS, IEC, DIN/VDE, BS, and UL requirements, ensuring suitability across a wide range of compliant electrical installations. With high conductivity and excellent mechanical strength, it supports safe, consistent performance in critical power distribution and heavy load connections. Operating across a wide temperature range, it’s built for durability where reliability cannot be compromised—helping electricians and contractors meet compliance requirements while reducing installation risk.

Trade Efficiency & Installer-Friendly Design

Designed with standard Australian tooling compatibility, this double grip lug integrates smoothly into existing crimping workflows, helping electricians get the job done without unnecessary tooling changes. The flared barrel design supports flexible cable insulation while allowing practical crimping adjustments based on cable type and insulation thickness. Suitable for use with interchangeable tooling systems including CABAC, Utilux, and Burndy, it helps streamline inventory and reduce on-site complexity. Ideal for fast-paced commercial and industrial projects, this lug supports efficient installation practices, reduces downtime, and keeps electrical work progressing on schedule.

Key Specs

• Nominal Cable Size: 120mm²
• Stud Size: 12mm
• Barrel Inner Diameter: 16.2mm
• Flare Inner Diameter: 21mm
• Material: 99.95% pure copper
• Plating: 99.9% tin-plated (5–10 microns)
• Conductivity: 99.7% IACS
• Operating Temperature: -55°C to 155°C

Ideal For

• Industrial power distribution installations
• Commercial switchboard and panel terminations
• High-vibration electrical environments
• Heavy-duty cable termination work
• Licensed electricians and electrical contractors
• Maintenance and facilities management teams
• Infrastructure and construction electrical projects
