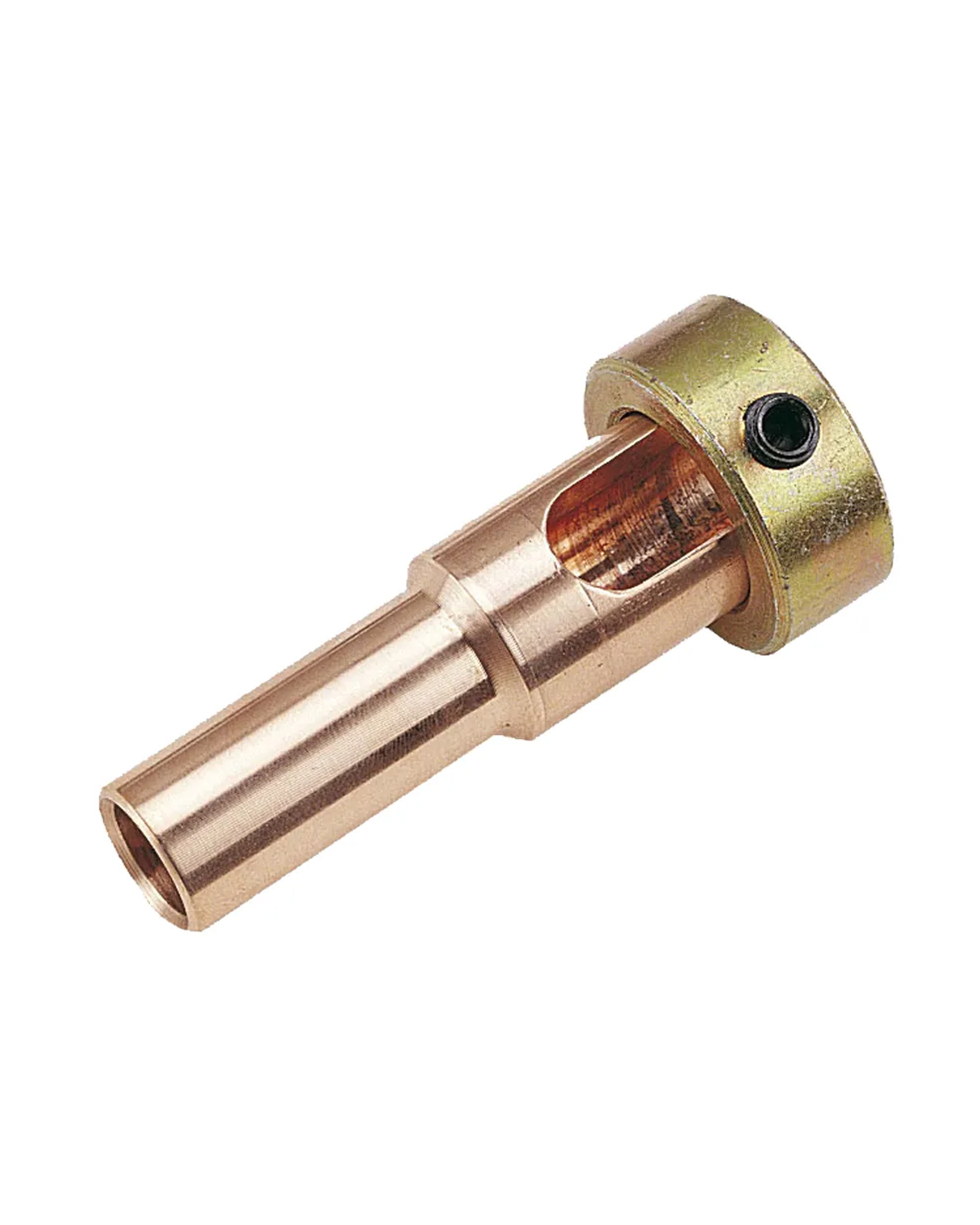

CABAC COPPER SWITCHGEACHR CONN 50MM2 CSC50/12K x 1/EACH

Description

High-Conductivity Performance for Critical Connections

When reliability under load matters, the CABAC Copper Switchgear Connector 50mm² delivers consistent, high-performance conductivity. Manufactured from 99.9%+ high-conductivity copper, this connector ensures efficient current transfer between your copper conductor and 12mm switchgear stem. The precision-machined lug and secure clamping collar create a solid mechanical and electrical connection, helping reduce energy loss and heat build-up on demanding commercial and industrial installations.

Designed to handle operating temperatures from -55°C to 155°C, it performs reliably across a wide range of site conditions—ideal for switchboards, panels, and heavy-duty infrastructure where downtime isn’t an option.

Built for Compliance, Safety & Long-Term Reliability

Confidence on site starts with compliant, trade-grade components. This CABAC switchgear connector meets multiple international standards, including AS4325 Part 1, IEC, DIN/VDE, JIS, BS, and UL/NEMA—giving you peace of mind across Australian and global project specs.

The zinc-plated steel clamping collar is engineered with a cut design to prevent eddy currents, reducing unnecessary heat generation and improving long-term connection stability. Combined with fully annealed copper construction and high tensile strength, this connector is built to maintain integrity under mechanical stress and electrical load—minimising maintenance issues and call-backs.

Trade-Ready Design for Faster Installs

Time on site is money. This connector is designed to work seamlessly with standard Australian crimping tools, making installation quick and hassle-free without the need for specialised equipment. Tooling compatibility across CABAC, Utilux, and Burndy further streamlines your workflow and reduces tool-change downtime.

Whether you’re working on switchboard upgrades, commercial fit-outs, or maintenance jobs, this connector supports fast, efficient terminations so you can stay on schedule. Backed by a trusted trade supply network, it’s a dependable choice for electricians who need consistent stock availability and straightforward installation.

Key Specs

• Nominal Conductor: 50mm²
• Stranding: 19/1.78
• Switchgear Stem Diameter: 12mm
• Conductive Material: Copper (99.95% pure)
• Oxygen Content: 30 p.p.m. max
• Tensile Strength: 200 MPa
• Ductile Rating: 40%
• Metal State: Fully annealed
• Operating Temperature: -55°C to 155°C
• Conductivity: 99.7% IACS
• Resistivity: 1.738 micro-ohm cm
• Plating: Not supplied plated
• Standards: AS4325 Part 1, IEC, DIN/VDE, JIS, BS, UL/NEMA
• Tooling Compatibility: CABAC, Utilux, Burndy

Ideal For

• Switchboard and switchgear terminations
• Commercial and industrial electrical installations
• Maintenance and upgrade projects
• Electrical contractors requiring compliant connectors
• Fast, repeatable crimp applications on-site
