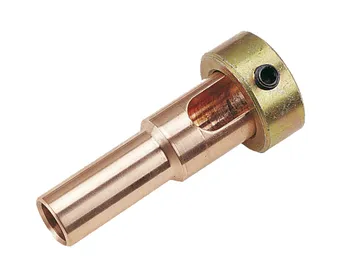

CABAC COPPER SWITCHGEACHR CONN 25MM2 CSC25/12K x 1/EACH

Description

High-Conductivity Performance for Secure Terminations

When you’re working on switchgear, you need a connector that delivers consistent current transfer without compromise. The CABAC copper switchgear connector is manufactured from 99.9%+ high-conductivity copper, ensuring efficient electrical flow and minimal resistance at the connection point.

Designed specifically for 25mm² copper conductors, this connector creates a solid mechanical and electrical bond onto a 12mm switchgear stem. The precision-machined lug and clamping system provide strong contact pressure, helping reduce heat build-up and improving overall system performance—especially in demanding commercial and industrial environments.

Proven Reliability with Global Standards Compliance

Built for serious trade use, this connector meets a wide range of international standards including AS4325, IEC, DIN/VDE, JIS, BS, and UL/NEMA. That means confidence on-site, whether you’re working on local installations or projects with strict compliance requirements.

The zinc-plated steel clamping collar is engineered with a cut to prevent eddy currents, reducing unwanted heat generation and improving long-term reliability. Combined with fully annealed copper construction and a wide operating temperature range (-55°C to 155°C), this connector is built to perform in harsh electrical conditions without failure.

Trade-Friendly Design for Faster Installations

Time on site matters. This CABAC switchgear connector is designed for quick, straightforward installation using standard Australian crimping tools—no special gear required. Tooling compatibility with CABAC, Utilux, and Burndy also means less downtime switching between systems.

With a robust grub screw clamping mechanism, you get a secure fit with minimal effort, helping you move faster through switchboard builds, upgrades, or maintenance work. Backed by a trusted trade-grade brand and consistent stock availability, it’s a reliable choice for contractors who need dependable supply and hassle-free procurement.

Key Specs

• Nominal Conductor: 25mm²
• Stranding: 19/1.35 (metric)
• Switchgear Stem Diameter: 12mm
• Material: 99.95% pure copper
• Oxygen Content: 30 p.p.m. max
• Tensile Strength: 200 MPa
• Ductility: 40%
• Metal State: Fully annealed
• Operating Temperature: -55°C to 155°C
• Conductivity: 99.7% IACS
• Resistivity: 1.738 micro-ohm cm
• Plating: Not plated

Ideal For

• Switchboard assembly and upgrades
• Commercial and industrial electrical installations
• Terminating copper conductors onto switchgear stems
• Maintenance and retrofit projects
• Licensed electricians and electrical contractors
