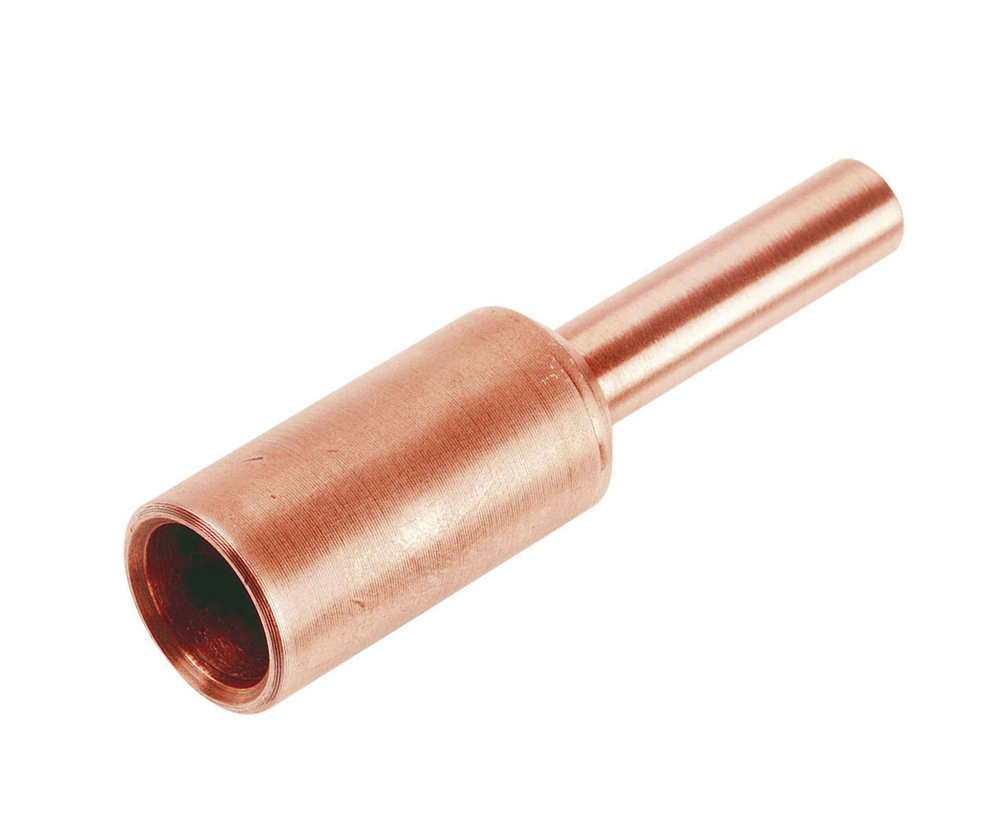

CABAC COPPER STALK 95MM2 12MM STALK. CS95/12 x 1/EACH

Description

Performance Built for Demanding Electrical Connections

When reliability and current performance matter, this CABAC copper stalk delivers consistent, high-grade conductivity for professional electrical terminations. Designed for 95mm² conductors with a 12mm stalk, it provides a solid, stable connection point for crimped lug applications in demanding electrical environments.

Manufactured from 99.95% pure copper with excellent electrical properties, this stalk ensures minimal resistance and efficient current flow. With 99.7% IACS conductivity and low resistivity performance, it supports clean energy transfer and reduces losses across critical circuits. For electricians working on time-sensitive installations, that means dependable performance every time a connection is made.

Compliance, Strength, and Long-Term Reliability

Built to meet international and Australian expectations, this copper stalk aligns with AS4325 Part 1 and other global standards including IEC, DIN/VDE, JIS, BS, and UL/NEMA. It’s engineered for trade environments where compliance is non-negotiable and safety is paramount.

The material is fully annealed copper with strong mechanical characteristics, including a tensile strength of 200 MPa and ductility rating of 40%. It performs reliably across extreme conditions with an operating temperature range from -55°C to 155°C, making it suitable for both indoor switchrooms and harsh industrial environments.

Designed for compatibility with standard Australian tooling, this stalk integrates smoothly into existing crimping systems, helping reduce installation errors and ensuring consistent termination quality across jobs.

Trade Efficiency and Installation Flexibility

For busy electricians and contractors, speed and simplicity on-site make all the difference. This copper stalk range is designed to work seamlessly with standard hexagon die crimping systems used for equivalent copper lugs, helping streamline installation without requiring specialised tooling changes.

It is also interchangeable with tooling systems from Cable Accessories, Utilux, and Burndy, making it a practical choice across mixed-site requirements. With custom variants available on request, it supports project flexibility for commercial, industrial, and infrastructure work.

Backed by wholesale supply support through iSupply Electrical, trades benefit from fast access to essential components, helping reduce downtime and keep projects moving without delays.

Key Specifications

• Nominal conductor size: 95mm²
• Stalk size: 12mm
• Conductive material: Copper (99.95% pure)
• Oxygen content: 30 p.p.m max
• Tensile strength: 200 MPa
• Ductility rating: 40%
• Final state: Fully annealed
• Operating temperature: -55°C to 155°C
• Electrical conductivity: 99.7% IACS
• Resistivity: 1.738 micro-ohm cm
• Plating: Not supplied plated
• Standards compliance: AS4325 Part 1, IEC, DIN/VDE, JIS, BS, UL/NEMA
• Tooling compatibility: Standard Australian hexagon die tooling; interchangeable with Cable Accessories, Utilux, Burndy

Ideal For

• Licensed electricians and electrical contractors
• Industrial and commercial electrical installations
• Power distribution and termination works
• Switchboard and panel manufacturing
• Maintenance and upgrade projects
• Infrastructure and construction electrical works
