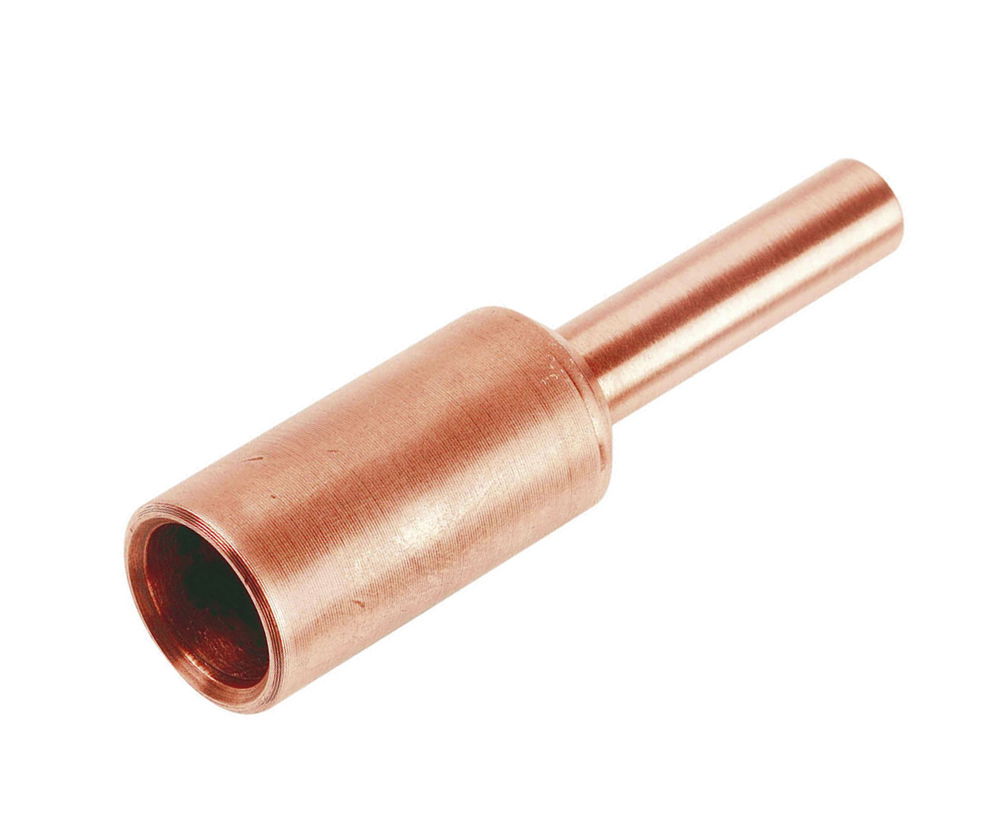

CABAC COPPER STALK 185MM2 16MM STALK CS185/16 x 1/EACH

Description

High-Conductivity Copper Stalk for Efficient Power Transfer

When you need dependable current flow on demanding installations, this CABAC copper stalk delivers consistent performance. Manufactured from 99.95% pure copper with excellent conductivity (99.7% IACS), it ensures minimal resistance and efficient energy transfer across your connections. The fully annealed construction improves flexibility and workability, making it easier to handle on-site while maintaining strong mechanical integrity. Designed to suit 185mm² conductors with a 16mm stalk, it’s a practical choice for high-load applications where performance matters.

Built for Compliance and Long-Term Reliability

Confidence on the job starts with compliant, proven components. This copper stalk is manufactured in line with recognised international standards including AS4325 Part 1, IEC, DIN/VDE, JIS, BS, and UL/NEMA. With a wide operating temperature range of -55°C to 155°C, it performs reliably across harsh Australian conditions—whether you’re working in industrial environments or exposed outdoor installations. The high-purity copper and controlled oxygen content support durability and long service life, reducing the risk of premature failure and costly rework.

Trade-Ready Compatibility and Flexible Supply

Designed with the trade in mind, this CABAC copper stalk is compatible with standard Australian hexagon die crimping tools, making integration into your existing workflow straightforward. Interchangeable tooling compatibility with brands like Cable Accessories, Utilux, and Burndy helps minimise downtime and eliminates the need for specialised equipment. For projects requiring non-standard configurations, custom stalk variants can be manufactured to order—giving contractors the flexibility to meet specific job requirements without delays.

Key Specs

• Nominal Conductor: 185mm²
• Stalk Size: 16mm
• Conductive Material: Copper (99.95% pure)
• Oxygen Content: 30 p.p.m. max
• Tensile Strength: 200 MPa
• Ductile Rating: 40%
• Final Metal State: Fully annealed
• Operating Temperature: -55°C to 155°C
• Total Conductivity: 99.7% IACS
• Total Resistivity: 1.738 micro-ohm cm
• Plating: Not supplied plated
• Standards: AS4325 Part 1, IEC, DIN/VDE, JIS, BS, UL/NEMA
• Tooling Compatibility: Cable Accessories, Utilux, Burndy

Ideal For

• Licensed electricians handling high-current terminations
• Commercial and industrial electrical installations
• Switchboard and distribution board builds
• Maintenance and upgrade works requiring reliable copper connections
• Projects requiring compatibility with standard crimping tooling
• Custom electrical fabrication jobs needing adaptable components
