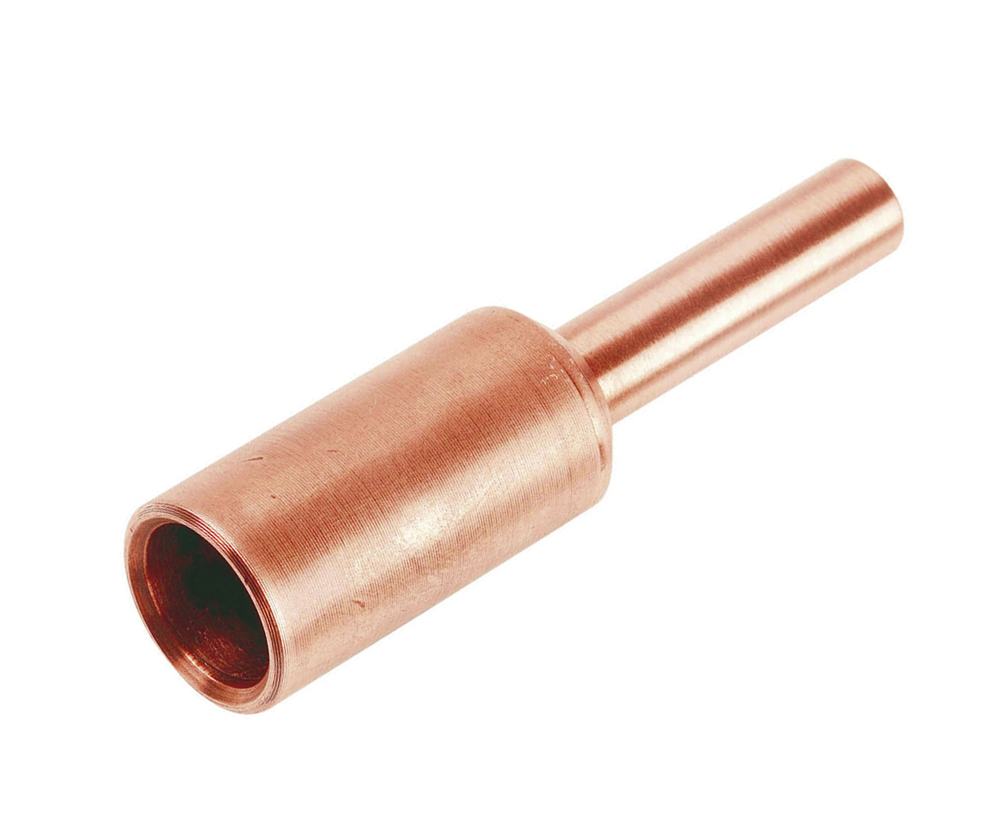

CABAC COPPER STALK 185MM2 10MM STALK CS185/10 x 1/EACH

Description

High-Conductivity Performance for Demanding Electrical Connections

Built for dependable current transfer and long-term stability, this copper stalk is engineered from 99.95% pure copper to deliver excellent conductivity and mechanical strength on site. With a nominal conductor size of 185mm², it’s suited for heavy-duty electrical terminations where performance cannot be compromised.

Its fully annealed metal state ensures improved ductility for clean, controlled crimping using standard hexagon dies. This helps electricians achieve consistent terminations with reduced rework, supporting faster installation times across residential, commercial, and industrial projects.

Designed to perform in a wide operating range from -55°C to 155°C, it maintains stability even in harsh site conditions—helping reduce connection failures and unplanned maintenance.

Compliance & Electrical Reliability You Can Trust

This copper stalk is manufactured to meet multiple international standards, making it a reliable choice for compliant installations across a wide range of project requirements. It aligns with AS4325 Part 1 (Australia), IEC (France), DIN/VDE (Germany), JIS (Japan), BS (UK), and UL/NEMA (USA).

With a total conductivity rating of 99.7% IACS and low resistivity of 1.738 micro-ohm cm, it supports efficient electrical flow and minimizes energy loss at termination points.

The material composition is tightly controlled, with oxygen content capped at 30 p.p.m. maximum and a tensile strength of 200 MPa, ensuring durability and long-term connection integrity. This makes it suitable for contractors who need dependable compliance-ready components for inspections and project handovers.

Trade-Ready Design for Faster Installation & Compatibility

Designed with electricians and contractors in mind, the CABAC copper stalk range is compatible with standard hexagon crimping dies used for equivalent copper lugs. Tooling is dimensionally compatible with standard Australian systems, helping reduce setup time on site and improving workflow efficiency.

The interchangeable tooling compatibility with Cable Accessories, Utilux, and Burndy systems allows contractors to integrate it seamlessly into existing toolkits without additional investment or change in process.

Supplied unplated, it provides a straightforward, no-frills solution for trade professionals who prioritise reliability, availability, and consistency across multiple job sites.

For electrical contractors managing tight deadlines and multiple projects, this product supports faster procurement, fewer delays, and dependable installation outcomes—backed by a wholesaler focused on keeping trade work moving.

Key Specifications

• Nominal Conductor: 185mm²
• Stalk Size: 10mm
• Conductive Material: Copper (99.95% pure)
• Oxygen Content: 30 p.p.m. max
• Tensile Strength: 200 MPa
• Ductility: 40%
• Final Metal State: Fully annealed
• Operating Temperature: -55°C to 155°C
• Total Conductivity: 99.7% IACS
• Resistivity: 1.738 micro-ohm cm
• Plating: Not supplied plated
• Standards: AS4325 Part 1, IEC, DIN/VDE, JIS, BS, UL/NEMA
• Tooling Compatibility: Standard Australian tooling; interchangeable with Cable Accessories, Utilux, Burndy systems

Ideal For

• Electrical contractors working on commercial and industrial installations
• Licensed electricians handling heavy-duty cable termination work
• Switchboard and distribution board assembly
• Infrastructure and utility electrical projects
• Maintenance teams requiring reliable replacement terminations
• Builders and project electricians working to Australian compliance standards
