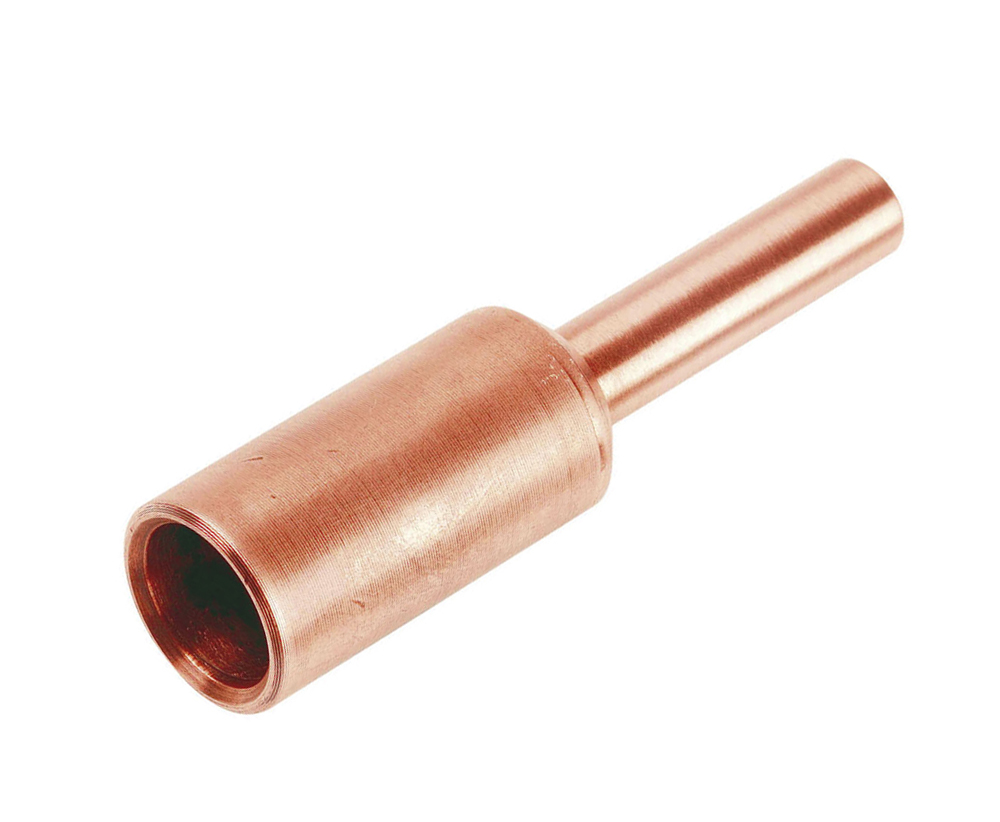

CABAC COPPER STALK 16MM2 8MM STALK CS16/8 x 1/EACH

Description

High-Performance Copper Connection for Demanding Electrical Work

When reliability and conductivity matter on site, this CABAC copper stalk delivers consistent performance for professional electrical terminations. Designed for 16mm² conductors with an 8mm stalk, it provides a solid, dependable connection point suited to a wide range of installation environments.

Manufactured from high-purity copper (99.95%), this component ensures excellent electrical conductivity and long-term performance under load. With a total conductivity rating of 99.7% IACS, it supports efficient current transfer, helping reduce resistance-related losses across your installation. Its fully annealed structure improves ductility, making it easier to work with during crimping and installation while maintaining structural integrity.

Rated for operating temperatures from -55°C to 155°C, it performs reliably across harsh industrial, commercial, and outdoor conditions where thermal variation is expected.

Built for Compliance, Strength, and Long-Term Reliability

This copper stalk is engineered to meet strict international standards, giving you confidence across regulated projects. It complies with AS4325 Part 1 (Australia) along with IEC, DIN/VDE, JIS, BS, and UL/NEMA standards—making it suitable for a broad range of electrical specifications and contract requirements.

Crimped using standard hexagon dies for equivalent copper lugs, it integrates seamlessly with widely used Australian tooling systems. Tooling compatibility also extends across Cable Accessories, Utilux, and Burndy systems, helping ensure consistent and secure terminations without the need for specialised equipment.

The product is supplied unplated, giving a clean copper interface for reliable conductivity and straightforward installation practices commonly used by licensed electricians and contractors.

Trade-Ready Design for Faster Installation and Job Efficiency

Designed with electricians and contractors in mind, this CABAC copper stalk supports efficient on-site workflows and reduces installation delays. Its compatibility with standard tooling means less time adjusting equipment and more time completing terminations quickly and consistently.

Whether you’re working on residential upgrades, commercial fit-outs, or industrial maintenance, this component helps streamline repetitive termination tasks while maintaining professional-grade results. Its availability in standard dimensions ensures easy integration into existing material schedules, reducing the need for special-order delays that can impact project timelines.

For electrical contractors managing multiple jobs, this product supports faster procurement and dependable repeat use across varied applications—helping keep projects on schedule and within budget.

Key Specs

• Nominal Conductor: 16mm²
• Stalk Size: 8mm
• Conductive Material: Copper (99.95% pure)
• Oxygen Content: Max 30 ppm
• Tensile Strength: 200 MPa
• Ductility: 40%
• Metal State: Fully annealed
• Conductivity: 99.7% IACS
• Resistivity: 1.738 micro-ohm cm
• Operating Temperature: -55°C to 155°C
• Plating: Not supplied plated
• Tooling Compatibility: Cable Accessories, Utilux, Burndy

Ideal For

• Licensed electricians performing cable terminations
• Electrical contractors on residential and commercial projects
• Industrial maintenance and repair teams
• Switchboard and panel assembly work
• Construction and fit-out electrical installations
• Facilities and building maintenance technicians
