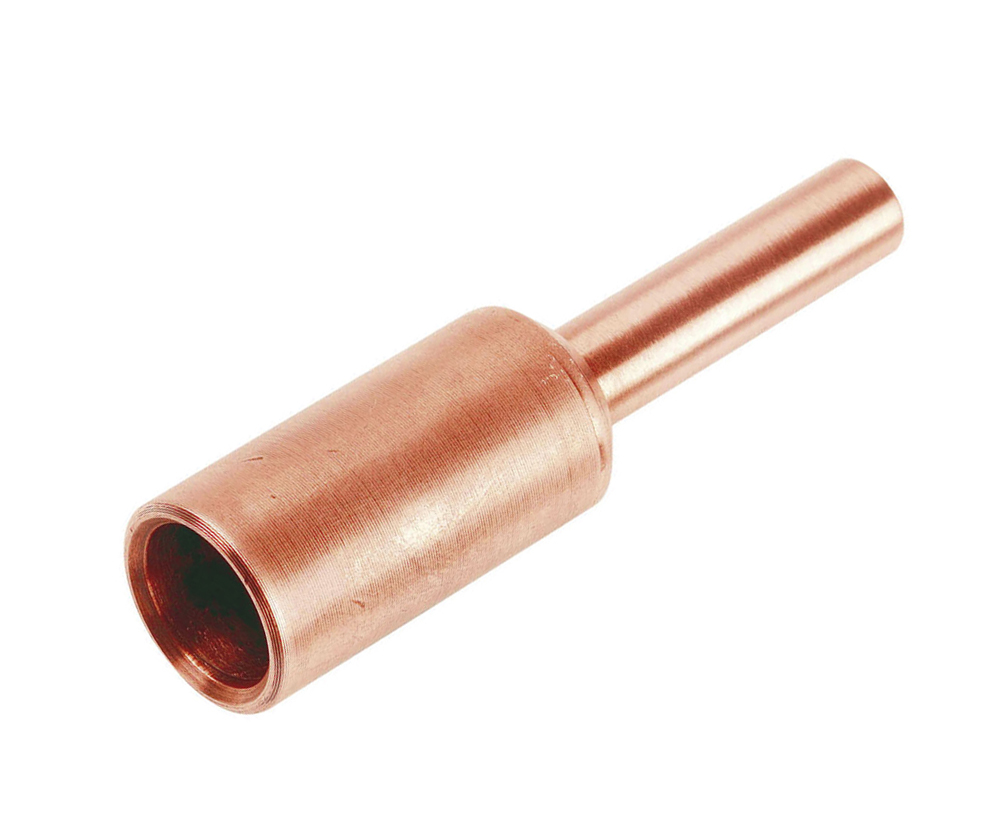

CABAC COPPER STALK 16MM2 6MM STALK CS16/6 x 1/EACH

Description

High-Performance Copper Termination for Reliable Current Flow

Built for demanding electrical applications, the CABAC copper stalk 16mm² 6mm delivers dependable conductivity and mechanical strength for professional installations. Manufactured from high-purity copper, this stalk is engineered to support consistent current transfer while maintaining structural integrity under load.

With a nominal 16mm² conductor size and precision 6mm stalk design, it integrates seamlessly into standard crimping workflows using hexagon dies compatible with common Australian tooling systems. This ensures faster termination work on-site, reducing rework and helping electricians stay productive on tight project schedules.

Whether you’re working on residential switchboards or commercial distribution systems, this component helps maintain solid, low-resistance electrical connections that stand up to real-world conditions.

Built for Compliance, Durability, and Long-Term Reliability

This CABAC copper stalk is manufactured to meet multiple international standards, giving contractors confidence across varied project requirements and compliance environments. It is designed using 99.95% pure copper with fully annealed metal properties to ensure excellent ductility and ease of crimping.

Engineered for stability under extreme conditions, it performs reliably across a wide operating temperature range from -55°C to 155°C, making it suitable for both indoor and exposed installations.

Key electrical and material properties ensure consistent performance, including high conductivity and low resistivity, helping reduce energy loss across terminations. Its non-plated copper finish also ensures direct, uncompromised conductivity where performance matters most.

Trade-Focused Design for Faster Installation and Reduced Downtime

Designed with electricians and contractors in mind, this copper stalk simplifies on-site workflow by aligning with standard tooling used across Australian electrical installations. Its compatibility with common cable accessory systems helps reduce tool changes and speeds up crimping tasks.

Whether you’re managing multiple job sites or working under strict deadlines, having reliable, ready-to-use components like this helps avoid delays caused by incompatible fittings or inconsistent supply chains. Ideal for repeat use in commercial projects, maintenance work, and electrical upgrades where efficiency is critical.

Key Specifications

• Nominal conductor size: 16mm²
• Stalk size: 6mm
• Material: Copper (99.95% pure)
• Oxygen content: 30 ppm max
• Tensile strength: 200 MPa
• Ductile rating: 40%
• Metal state: Fully annealed
• Operating temperature: -55°C to 155°C
• Conductivity: 99.7% IACS
• Resistivity: 1.738 micro-ohm cm
• Plating: Not supplied plated
• Standards compliance: AS4325 Part 1 (AU), IEC (France), DIN/VDE (Germany), JIS (Japan), BS (UK), UL/NEMA (USA)

Ideal For

• Licensed electricians and electrical contractors
• Commercial and industrial switchboard installations
• Residential electrical wiring and upgrades
• Maintenance and facilities management teams
• Electrical termination and crimping applications
• Construction and fit-out projects requiring compliant copper terminations
