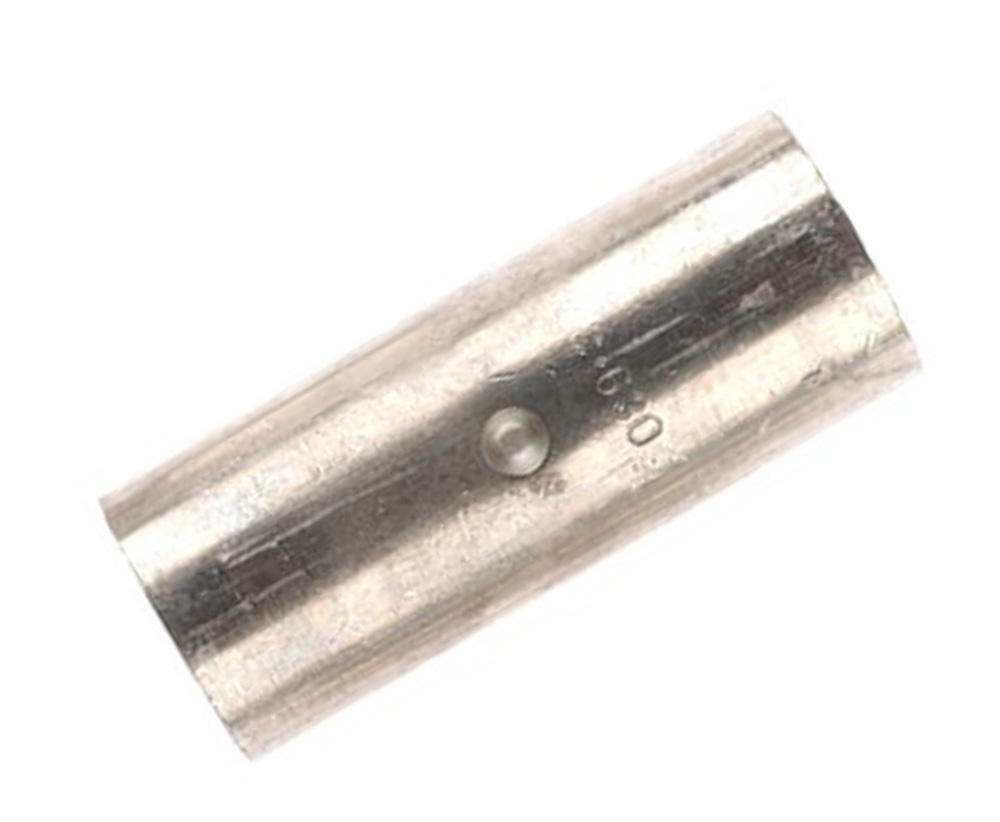

CABAC COPPER SLEEVE 630MM2 CABLE CAS630 x 1/EACH

Description

High-Performance Cable Termination for Heavy-Duty Applications

Built for serious current-carrying performance, the CABAC copper sleeve 630mm² delivers exceptional conductivity for large-scale cable termination jobs. Manufactured from 99.95%+ high-conductivity copper, it ensures minimal resistance and maximum efficiency across demanding electrical installations. The fully annealed copper construction supports reliable crimping and long-term mechanical stability, making it ideal for high-load environments where performance cannot be compromised.

With a 630mm² nominal conductor capacity and precision engineering, this copper sleeve is designed to handle large industrial cabling with confidence. Its oxygen-free copper composition also allows continuous operation up to 155°C, supporting high-temperature electrical systems without performance loss.

Fully Compliant, Safe, and Built for Long-Term Reliability

Designed to meet strict international and Australian standards, this CABAC copper sleeve complies with AS4325 Part 1, DIN/VDE, JIS, BS, and UL/NEMA requirements. That means dependable compliance across commercial, industrial, and infrastructure projects where certification matters.

The tin-plated finish (99.9% pure tin with controlled alloying elements) enhances corrosion resistance and ensures long-term joint integrity, even in harsh site conditions. With a tensile strength of 200 MPa and 40% ductility rating, it delivers a strong yet workable connection that licensed electricians can trust for critical cable terminations.

Engineered oxygen-free copper (30 ppm max oxygen content) further improves thermal stability and reduces risk of degradation over time—helping reduce call-backs and ensure installations stay compliant and safe.

Trade-Ready Design for Faster, Cleaner Installations

Made for electricians and contractors working under tight project deadlines, this copper sleeve is designed for fast, standard crimping using common Australian tooling. Tooling compatibility with Cable Accessories, Utilux, and Burndy systems ensures flexibility on-site without the need for special equipment.

Supplied individually (1 per box), it’s ideal for precise job requirements, urgent replacements, or small batch terminations without excess inventory waste. Whether you’re working on switchboards, industrial upgrades, or heavy-duty cable runs, this sleeve supports efficient installation workflows and reduces downtime on critical jobs.

Backed by a trade-focused supply chain through iSupply Electrical, contractors benefit from fast access, reliable stock availability, and wholesale pricing designed to keep projects moving without delays.

Key Specs

• Nominal Conductor: 630mm²
• Stranding: 127/2.52 (metric)
• Internal Diameter: 34.0mm
• Material: 99.95%+ high conductivity copper
• Oxygen Content: 30 ppm max
• Tensile Strength: 200 MPa
• Ductility: 40%
• Metal State: Fully annealed
• Operating Temperature: -55°C to 155°C
• Electroplating: Tin 99.9% purity (4 microns)
• Standards: AS4325 Part 1, DIN/VDE, JIS, BS, UL/NEMA
• Quantity: 1 per box

Ideal For

• Industrial electrical installations and upgrades
• Large-scale cable termination and jointing
• Switchboard and distribution system builds
• Licensed electricians and electrical contractors
• Infrastructure and commercial construction projects
• Maintenance and facility electrical repairs
