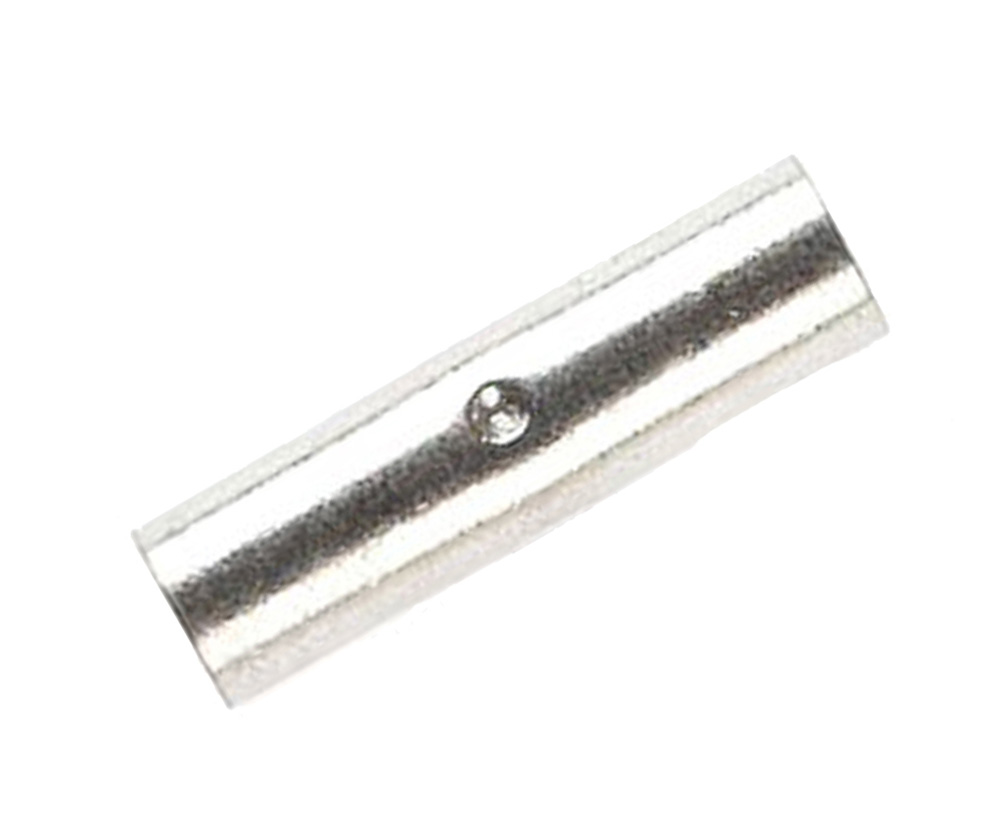

CABAC COPPER SLEEVE 50MM2 CABLE CAS50 x 50/BOX

Description

High-Performance Electrical Connectivity for Critical Terminations

The CABAC copper sleeve CAS50 is engineered for dependable electrical performance where strong, low-resistance connections are essential. Manufactured from 99.9%+ high conductivity copper, it ensures efficient current transfer and stable long-term conductivity across residential, commercial, and industrial applications.

Its fully annealed construction improves ductility, allowing the sleeve to form a secure, uniform crimp around the conductor. This helps reduce joint failure risk and supports consistent performance in high-load installations where reliability matters most on site.

With oxygen-free copper construction, these sleeves are built to handle demanding electrical conditions without compromising connection integrity—ideal for contractors who need fast, repeatable, and trustworthy terminations.

Built for Compliance, Strength, and Long-Term Reliability

Designed to meet key international standards including AS4325 Part 1, DIN/VDE, JIS, BS, and UL/NEMA, this copper sleeve supports compliance across a wide range of project requirements. It gives electricians confidence that terminations meet recognised safety and performance benchmarks on Australian and global installations.

The oxygen-free copper composition allows a continuous operating temperature range from -55°C to 155°C, ensuring stable performance in both harsh environments and high-load electrical systems. With a tensile strength of 200 MPa and controlled oxygen content (max 30 p.p.m.), this sleeve is built for durability under pressure.

Tin plating (99.9% pure) with controlled thickness enhances corrosion resistance and improves long-term connection stability—reducing maintenance calls and helping maintain system integrity over time.

Trade-Ready Efficiency for Faster Installations

Designed with electricians and contractors in mind, the CABAC CAS50 copper sleeve is fully compatible with standard Australian crimping tools, making installation straightforward and efficient on-site. Tooling is interchangeable with Cable Accessories, Utilux, and Burndy systems, helping streamline workflow without requiring special equipment.

Supplied in a 50-piece box, it supports bulk job requirements and reduces downtime caused by material shortages or repeated reordering. With a precise 50mm² conductor fit and 9.5mm ID, it ensures consistent crimping results across multiple terminations.

For busy contractors managing tight project schedules, this sleeve delivers speed, consistency, and reliability—helping keep electrical installs moving without delays.

Key Specs

• Nominal Conductor: 50mm²
• Stranding: 19/1.78 (metric)
• Internal Diameter (ID): 9.5mm
• Quantity per Box: 50
• Copper Purity: 99.95%
• Oxygen Content: Max 30 p.p.m.
• Tensile Strength: 200 MPa
• Ductility: 40%
• Metal State: Fully annealed
• Operating Temperature: -55°C to 155°C
• Plating: Tin 99.9% (approx. 4 microns)
• Tooling Compatibility: Cable Accessories, Utilux, Burndy

Ideal For

• Electrical contractors handling residential, commercial, or industrial installations
• Licensed electricians performing cable terminations and joins
• Switchboard and distribution board assembly work
• Maintenance teams requiring reliable cable repair or replacement
• Projects requiring compliant, high-integrity copper connections
• Fast-paced job sites needing consistent, repeatable crimp performance
