CABAC COPPER SLEEVE 500MM2 CABLE CAS500 x 1/EACH

Description

High-Performance Electrical Connections for Heavy-Duty Loads

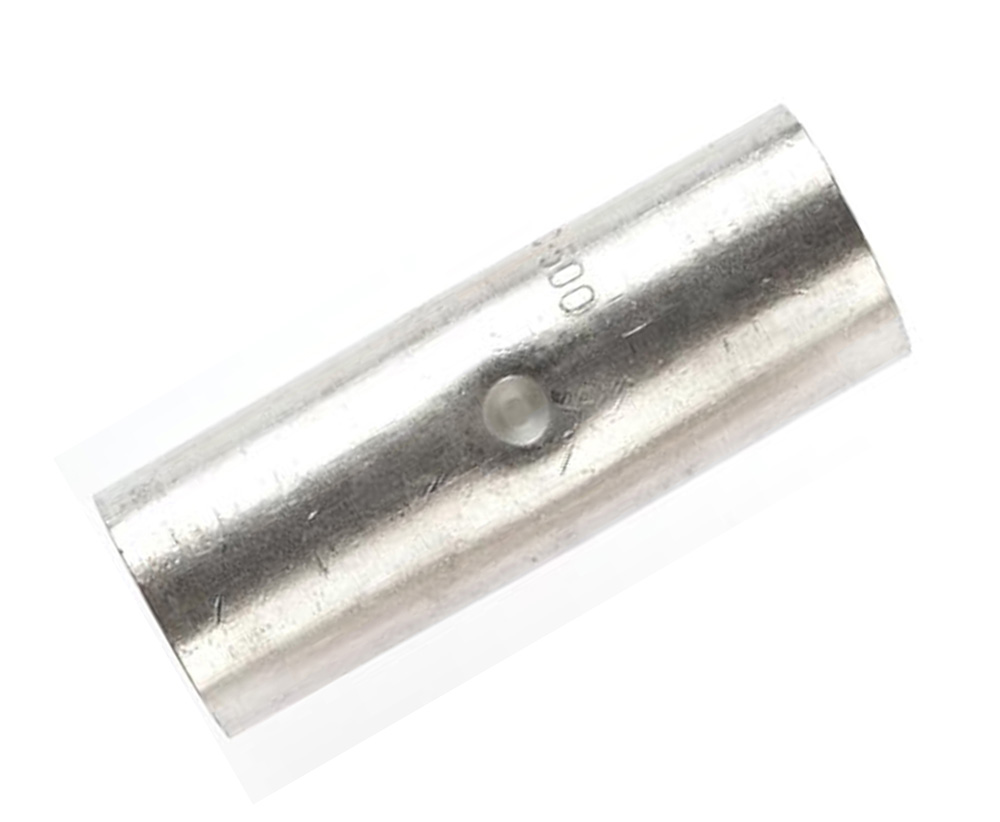

Built for demanding electrical installations, this 500mm² copper sleeve delivers reliable, high-conductivity connections where performance matters most. Manufactured from 99.9%+ pure copper, it ensures excellent electrical flow with minimal resistance, making it ideal for large-scale power distribution and industrial applications.

Its oxygen-free copper construction supports superior thermal performance, allowing continuous operating temperatures up to 155°C. This gives electricians confidence when working on high-load systems where stability and efficiency cannot be compromised. Designed for crimping with standard Australian tooling, it integrates seamlessly into existing workflows, helping reduce installation time on-site while maintaining consistent connection quality.

Built for Reliability, Compliance & Long-Term Safety

When compliance is non-negotiable, this copper sleeve meets the mark. Manufactured in accordance with AS4325 Part 1 (Australia), DIN/VDE (Germany), JIS (Japan), BS (UK), and UL/NEMA (USA), it supports multi-standard project requirements across commercial and industrial environments.

The use of high-purity copper with controlled oxygen content ensures strong mechanical integrity, with a tensile strength of 200 MPa and a fully annealed final metal state for dependable crimp performance. Tin-plated with 99.9% purity and a consistent 4-micron coating, it enhances corrosion resistance and long-term connection stability—reducing maintenance risks and helping electricians deliver safe, compliant installations every time.

Trade-Ready Design for Faster, Easier Installation

Designed with real jobsite efficiency in mind, this copper sleeve simplifies high-current cable joining without unnecessary complexity. With an internal diameter of 30.0mm and compatibility with standard interchangeable tooling (Cable Accessories, Utilux, and Burndy), it supports smooth integration into existing contractor setups.

Perfect for electricians and contractors working under tight project deadlines, it helps streamline termination tasks across residential, commercial, and industrial jobs. Supplied as a single unit per box, it’s ideal for precise job requirements, reducing excess stock handling while keeping procurement straightforward and efficient.

Key Specs

• Nominal Conductor: 500 mm²
• Stranding: 61/3.20
• Internal Diameter (ID): 30.0 mm
• Quantity per Box: 1
• Conductive Material: 99.95% pure copper
• Oxygen Content: 30 p.p.m. max
• Tensile Strength: 200 MPa
• Ductility: 40%
• Metal State: Fully annealed
• Operating Temperature: -55°C to 155°C
• Plating: 99.9% tin (4 microns thickness)

Ideal For

• High-current industrial cable termination
• Commercial and infrastructure electrical projects
• Electrical contractors and licensed electricians
• Power distribution and heavy-load installations
• Maintenance and repair of large conductor systems
