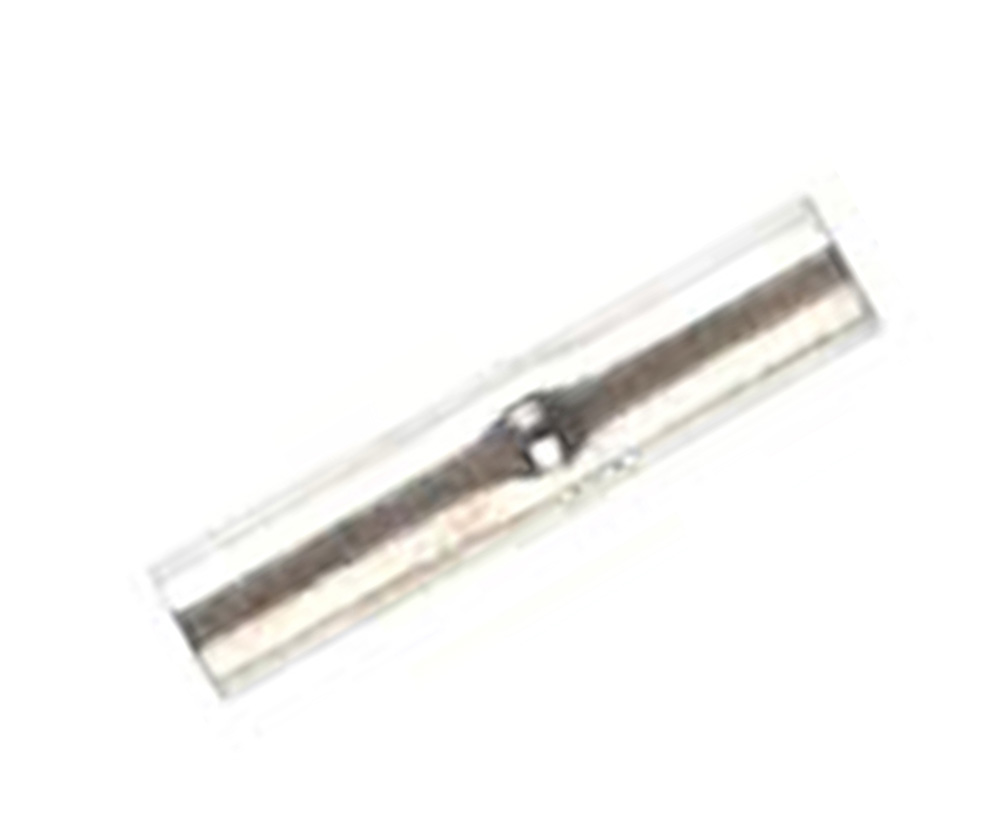

CABAC COPPER SLEEVE 4MM2 CABLE CAS4 x 100/BOX

Description

High-Conductivity Performance for Secure Cable Terminations

The CABAC 4mm² copper sleeve is engineered for dependable electrical continuity in demanding trade environments. Manufactured from 99.95% pure copper, it delivers excellent conductivity to ensure stable, low-resistance connections across a wide range of electrical installations.

With a fully annealed construction and precise 7/0.85 stranding compatibility, these sleeves are designed to support consistent crimping performance using standard Australian tooling. Whether you’re working on residential wiring or larger commercial fit-outs, these links help ensure efficient installation and long-lasting electrical integrity.

Built for Compliance, Strength, and Long-Term Reliability

Designed to meet strict international standards, these copper sleeves support compliance across Australian and global specifications including AS4325 Part 1, DIN/VDE, JIS, BS, and UL/NEMA requirements.

The oxygen-free copper construction allows for continuous operation up to 155°C, giving electricians confidence in high-temperature environments where reliability cannot be compromised. With a tensile strength of 200 MPa and ductility of 40%, these sleeves provide both mechanical strength and flexibility during installation.

A 99.9% tin plating (4-micron thickness) enhances corrosion resistance, helping maintain performance and durability in long-term electrical applications.

Trade-Ready Efficiency for Faster, Cleaner Installations

Packed in a convenient 100-piece box, the CABAC CAS4 copper sleeves are ideal for high-volume electrical work where speed and consistency matter. The 3.1mm internal diameter is engineered for precise 4mm² conductor compatibility, helping reduce installation errors and rework on site.

Compatible with interchangeable tooling systems including Cable Accessories, Utilux, and Burndy, these sleeves integrate easily into existing trade workflows. That means less downtime switching tools and more time completing installations efficiently.

Perfect for electricians and contractors who need reliable consumables that keep projects moving on schedule.

Key Specs

• Nominal Conductor: 4mm²
• Stranding: 7/0.85
• Internal Diameter: 3.1mm
• Material: 99.95% pure copper
• Oxygen Content: Max 30 ppm
• Tensile Strength: 200 MPa
• Ductility: 40%
• Metal State: Fully annealed
• Operating Temperature: -55°C to 155°C
• Plating: 99.9% tin, 4 microns
• Quantity: 100 per box
• Standards: AS4325 Part 1, DIN/VDE, JIS, BS, UL/NEMA

Ideal For

• Licensed electricians and electrical contractors
• Residential, commercial, and industrial wiring installations
• Cable termination and jointing work
• Maintenance and facility electrical repairs
• High-volume electrical installation projects
• Trade professionals requiring compliant copper connectors
