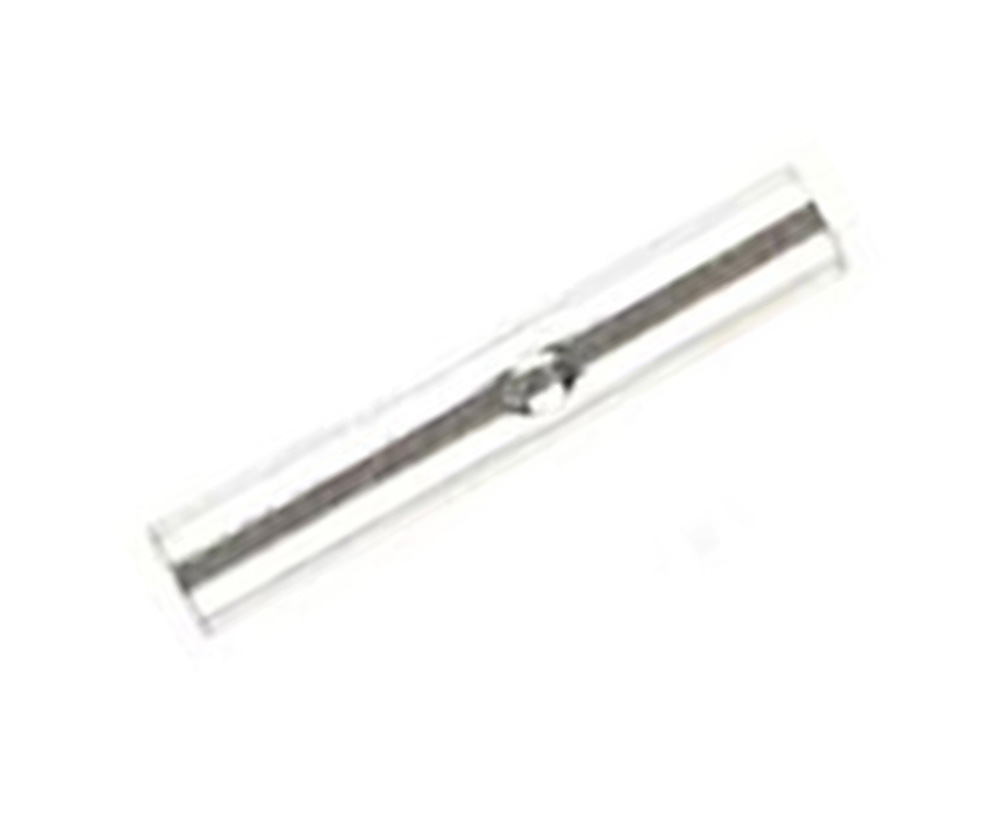

CABAC COPPER SLEEVE 2.5MM2 CABLE CAS2.5 x 100/BOX

Description

High Conductivity Performance for Clean, Reliable Crimps

Built from 99.9%+ high-conductivity copper, these CABAC copper sleeves are designed to deliver consistent electrical performance across everyday trade installations. The oxygen-free copper construction ensures superior conductivity and improved thermal stability, helping maintain strong, low-resistance connections under load.

Rated for continuous operation up to 155°C, these sleeves are engineered for demanding environments where heat and performance reliability matter. Whether you’re working on residential wiring or commercial distribution setups, they provide dependable termination quality that supports long-term system efficiency and safety.

For electricians working on tight deadlines, the consistent crimp performance helps reduce rework and ensures each termination is done right the first time.

Certified Reliability & Built to International Standards

These copper sleeves are manufactured to meet strict international standards including AS4325 Part 1 (Australia), DIN/VDE (Germany), JIS (Japan), BS (UK), and UL/NEMA (USA), giving confidence they meet compliance requirements across a wide range of electrical projects.

Made from 99.95% pure copper with ultra-low oxygen content (max 30 p.p.m.), they offer excellent ductility and mechanical strength, ensuring stable crimps that hold under vibration and load stress. The tin-plated finish (99.9% pure) further improves corrosion resistance, helping extend service life in harsh or high-moisture environments.

With fully annealed metal properties and consistent dimensional accuracy, these sleeves integrate seamlessly into professional electrical systems where compliance and reliability are non-negotiable.

Trade-Ready Convenience for Faster Installations

Designed with electricians and contractors in mind, the CABAC CAS2.5 copper sleeves are compatible with standard Australian crimping tools, making them easy to integrate into existing workflows without the need for specialised equipment.

Each box contains 100 sleeves, giving you efficient bulk value for ongoing projects and reducing repeat ordering delays. Tooling compatibility with Cable Accessories, Utilux, and Burndy ensures flexibility across different job sites and contractor preferences.

Backed by iSupply Electrical’s trade-focused supply model, you get fast access to stock, competitive wholesale pricing, and reliable Australia-wide delivery—helping keep projects moving without unnecessary downtime. Whether you’re working on installations, maintenance, or large-scale electrical fit-outs, these sleeves support smooth, efficient job completion from start to finish.

Key Specs

• Nominal conductor: 2.5mm²
• Stranding: 7/0.67 (metric)
• Internal diameter: 2.4mm
• Material: 99.95% pure copper
• Oxygen content: Max 30 p.p.m.
• Tensile strength: 200 MPa
• Ductility: 40%
• Metal state: Fully annealed
• Operating temperature: -55°C to 155°C
• Plating: Tin (99.9% pure), 4 microns
• Qty per box: 100
• Standards: AS4325 Part 1, DIN/VDE, JIS, BS, UL/NEMA

Ideal For

• Licensed electricians and electrical contractors
• Residential wiring and retrofit installations
• Commercial electrical fit-outs
• Industrial maintenance and repair work
• Control panels and distribution systems
• Cable termination and jointing applications
