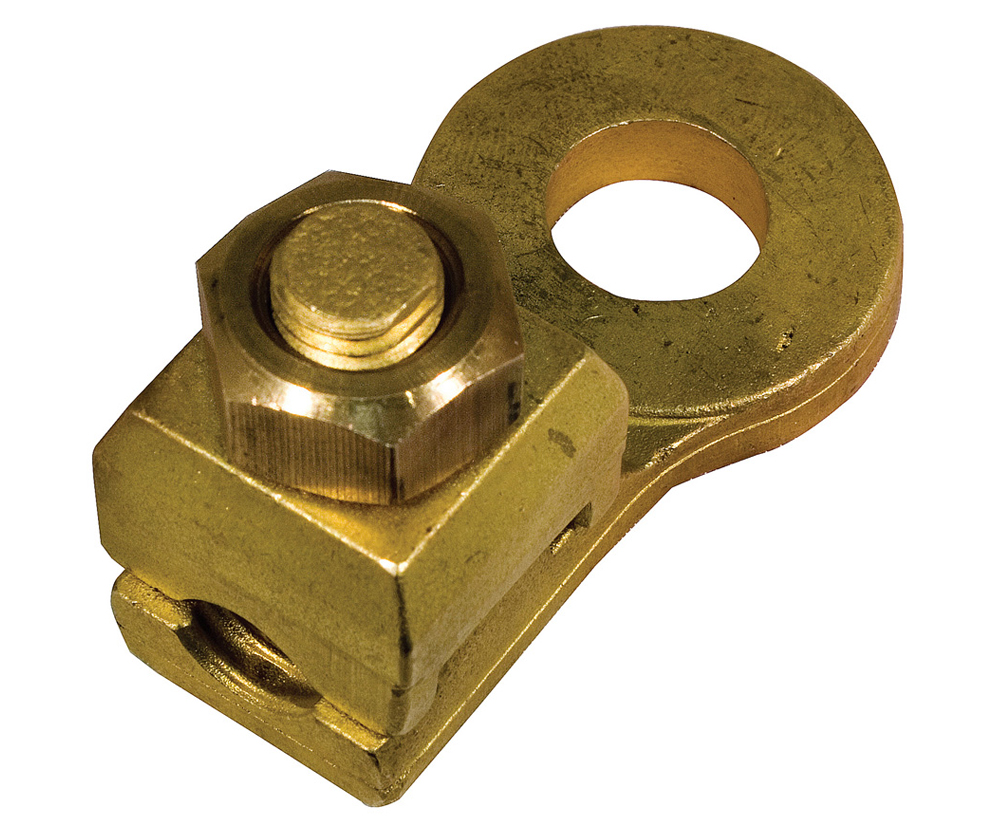

CABAC BOLTED COPPER ALLOY LUG 50-70MM2 CABL4 x 1/EACH

Description

Performance Built for Secure, High-Current Connections

The CABAC bolted copper alloy lug 50–70mm² (CABL4) delivers reliable, high-conductivity performance for demanding electrical installations. Designed for both normal and flexible conductors, it provides a fast, secure connection that maintains strong current transfer. The internal corrugations inside the barrel improve grip and electrical contact, while the high-conductivity copper alloy ensures efficient power flow across every connection. Ideal for temporary or permanent terminations where performance and consistency matter on site.

Reliable, Compliant Connections You Can Trust

Manufactured from durable copper alloy and engineered for Australian standards, this bolted lug is approved for use by major authorities including Energy Australia and Powercor. Rated for operating temperatures from -55°C to 100°C, it performs reliably across harsh site conditions and industrial environments. The machined palm design allows bolting on either surface, giving flexibility for switchboards, distribution systems, and heavy-duty terminations where compliance and safety are critical.

Trade Efficiency That Saves Time on Site

Designed with electricians in mind, this reusable bolted lug simplifies installation and reduces downtime. Just insert the stripped conductor into the barrel and tighten the single hex nut—no special tooling required. Its reusable design makes it ideal for temporary setups, maintenance work, and fast modifications on live projects. A practical solution for contractors who need speed, flexibility, and dependable connections without compromising workmanship.

Key Specs

• Conductor size: 50–70mm²
• Building wire stranding: 19/1.78, 19/2.14
• Stud size: 12mm
• Conductive material: Copper alloy
• Operating temperature: -55°C to 100°C
• Dimensions: A: 60, B: 32, C: 6, G: 34
• Box quantity: 5
• Accepting authorities: Energy Australia, Powercor and other recognized authorities

Ideal For

• Electrical contractors and licensed electricians
• Switchboard and distribution board connections
• Temporary or permanent power terminations
• Industrial maintenance and repair work
• Commercial and infrastructure electrical installations
• Site works requiring reusable connection solutions
