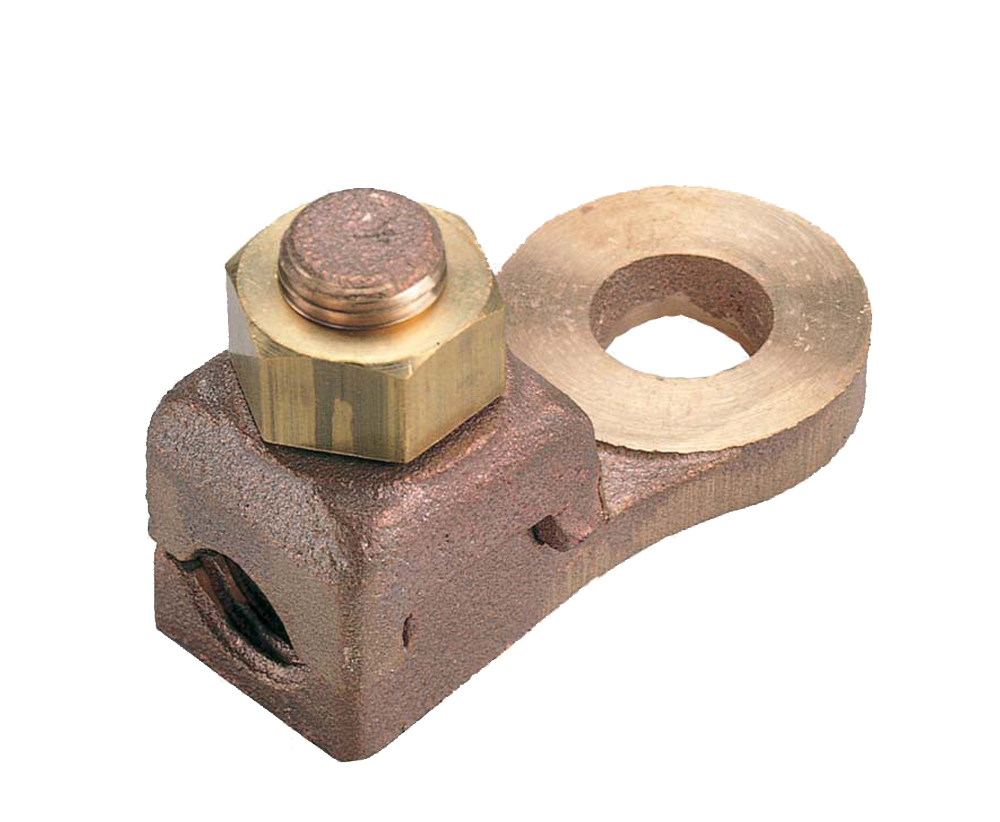

CABAC BOLTED COPPER ALLOY LUG 150-185MM2 CABL6 x 1/EACH

Description

Performance You Can Rely On in the Field

When you need solid current transfer and a dependable connection under load, this CABAC bolted copper alloy lug delivers. Built for 150–185mm² conductors, it’s designed to handle demanding electrical work where performance and consistency matter.

The high-conductivity copper alloy construction supports efficient current transfer, while the internally corrugated barrel helps grip the conductor firmly for a stable connection. Whether it’s a temporary setup or a permanent installation, this lug gives you the confidence to keep projects moving without rework or downtime.

Built for Compliance and Long-Term Reliability

Designed to meet the expectations of major utility and infrastructure environments, this bolted lug is accepted by Energy Australia, Powercor, and other recognized authorities—making it suitable for compliant installations across commercial and industrial sites.

With an operating temperature range of -55°C to 100°C, it’s built to perform in harsh Australian conditions. The machined palms allow secure bolting on either surface, giving you installation flexibility while maintaining a strong mechanical and electrical bond you can trust on-site.

Faster Installation, Reusable Trade Efficiency

Time matters on every job. This bolted design allows quick termination by simply inserting the stripped conductor into the barrel and tightening the single hex nut—no complex tooling or time-consuming prep.

It’s reusable multiple times, making it a practical choice for maintenance teams, contractors, and electricians managing evolving site requirements. Ideal for switchboards, distribution work, and heavy-duty field connections, it helps reduce downtime and keeps your workflow efficient from rough-in to final commissioning.

Key Specs

• Conductive material: Copper alloy
• Operating temperature: -55°C to 100°C
• Accepting authorities: Energy Australia, Powercor and other recognized authorities
• Conductor size: 120–185 mm²
• Building wire stranding: 37/2.03, 37/2.25, 37/2.52
• Stud size: 16 mm
• Dimensions (mm): A: 76, B: 38, C: 9, G: 45
• Box quantity: 5

Ideal For

• Licensed electricians and electrical contractors
• Industrial and commercial switchboard installations
• Power distribution and heavy cable termination work
• Maintenance and repair teams requiring reusable lugs
• Infrastructure and utility-approved electrical installations
