CABAC Braid 300A 200mm Long M10 Studs (1/each) CAB300A-200M10

Description

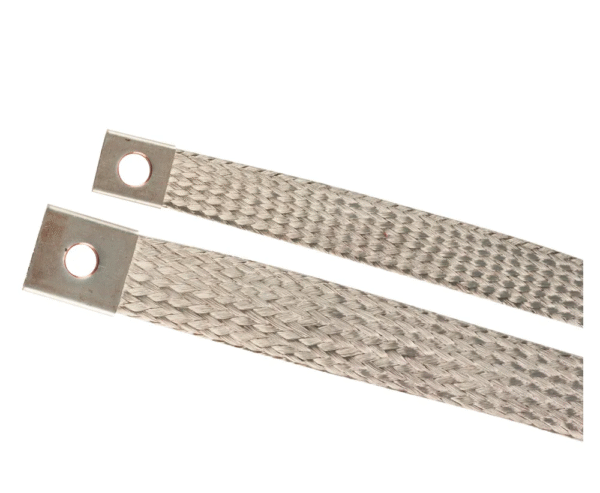

Flexible Copper Braid 300A for High-Movement Electrical Connections

The CABAC Braid 300A 200mm Long M10 Studs is a Flexible Copper Braid 300AMP designed to provide reliable current transfer where movement, vibration, or expansion is present. Flexible braids are commonly used on disconnects, switch handle grounds, and bonding applications where rigid conductors can fatigue or fail over time.

The braided copper construction provides exceptional flexibility while maintaining strong electrical conductivity, making it ideal for installations where equipment movement or vibration needs to be absorbed without stressing connections. At 200mm long, measured between the centre of the first holes, this braid provides the flexibility required to manage alignment variations, linear expansion, or contraction in electrical systems.

For electricians and contractors working on switchboards, machinery connections, or grounding systems, this braid offers a dependable solution that reduces strain on terminals and improves long-term connection integrity.

Built for Reliable Electrical Performance in Demanding Environments

CABAC flexible braids are manufactured with tinned braid and plated ferrules, helping improve durability and resistance to corrosion in typical installation environments. Each braid features seamless pure copper ferrules formed into a rectangular shape, providing secure connection points and improved mechanical stability during installation.

The 300A nominal rating provides strong current-carrying capability for a wide range of electrical grounding and bonding applications. As with all current ratings, environmental conditions may influence performance, and indoor installations generally require a nominal rating de-rate of around 20%.

For projects where compliance, reliability, and long-term performance matter, CABAC’s quality construction helps ensure dependable grounding connections across residential, commercial, and industrial installations.

Trade-Ready Installation That Saves Time on Site

Designed with electricians in mind, the CABAC Braid 300A with M10 studs offers straightforward installation for switchboards, disconnect switches, and equipment grounding connections. The flexible design allows easy alignment during installation, reducing the need for complex adjustments or stressing connection points.

Standard braids are supplied ready for installation, while custom braid types and special ends can be requested when project specifications require tailored solutions. Line drawings and technical data are also available to help confirm dimensions during project planning.

For contractors managing tight project schedules, having reliable components like this copper braid helps minimise installation issues and reduces the risk of downtime caused by failed or rigid connections.

Key Specs

• Brand: CABAC

• Product: Flexible Copper Braid

• Amperage Rating: 300A nominal

• Length: 200mm

• Measurement: Length measured between centre of first holes

• Stud Size: M10

• Ferrules: Seamless pure copper ferrules formed into rectangular shape

• Braid Finish: Tinned braid

• Ferrule Finish: Plated ferrules

• Hole Configuration: Single or double hole available

• Sold As: 1 each

Ideal For

• Switch handle grounding connections

• Disconnect switch bonding

• Electrical equipment grounding

• Applications requiring vibration absorption

• Installations with thermal expansion or movement

• Switchboards and industrial electrical equipment

• Electricians and contractors performing maintenance or installations
