Cabac PRE-INS. BIMETAL ABC LUG 95MM BMABC95

Description

Fast, Secure Connections for ABC Installations

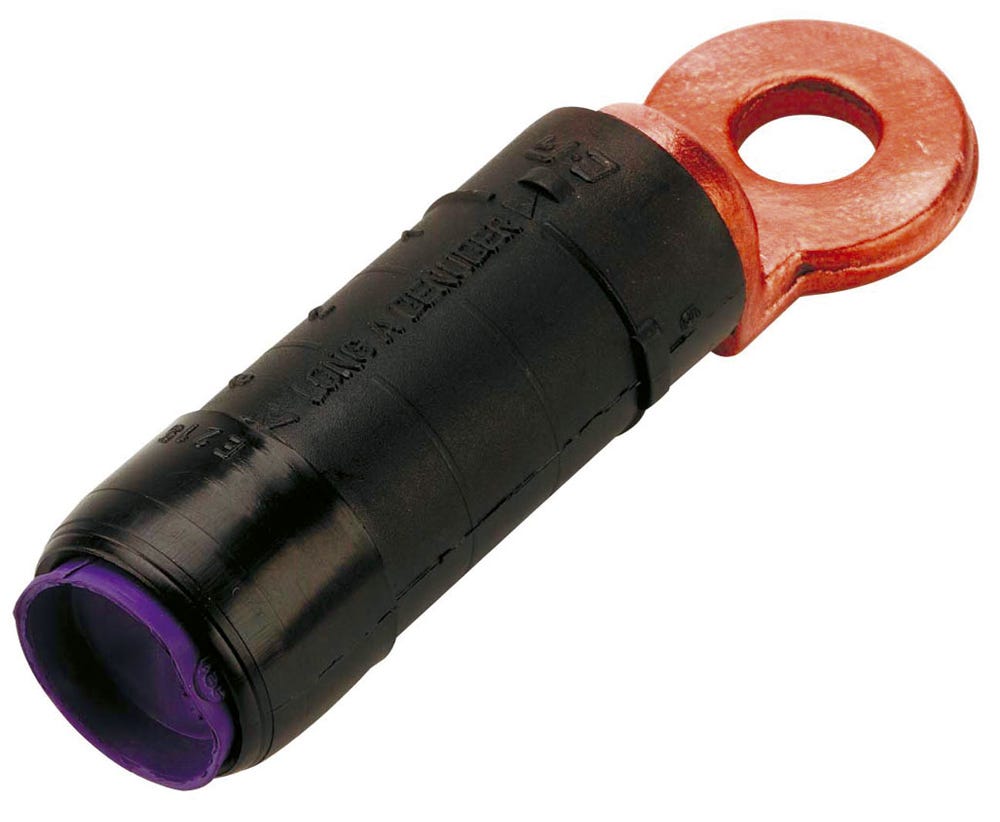

The Cabac Pre-Insulated Bi-Metal ABC Lug 95mm (BMABC95) is purpose-built for terminating Aerial Bundled Cable (ABC) to transformers, switchgear, and other pole-top equipment. Designed for trade efficiency, this pre-insulated bimetal ABC lug removes the need for additional insulation or heatshrink, helping electricians complete overhead connections faster and with fewer materials on site.

Crimping instructions—including strip length, die size, and crimp sequence—are moulded directly onto the lug insulation. This makes it easy for installers to achieve the correct termination the first time, even when working at height or in field conditions where speed and accuracy matter.

The lug is also pre-filled with jointing compound, improving electrical contact and reducing the risk of oxidation between dissimilar metals. The result is a reliable connection that supports long-term performance in distribution and pole-top applications.

Built for Reliability and Standards Compliance

Constructed with an aluminium barrel and copper palm, the Cabac BMABC95 lug uses friction welding to create a strong, stable bond between the two metals. This bi-metal design helps prevent galvanic corrosion while ensuring a dependable electrical connection between aluminium conductors and copper connection points.

The lug insulation provides added durability and safety in outdoor installations. The sealed end design delivers 6kV under-water dielectric strength, offering protection against moisture ingress in harsh environments commonly encountered in overhead distribution networks.

Manufactured to meet recognised international standards including AS4325, BS4579, and IEC, this lug supports compliance on professional installations where quality components are essential.

Designed for Efficient Trade Installation

When working on pole-top terminations or ABC connections, time and reliability matter. The pre-insulated design eliminates additional insulation steps, reducing installation time and helping keep projects on schedule.

Each lug is colour coded for quick cable size identification, making it easier for electricians to select the correct component from the toolbox or site materials. Installation is straightforward: strip the conductor to the indicated length and crimp using a hydraulic tool.

The lug is designed for use with the HT50 crimp tool, though any 13-tonne hydraulic crimping tool can be used. This flexibility ensures compatibility with the tools already carried by most electrical contractors, avoiding unnecessary equipment changes or delays on site.

Key Specs

• Cable Size: 95mm

• Barrel Material: Aluminium

• Palm Material: Copper

• Weld Type: Friction Weld

• End Seal Dielectric Strength: 6kV under water

• Standards: AS4325, BS4579, IEC

• Pre-insulated design (no heatshrink required)

• Pre-filled with jointing compound

• Colour coded for cable size identification

• Crimp instructions moulded on lug insulation

• Compatible with hydraulic crimp tools (HT50 recommended; 13-tonne tools suitable)

Ideal For

• Terminating Aerial Bundled Cable (ABC) conductors

• Connecting ABC cables to transformers or switchgear

• Pole-top electrical installations

• Electrical contractors working on overhead distribution networks

• Utility, infrastructure, and industrial electrical maintenance

• Installations where fast, reliable ABC terminations are required
