CABAC BSC95/12 AND SCCOLLAR BSC95/12K x 1/EACH

Description

Reliable Aluminium-to-Copper Termination for Switchgear

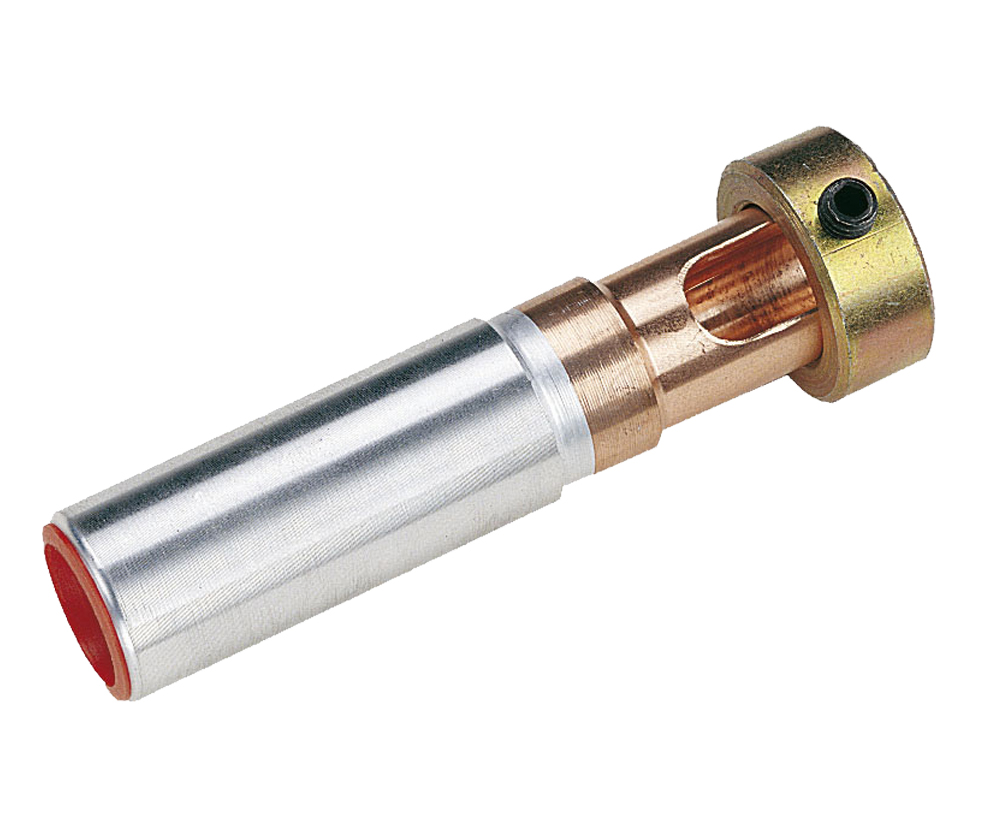

The CABAC BSC95/12 Bi-Metal Switchgear Connector is purpose-built for terminating stranded aluminium conductors onto a 12mm copper switchgear stem, delivering dependable current transfer in switchboards and distribution equipment. Designed for 95mm² aluminium conductors, this connector combines a high-purity aluminium barrel with a copper stalk to create a secure, low-resistance connection between dissimilar metals.

The aluminium sleeve is pre-coated with jointing compound and sealed with a protective cap, helping minimise oxidation and ensuring strong conductivity during installation. This makes the CABAC BSC95/12 switchgear connector a practical solution for contractors installing or upgrading switchboards where aluminium feeders must be reliably connected to copper switchgear components.

Built for Compliance, Safety & Long-Term Performance

The CABAC BSC95/12 bi-metal lug and collar assembly is friction welded from 99.6% pure aluminium and 99.9% IACS copper, creating a durable and highly conductive joint designed to handle demanding electrical environments. The fully annealed construction provides strength and ductility while maintaining consistent performance across operating temperatures from -40°C to +100°C. A machined slot in the copper end accepts the 12mm switchgear stem, while the included zinc-plated steel clamping collar with Allen head grub screw applies secure pressure between the lug and stem to ensure efficient current transfer. A cut in the collar ring helps prevent heat-generating eddy currents, supporting safer operation in high-load installations.

Manufactured to Australian dimensions and compliant with recognised international standards including AS 4325 Part 1, IEC, DIN/VDE, JIS, and BS, the connector is compatible with standard Australian crimping tooling commonly used by electricians and switchboard builders.

Trade-Ready Installation That Saves Time on Site

The CABAC BSC95/12 connector with SCCOLLAR BSC95/12K is engineered for straightforward installation in commercial and industrial switchgear environments. The combination of a pre-prepared aluminium barrel, friction-welded copper stalk, and mechanical clamping collar reduces installation complexity and helps contractors achieve reliable results quickly.

For electricians working to tight deadlines, this design helps streamline switchboard assembly and feeder termination while maintaining compliance with recognised standards. Whether you’re completing new installations, panel builds, or switchboard upgrades, the CABAC BSC95/12 bi-metal switchgear connector offers a dependable solution backed by a trusted electrical brand. Available through iSupply Electrical’s extensive trade range, contractors benefit from reliable stock availability, competitive wholesale pricing, and fast delivery Australia-wide—helping keep projects moving without unnecessary delays.

Key Specs

• Product: CABAC BSC95/12 Bi-Metal Switchgear Connector

• Nominal Conductor Size: 95mm²

• Conductor Stranding: 37 / 1.78

• Switchgear Stem Diameter: 12mm

• Aluminium Sleeve Purity: 99.6%

• Copper Stalk Conductivity: 99.9% IACS

• Tensile Strength: 110 MPa

• Ductility Rating: 28%

• Metal State: Fully annealed including joint

• Joining Method: Friction welded (IEC standard)

• Operating Temperature: -40°C to +100°C

• Aluminium Resistivity: 2.6 micro-ohm cm (max)

• Copper Resistivity: 1.738 micro-ohm cm

• Aluminium Conductivity: 61.8% IACS (min)

• Copper Conductivity: 99.7% IACS

• Compliance Standards: AS 4325 Part 1, IEC, DIN/VDE, JIS, BS

• Made to Australian dimensions for standard tooling

Ideal For

• Switchboard and distribution board installations

• Terminating aluminium feeder conductors to copper switchgear

• Commercial and industrial electrical installations

• Switchgear upgrades and panel retrofits

• Electrical contractors and switchboard builders

• Maintenance electricians servicing distribution equipment
