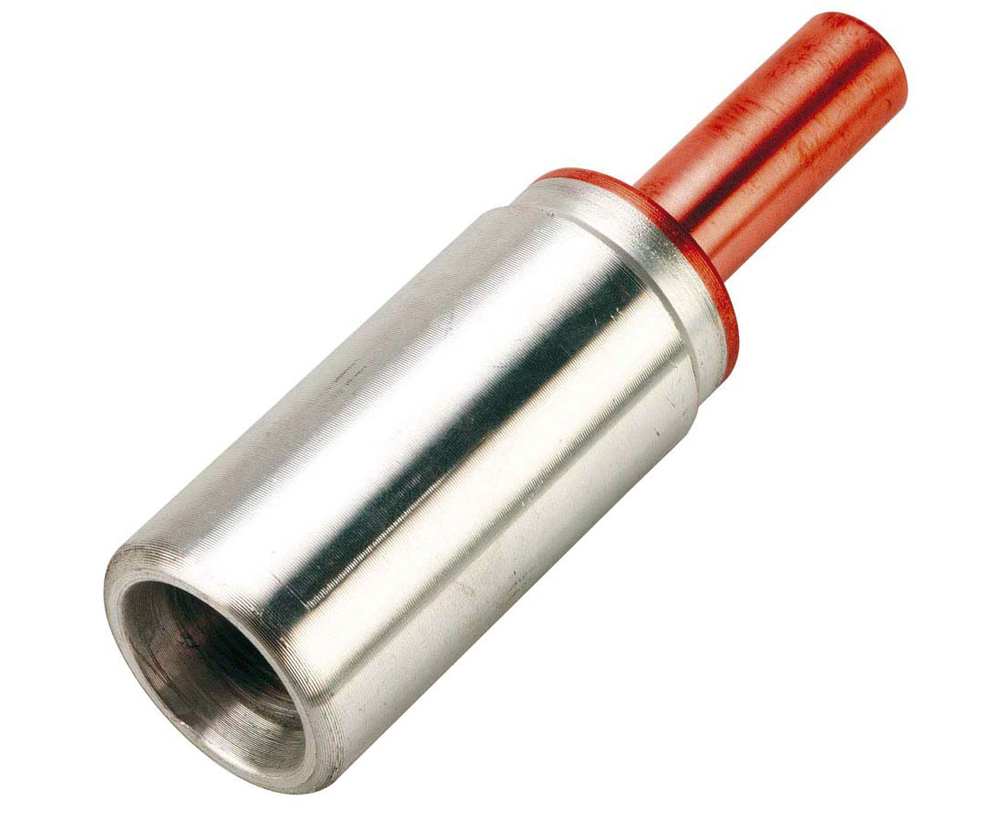

CABAC BI-METAL STALK 300MM2 CABLE BS300/16 x 1/EACH

Description

Reliable Aluminium-to-Copper Termination Performance

The CABAC BI-METAL STALK 300MM² Cable Lug (BS300/16) is designed for secure and efficient termination of large aluminium conductors to copper connections. Built for 300mm² stranded sector and circular stranded aluminium cable, this bi-metal stalk lug ensures strong electrical conductivity while reducing the risk of overheating at termination points.

Manufactured using high-purity aluminium (99.6%) and copper (99.9%), the components are friction welded to create a durable aluminium-to-copper transition. This design allows electricians to confidently connect aluminium cable runs to copper equipment terminals without compromising performance.

The barrel is pre-coated with jointing compound, helping prevent oxidation and ensuring consistent conductivity during installation—saving time on site and improving long-term reliability.

Built for Compliance and Long-Term Electrical Reliability

CABAC bi-metal stalk lugs are produced to meet recognised international and Australian electrical standards, providing confidence for contractors working across residential, commercial, and industrial installations.

Manufactured to Australian dimensions, the lug is compatible with standard Australian crimping tooling, allowing fast, accurate installation without specialised equipment. The fully annealed metal construction improves ductility and strength, helping maintain mechanical integrity during crimping and long-term operation.

Designed for demanding electrical environments, the lug supports operating temperatures from –40°C to +125°C, making it suitable for switchboards, power distribution systems, and industrial installations where reliability is critical.

Compliance with multiple international standards—including AS/NZS 4325 Part 1, IEC, DIN/VDE, JIS, and BS—ensures the product meets strict electrical and mechanical performance expectations on regulated job sites.

Trade-Ready Installation for Faster Project Completion

For electricians managing tight project timelines, the CABAC BS300/16 bi-metal stalk lug delivers practical installation advantages. Each lug is individually packed to keep components clean and ready for immediate use on site, reducing prep time and contamination risks.

The lug’s compatibility with standard crimping equipment means installers can integrate it easily into existing workflows without additional tooling or training. With a wide size range available and custom machining possible for specialised applications, contractors can confidently source the correct termination solution for large-scale cable installations.

For switchboard builds, distribution upgrades, and industrial power connections, this lug provides the dependable performance trades expect while helping keep projects moving without delays.

Key Specs

• Nominal Conductor: 300 mm²

• Stranding No./Dia.: 61 / 2.52

• Copper Stalk: 16 mm²

• Aluminium Sleeve Material: 99.6% pure aluminium

• Copper Palm Material: 99.95% pure copper

• Tensile Strength: 110 MPa

• Ductile Rating: 28%

• Final Metal State: Fully annealed (including joint)

• Joining Method: Friction welding (IEC standard)

• Operating Temperature: –40°C to +125°C

• Aluminium Resistivity: 2.6 micro-ohm cm (max)

• Copper Resistivity: 1.738 micro-ohm cm

• Aluminium Conductivity: 61.8% IACS (min)

• Copper Conductivity: 99.7% IACS

Standards & Compliance

• AS/NZS 4325 Part 1

• IEC (France)

• DIN/VDE (Germany)

• JIS (Japan)

• BS (United Kingdom)

Ideal For

• Terminating 300mm² aluminium power cables to copper equipment terminals

• Switchboard and distribution board installations

• Commercial and industrial electrical projects

• Electrical contractors handling high-current cable runs

• Maintenance teams replacing or upgrading power connections
