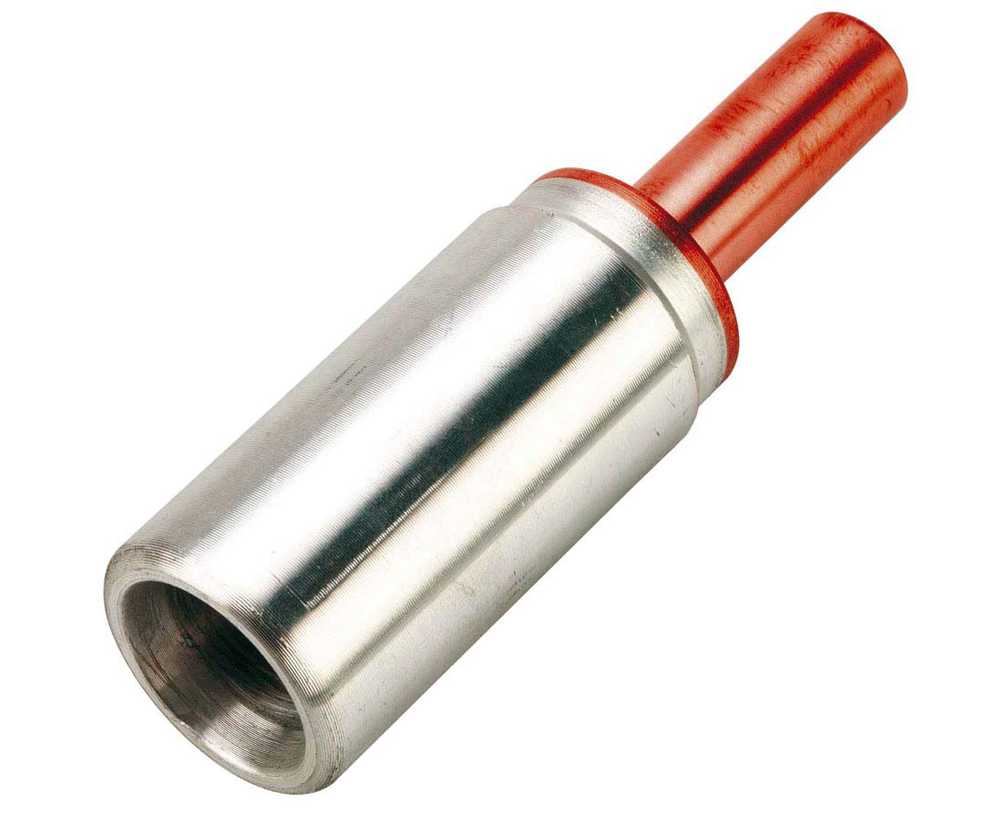

CABAC BI-METAL STALK 185MM2 CABLE BS185/16 x 1/EACH

Description

High-Performance Bi-Metal Stalk Lug for Aluminium Cable Connections

The CABAC Bi-Metal Stalk Lug 185mm² (BS185/16) is designed for secure termination of stranded sector and circular stranded aluminium cable in demanding electrical installations. Manufactured from 99.6% pure aluminium and 99.9% pure copper, the lug is friction welded to ensure a strong and reliable aluminium-to-copper transition, minimising resistance and improving current flow.

Each barrel is pre-coated with jointing compound, helping reduce oxidation and ensuring a solid electrical connection when crimped. This makes installation faster and more reliable, especially in switchboards, distribution panels, and large cable terminations where dependable conductivity is critical.

For electricians working with 185mm² aluminium conductors, this bi-metal lug delivers dependable performance while maintaining the mechanical strength needed for heavy-duty power distribution systems.

Built for Reliability and Standards Compliance

Electrical contractors rely on components that meet strict compliance requirements. The CABAC BS185/16 lug is manufactured to Australian dimensions and can be crimped using standard Australian tooling, making it easy to integrate into existing installation practices without specialised equipment.

The friction-welded aluminium sleeve and copper palm ensure a durable mechanical and electrical bond, reducing the risk of joint failure under load. With an operating temperature range of –40°C to +125°C, the lug performs reliably across a wide range of commercial and industrial environments.

The product also aligns with internationally recognised standards including:

• AS/NZS 4325 Part 1

• IEC (France)

• DIN/VDE (Germany)

• JIS (Japan)

• BS (United Kingdom)

This level of compliance provides peace of mind when working on projects that require certified components and strict electrical safety standards.

Trade-Ready Solution for Fast Installations

Designed with the trade in mind, CABAC bi-metal lugs are individually packed to keep them clean and ready for installation straight out of the bag. The jointing compound inside the barrel simplifies preparation, helping electricians complete terminations quickly and reduce installation time on site.

With a full range of available sizes and custom machining options, these lugs are well suited for contractors handling diverse commercial, industrial, or infrastructure projects where aluminium cable termination is required.

For electricians managing tight project timelines, using high-quality lugs like the CABAC BS185/16 helps avoid connection failures, reduce maintenance call-backs, and keep installations running smoothly.

Key Specs

• Nominal Conductor: 185 mm²

• Stranding No./Dia.: 37 / 2.52

• Copper Stalk: 16 mm²

• Aluminium Sleeve Material: 99.6% pure aluminium

• Copper Palm Material: 99.95% pure copper

• Tensile Strength: 110 MPa

• Ductile Rating: 28%

• Final Metal State: Fully annealed (including joint)

• Joining Method: Friction welding (IEC standard)

• Operating Temperature: –40°C to +125°C

• Resistivity: 2.6 micro-ohm cm (max) – aluminium

• Resistivity: 1.738 micro-ohm cm – copper

• Conductivity: 61.8% IACS (min) – aluminium

• Conductivity: 99.7% IACS – copper

• Compliance: AS/NZS 4325 Part 1, IEC, DIN/VDE, JIS, BS

Ideal For

• Terminating 185mm² aluminium cables

• Switchboards and distribution boards

• Commercial and industrial power installations

• Electrical contractors installing aluminium conductors

• Maintenance teams replacing or upgrading cable terminations

• Projects requiring compliant aluminium-to-copper connections
