CABAC BI-METAL STALK 16MM2 CABLE BS16/12 x 1/EACH

Description

Reliable Aluminium-to-Copper Termination for 16mm² Cable

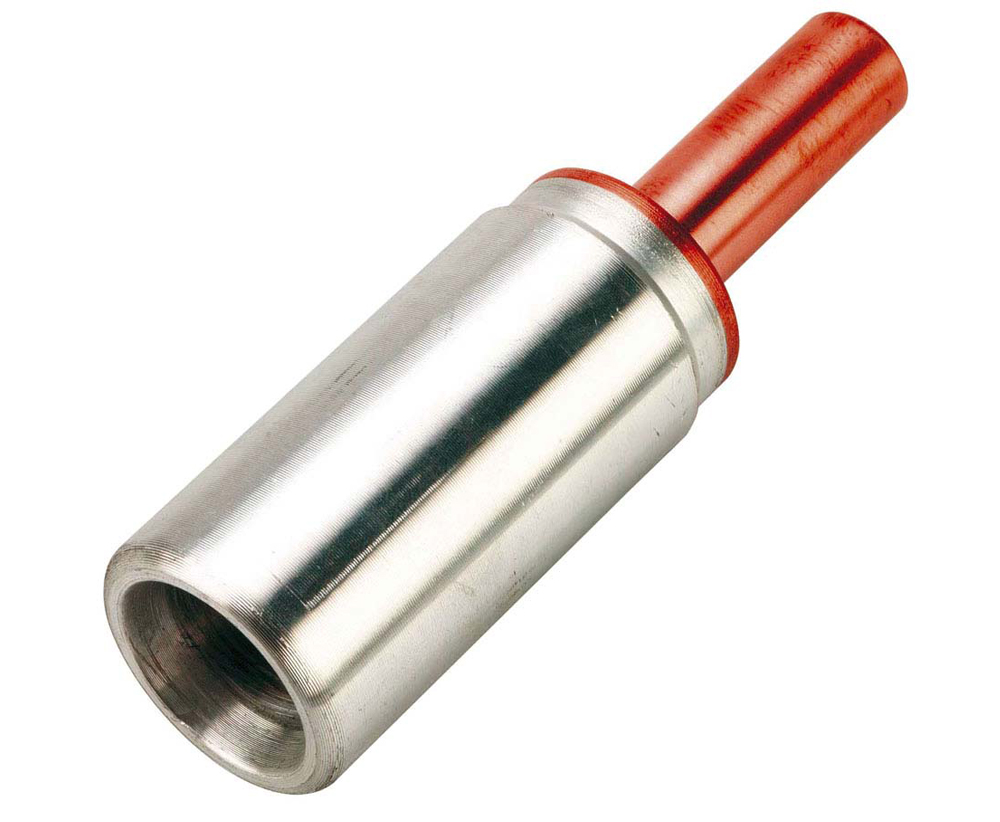

The CABAC Bi-Metal Stalk Lug 16mm² is designed to deliver secure, low-resistance termination when connecting aluminium conductors to copper terminals. Manufactured using high-purity aluminium and copper, the lug provides excellent electrical conductivity while preventing galvanic corrosion between dissimilar metals.

The friction-welded bi-metal design ensures a strong mechanical bond between the aluminium barrel and copper palm, giving electricians a dependable termination point for stranded sector and circular stranded aluminium cable. The barrel is pre-coated with jointing compound, helping reduce oxidation and maintain consistent electrical performance over time.

For installations where reliable aluminium-to-copper transitions are essential, this lug delivers the durability and conductivity required for professional electrical work.

Built for Compliance and Long-Term Reliability

CABAC manufactures these bi-metal stalk lugs using high-purity materials and industry-recognised joining methods to ensure consistent quality on site. The aluminium sleeve is produced from 99.6% pure aluminium, while the copper palm is made from 99.95% pure copper, delivering excellent conductivity and strength.

The friction-welded joint meets IEC standards, ensuring a durable connection that performs reliably under load. With an operating temperature range of –40°C to +125°C, the lug is suitable for a wide variety of electrical environments and installations.

The product is manufactured to Australian dimensions, meaning electricians can crimp confidently using standard Australian tooling without compatibility concerns.

Compliance with multiple international standards also provides confidence when specifying materials for commercial, industrial, and infrastructure work.

Trade-Ready Design for Faster Installations

Designed with electricians in mind, the CABAC bi-metal lug range helps streamline cable termination on site. Each lug is individually packed and supplied with jointing compound already applied, saving time during installation and reducing preparation steps.

The lug is suitable for stranded sector and circular stranded aluminium cable, making it a practical choice for switchboards, distribution equipment, and other electrical infrastructure where aluminium conductors are used.

CABAC also offers a full range of sizes, allowing contractors to maintain consistent termination standards across multiple cable sizes. For electrical contractors working across residential, commercial, and industrial projects, this provides a dependable solution that helps minimise delays and keep installations moving.

Key Specs

• Nominal Conductor: 6 mm²

• Stranding No./Dia.: 7 / 1.70

• Copper Stalk: 12 mm²

• Aluminium Sleeve Material: 99.6% pure aluminium

• Copper Palm Material: 99.95% pure copper

• Tensile Strength: 110 MPa

• Ductile Rating: 28%

• Final Metal State: Fully annealed (including joint)

• Joining Method: Friction welding (IEC standard)

• Operating Temperature: –40°C to +125°C

• Aluminium Resistivity: 2.6 micro-ohm cm (max)

• Copper Resistivity: 1.738 micro-ohm cm

• Aluminium Conductivity: 61.8% IACS (min)

• Copper Conductivity: 99.7% IACS

Standards & Compliance

• AS/NZS 4325 Part 1

• IEC France

• DIN/VDE Germany

• JIS Japan

• BS United Kingdom

Ideal For

• Terminating stranded aluminium conductors to copper busbars or terminals

• Switchboard and distribution board installations

• Commercial and industrial electrical systems

• Electrical contractors working with aluminium cabling

• Maintenance teams performing cable upgrades or replacements
