CABAC BI-METAL LUG 630MM2-BLANK BL630 x 1/EACH

Description

Built for High-Current Aluminium Terminations

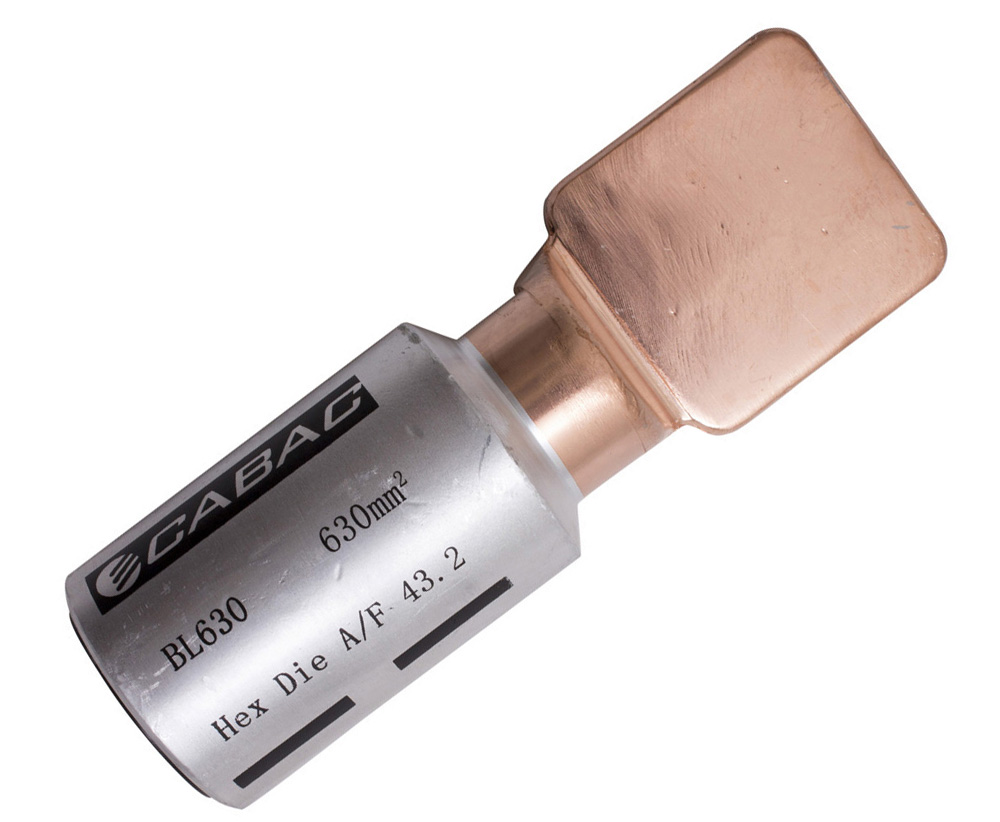

The CABAC BL630 Bi-Metal Lug is engineered for reliable termination of stranded sector and circular stranded aluminium conductors in demanding electrical installations. Manufactured using 99.6% pure aluminium for the barrel and 99.9% pure copper for the palm, this lug ensures strong conductivity and efficient current transfer in high-load circuits. The aluminium barrel is pre-filled with jointing compound, designed to break down oxide layers on aluminium conductors during crimping. This improves electrical contact and reduces resistance, helping maintain stable performance across distribution systems and industrial installations.

Using the recommended method—crimping from the palm end first—the compound is forced through the conductor strands, ensuring a secure mechanical and electrical connection that performs reliably under load.

Friction-Welded Strength for Long-Term Reliability

The aluminium and copper components are joined using a friction welding process compliant with IEC standards, creating a strong and electrically sound bond that resists electrolysis and corrosion over time. The barrel is also chemically treated to reduce contact resistance and corrosion, supporting long-term durability in harsh environments. With an operating temperature range of -40°C to 100°C, the BL630 is suited for installations exposed to varying site conditions.

Manufactured to meet AS/NZS4325 Part 1 and international standards including IEC, DIN/VDE, JIS, and BS, this bi-metal lug provides the compliance and quality assurance electricians and contractors rely on when working on regulated commercial and industrial projects.

Trade-Friendly Installation with Standard Tooling

Designed for the Australian electrical trade, the CABAC BL630 lug is compatible with standard aluminium hexagonal dies and tooling commonly used across the industry. Tooling is interchangeable with CABAC, Utilux, and Burndy systems, helping reduce the need for specialised equipment on site.

This compatibility makes installation faster and more convenient for electricians handling high-capacity terminations in switchboards, distribution systems, and large infrastructure projects. When paired with dependable supply and fast delivery from iSupply Electrical, contractors can keep projects moving without unnecessary delays or sourcing issues.

Key Specs

• Product Type: Bi-Metal Lug

• Nominal Conductor Size: 630mm²

• Stud Size: Blank

• Conductive Materials: Aluminium sleeve (99.6% pure), Copper palm (99.9% pure)

• Joining Method: Friction Welding (IEC standard)

• Tensile Strength: 110 MPa

• Ductile Rating: 28%

• Final Metal State: Fully annealed including joint

• Aluminium Resistivity: 2.6 micro-ohm cm (max)

• Copper Resistivity: 1.738 micro-ohm cm

• Aluminium Conductivity: 61.8% IACS (min)

• Copper Conductivity: 99.7% IACS

• Operating Temperature: -40°C to 100°C

• Tooling Compatibility: CABAC, Utilux, Burndy

• Crimp Type: Standard aluminium hexagonal dies

Standards & Compliance

• AS/NZS4325 Part 1

• IEC France

• DIN/VDE Germany

• JIS Japan

• BS United Kingdom

Ideal For

• Terminating large aluminium conductors in switchboards and distribution boards

• Commercial and industrial electrical installations

• Infrastructure and high-load electrical systems

• Electrical contractors performing main cable terminations

• Maintenance teams replacing or upgrading high-capacity power connections
