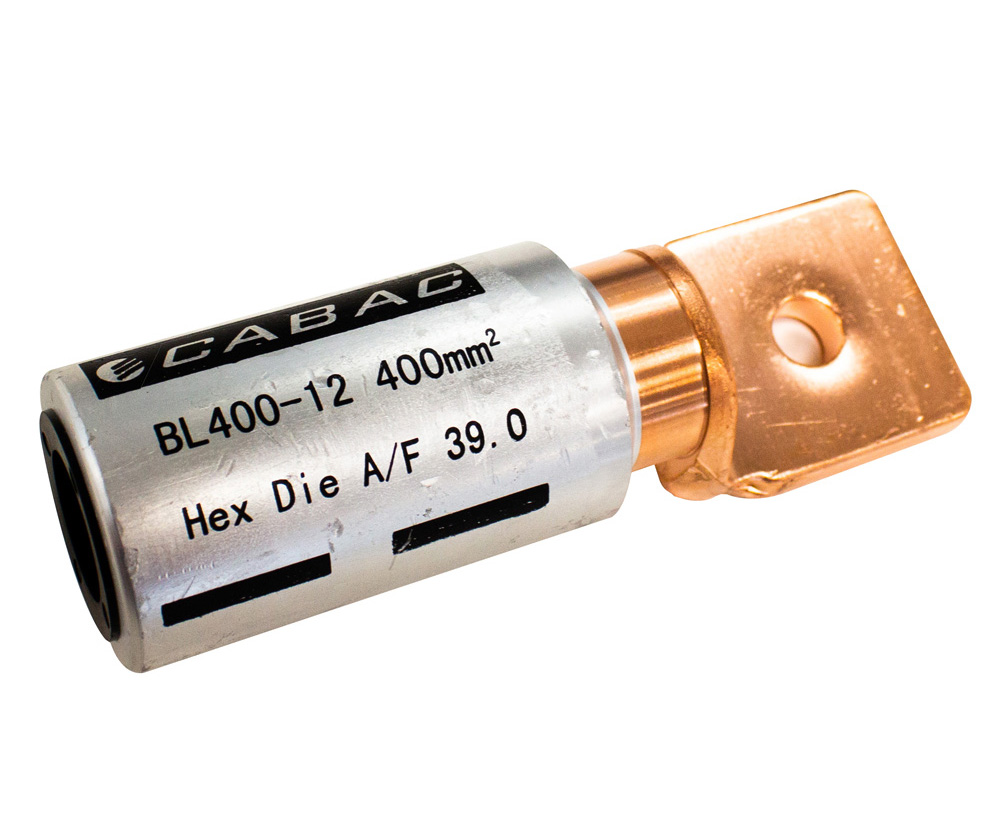

CABAC BI-METAL LUG 400MM2-STD12MM BL400-12 x 1/EACH

Description

High-Strength Bi-Metal Lug Performance for Large Cable Terminations

The CABAC BI-METAL LUG 400MM² STD 12MM (BL400-12) is designed to deliver dependable electrical performance when terminating large aluminium conductors to copper equipment such as terminals or busbars. Manufactured using a friction welding process, the lug forms a strong, electrically sound bond between the aluminium barrel and copper palm, helping ensure reliable current transfer on demanding installations. The barrel is pre-filled with crimping compound and sealed with a cap, helping protect the connection and improve conductivity once installed. When crimped from the palm end, the compound is forced through the conductor strands, assisting with proper contact and helping maintain a secure termination on high-capacity cables. For electricians working on switchboards, distribution infrastructure, or industrial installations, this design helps deliver a consistent, professional finish.

Reliable Bi-Metal Connection for Aluminium to Copper Interfaces

Connecting aluminium conductors to copper equipment requires the right termination to maintain electrical integrity. The CABAC BL400-12 bi-metal lug is specifically built for aluminium conductor to copper terminal or busbar connections, helping minimise issues that can arise from mixed-metal installations. The friction-welded joint between the aluminium barrel and copper palm provides a robust mechanical and electrical interface suited to heavy-duty applications. With clearly marked AF crimping positions on the barrel, installers can quickly identify correct crimp locations, helping ensure consistent terminations across multiple connections. For contractors working on commercial switchboards, industrial panels, or large power distribution systems, reliable cable lugs like this help maintain compliance and reduce the risk of connection failure or costly rework.

Trade-Ready Design for Fast, Efficient Installations

On busy job sites, efficiency matters. The CABAC bi-metal lug is designed with trade convenience in mind, helping electricians complete large cable terminations quickly and confidently. The sealed crimping compound inside the barrel removes the need for additional preparation, helping speed up installation while maintaining connection quality. With clearly marked crimp positions and a design suited to standard crimping procedures, electricians can achieve repeatable results across multiple terminations. This makes the lug well suited for switchboard builds, infrastructure projects, and commercial electrical installations where reliability and installation speed are critical. For contractors sourcing components through trade suppliers, having dependable termination hardware on hand helps minimise downtime, keep projects moving, and maintain a professional standard across every installation.

Key Specs

• Brand: CABAC

• Product Type: Bi-Metal Lug

• Conductor Size: 400mm²

• Stud Size: 12mm (STD 12mm)

• Model: BL400-12

• Manufactured using friction welding for a strong electrical joint

• Suitable for aluminium conductor to copper terminals or busbars

• Crimping compound in barrel and sealed with cap

• Designed to be crimped from palm end to force compound into conductor strands

• Crimping positions (AF) clearly marked on barrel

Ideal For

• Terminating large aluminium power cables

• Switchboard and distribution board installations

• Connecting aluminium conductors to copper busbars

• Commercial and industrial electrical projects

• Electrical contractors performing heavy-duty cable terminations

• Maintenance teams servicing power distribution equipment
