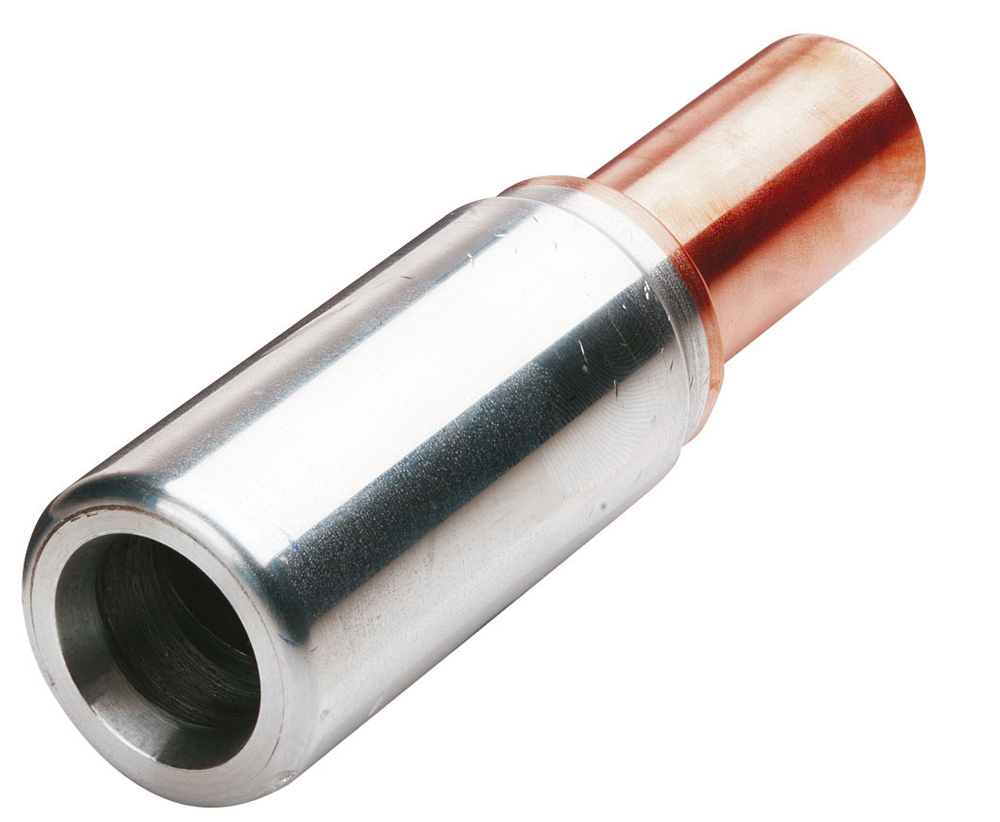

CABAC BI-METAL LINK 150AL TO 120CU BLK150/120 x 1/EACH

Description

Reliable Aluminium-to-Copper Cable Termination Performance

The CABAC Bi-Metal Link 150AL to 120CU is designed to provide a secure and efficient connection between aluminium and copper conductors in electrical installations. Built specifically for stranded sector and circular stranded aluminium to stranded copper cable, this bi-metal link ensures a strong mechanical and electrical connection where mixed-metal terminations are required.

With a 150mm² aluminium to 120mm² copper nominal conductor capacity, it delivers dependable conductivity for demanding installations. The friction-welded aluminium and copper barrels ensure optimal current transfer while reducing the risk of overheating at the joint, helping maintain consistent system performance across residential, commercial, and industrial projects.

For electricians working on switchboards, distribution systems, and heavy-duty installations, this link provides a straightforward and reliable solution when joining dissimilar conductors.

Trade-Grade Build for Long-Term Reliability

Manufactured using 99.6% pure aluminium and 99.9% pure copper, the CABAC bi-metal link is engineered for durability and reliable conductivity in demanding environments. The friction-welded construction ensures a strong bond between metals, helping minimise corrosion risks typically associated with aluminium-to-copper connections.

Each link is supplied with jointing compound pre-applied in the barrel, helping protect the connection and support long-term electrical performance once crimped. Designed to Australian dimensions, the link is compatible with standard Australian crimp tooling, making it easy to integrate into existing installation workflows.

For contractors and maintenance teams who rely on compliant, high-quality components, this CABAC link offers dependable performance backed by proven materials and construction.

Built for Efficient Installation on Busy Job Sites

Time matters on site, and the CABAC BLK150/120 bi-metal crimp link is built with trade efficiency in mind. The link is individually packed in plastic bags, keeping components clean, protected, and easy to organise in vans, toolkits, or site storage.

Because it works with standard Australian crimping tools, electricians can install it quickly without needing specialised equipment. This reduces installation time and helps keep projects moving without unnecessary delays.

CABAC also offers a full range of standard sizes, with the option to machine custom links at short notice when projects require non-standard cable transitions. That flexibility makes these links a practical choice for contractors managing varied installations across residential builds, commercial fit-outs, and industrial sites.

Key Specs

• Nominal Conductor (mm²): 150/120

• Stranding No./Dia. Al/CU: 37/2.25 – 37/2.03

• Aluminium Purity: 99.6%

• Copper Purity: 99.9%

• Suitable For: Stranded sector and circular stranded aluminium to stranded copper cable

• Barrel: Pre-coated with jointing compound

• Construction: Friction welded aluminium and copper

• Packaging: Individually packed in plastic bags

Ideal For

• Terminating aluminium to copper conductors in switchboards or distribution systems

• Electrical contractors installing mixed-conductor systems

• Commercial and industrial electrical installations

• Maintenance electricians performing cable upgrades or replacements

• Projects requiring reliable aluminium-to-copper cable connections
