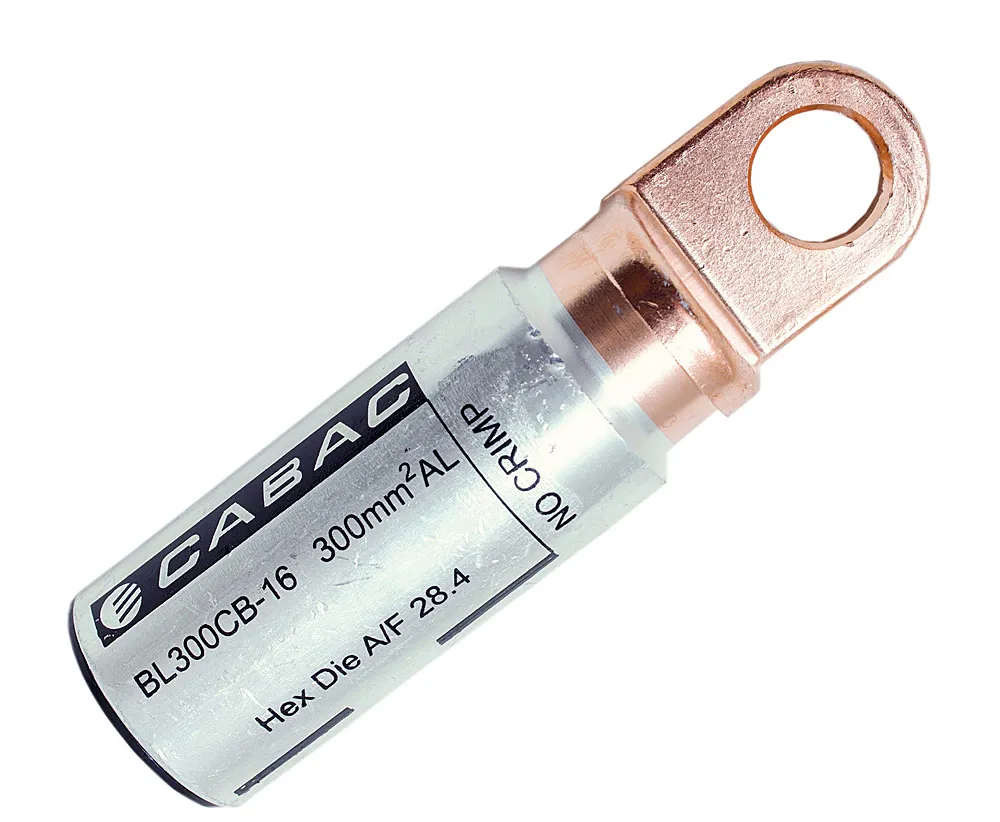

CABAC Bi-Metal Circ Break Lug 300mm2 16mm Stud BL300CB-16

Description

Strong Bi-Metal Connection for High-Current Performance

The CABAC Bi-Metal Circuit Breaker Lug 300mm² 16mm Stud BL300CB-16 is designed to provide a reliable transition between aluminium conductors and copper circuit breaker terminals. Manufactured using a friction welding process, the lug forms a highly durable and electrically sound joint that maintains strong conductivity under load.

The barrel is filled with crimping compound and sealed with a cap, helping ensure proper penetration into conductor strands during installation. When crimped from the palm end, the compound distributes through the conductor to improve electrical contact and reduce resistance. Clearly marked crimping positions (AF) on the barrel make installation straightforward, helping electricians achieve consistent results on high-capacity connections.

Built for Reliability and Long-Term Electrical Integrity

On commercial and industrial installations, connection integrity is critical. This CABAC bi-metal lug is engineered to support aluminium conductors while connecting securely to copper circuit breaker terminals, reducing the risks associated with dissimilar metal connections.

The friction-welded joint produces a mechanically strong bond that maintains electrical continuity even in demanding environments. By incorporating compound-filled barrels and a sealed cap, the lug helps minimise oxidation and improves long-term conductivity. For contractors working on switchboards, distribution systems, and high-load installations, it delivers the reliability required to keep systems operating safely and efficiently.

Trade-Ready Installation That Saves Time on Site

Designed with the needs of electricians and contractors in mind, the BL300CB-16 bi-metal circuit breaker lug supports quick and efficient termination during installation. The clearly marked AF crimping positions guide proper tool placement, helping ensure accurate crimps and reducing installation errors.

For busy worksites and tight project schedules, using dependable termination components means fewer call-backs and less troubleshooting later. Whether you’re completing a new switchboard installation or upgrading an existing distribution system, this lug provides a straightforward and dependable solution that helps keep jobs moving.

Key Specs

• Brand: CABAC

• Product Type: Bi-Metal Circuit Breaker Lug

• Conductor Size: 300mm²

• Stud Size: 16mm

• Model: BL300CB-16

• Manufactured using friction welding for a strong electrical joint

• Suitable for aluminium conductor to copper circuit breaker terminals

• Barrel contains crimping compound and sealed cap

• Crimping positions (AF) clearly marked on barrel

Ideal For

• Terminating aluminium conductors into circuit breakers

• Switchboard and distribution board installations

• Commercial and industrial electrical projects

• Electrical contractors installing high-capacity power systems

• Maintenance electricians replacing or upgrading breaker terminations
