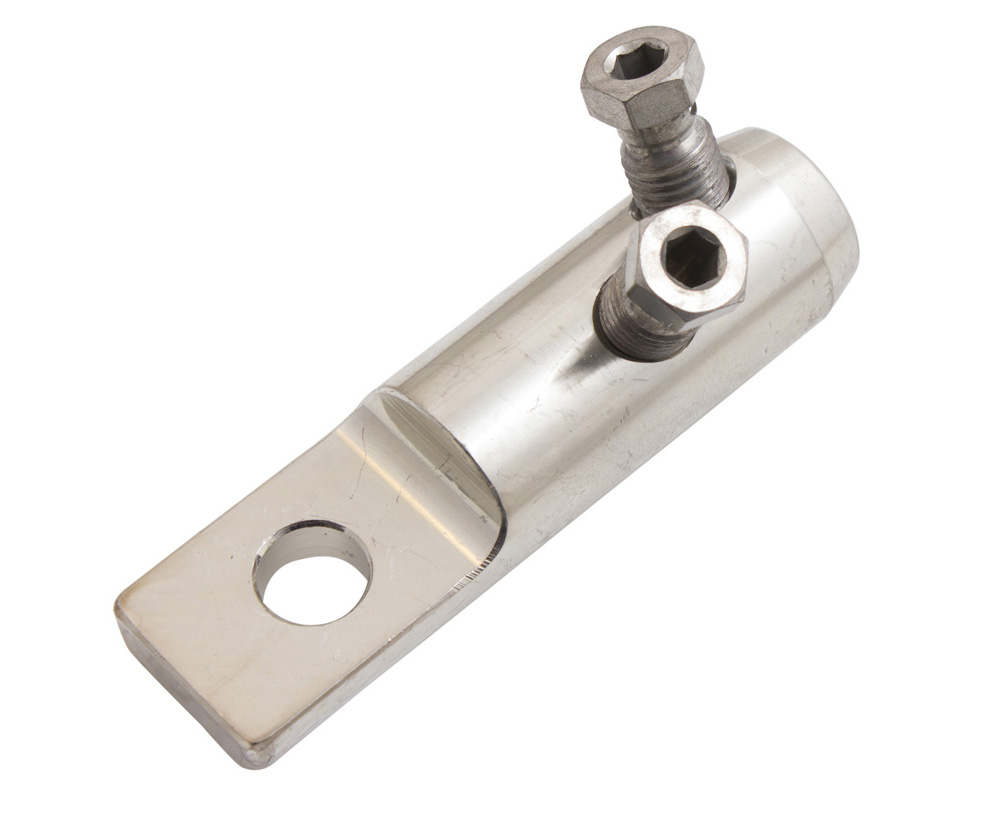

CABAC BOLTED AL LUG 95-16MM2 BAL95-12 x 1/EACH

Description

Built for Fast, Reliable Connections on Site

This bolted aluminium lug is designed to keep jobs moving, especially when time and consistency matter. Using proven shear bolt technology, it delivers a secure, low-resistance connection without the need for crimping tools or specialised skills. Simply tighten the bolts until they shear and you’re done—perfect for maintenance, upgrades, or new installs where speed and repeatable results are critical. The grooved inner barrel breaks through oxide layers for a stronger interface that performs better than traditional crimped joints, helping reduce rework and callbacks.

Compliant, Trade-Grade Performance You Can Trust

Manufactured from high-strength aluminium alloy and tin plated, this lug is suitable for both aluminium and copper conductors in low voltage applications up to 1000V. It supports solid and stranded, sector or circular conductors, giving you flexibility across different jobs and cable types. Designed to meet a wide range of international standards including AS/NZS4325 Part 1, it’s a dependable choice for compliant installations on residential, commercial, and industrial sites. Chamfered edges eliminate sharp corners, improving safety during handling and installation.

Designed for Everyday Trade Convenience

Installation requires only an allen key, making this lug ideal for site work where carrying minimal tools matters. No hydraulic crimpers, no guesswork—just consistent torque every time thanks to the shear head bolts. Supplied individually, it’s easy to order exactly what you need, whether you’re topping up van stock or sourcing parts for a specific project. The 95 x 12 configuration suits common conductor ranges, helping electricians standardise connections and minimise downtime waiting on the right components.

Key Specs

• Conductor range: 16–95mm²

• Low voltage rating: up to 1000V

• Suitable for solid and stranded conductors

• Compatible with aluminium and copper cables

• Shear bolt technology (no crimping required)

• Tin plated aluminium lug body

• Operating temperature: -20°C to 140°C

• Standards: AS/NZS4325 Part 1, IEC, DIN/VDE, JIS, BS, UL/NEMA

Ideal For

• Licensed electricians and electrical contractors

• Maintenance and upgrade works

• Commercial and industrial installations

• Jobs requiring fast termination without crimping tools

• Mixed aluminium and copper conductor applications
