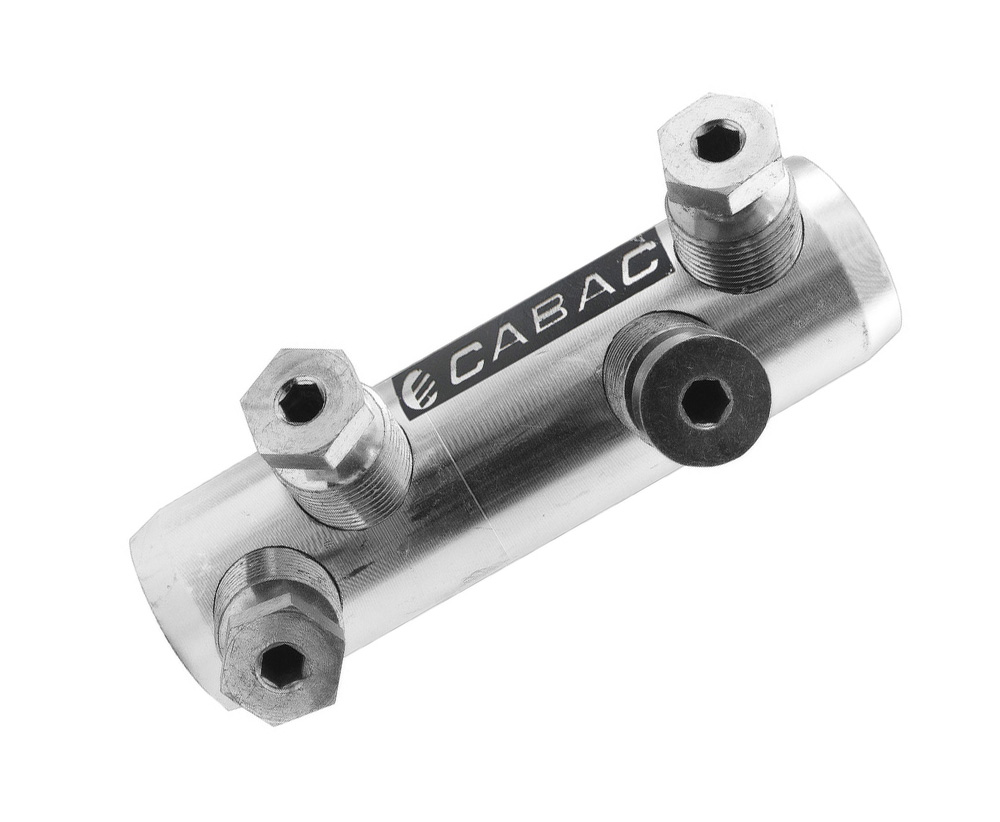

CABAC BOLTED AL LINK 95-16MM2 BALK95 x 1/EACH

Description

Built for Reliable Performance on Site

Designed for low voltage applications up to 1000V, the CABAC Bolted Aluminium Link delivers consistent, low-resistance connections for both aluminium and copper conductors. Proven shear bolt technology removes the guesswork—simply tighten until the bolts shear for the correct torque every time. The specially grooved barrel surface breaks through oxide layers, delivering a stronger electrical interface than traditional crimped joints. Ideal for fast, dependable terminations across a wide conductor range, even when switching between stranded and solid cores on the same job.

Compliance You Can Trust, Job After Job

Manufactured from high-strength, tin-plated aluminium alloy, this bolted aluminium link is purpose-built for Australian trade conditions. Fully tested to AS/NZS 4325 in a NATA-accredited laboratory, it meets international standards including IEC, DIN/VDE, JIS, BS, and UL/NEMA—reducing compliance risk on commercial and industrial installs. The tin-plated finish allows safe mixing of copper and aluminium conductors, while chamfered edges help eliminate sharp corners for safer handling during installation.

Trade-Focused Convenience That Saves Time

Forget carrying bulky crimping tools or relying on operator skill. Installation requires only an allen key, making this link ideal for site work, maintenance, and time-critical repairs. Fewer tools, faster connections, and less downtime mean you can keep projects moving and crews productive. Supplied as a single unit, it’s easy to stock, easy to order, and ready when you need it—perfect for contractors managing multiple jobs and tight schedules.

Key Specs

• Conductor Range: 16–95mm²

• Voltage Rating: Up to 1000V (LV)

• Number of Bolts: 4

• Bolt Diameter: 12mm

• Conductive Material: Aluminium (99.6% pure), tin plated

• Tensile Strength: 120 MPa

• Set Screw Material: Brass alloy, tin plated

• Shear Head Bolts: Brass alloy, tin plated

• Operating Temperature: -20°C to +140°C

• Standards: AS/NZS 4325 Part 1, IEC, DIN/VDE, JIS, BS, UL/NEMA

Ideal For

• Licensed electricians and electrical contractors

• LV power distribution and maintenance work

• Copper to aluminium conductor connections

• Commercial, industrial, and infrastructure projects

• Sites where crimping tools are impractical or unavailable
