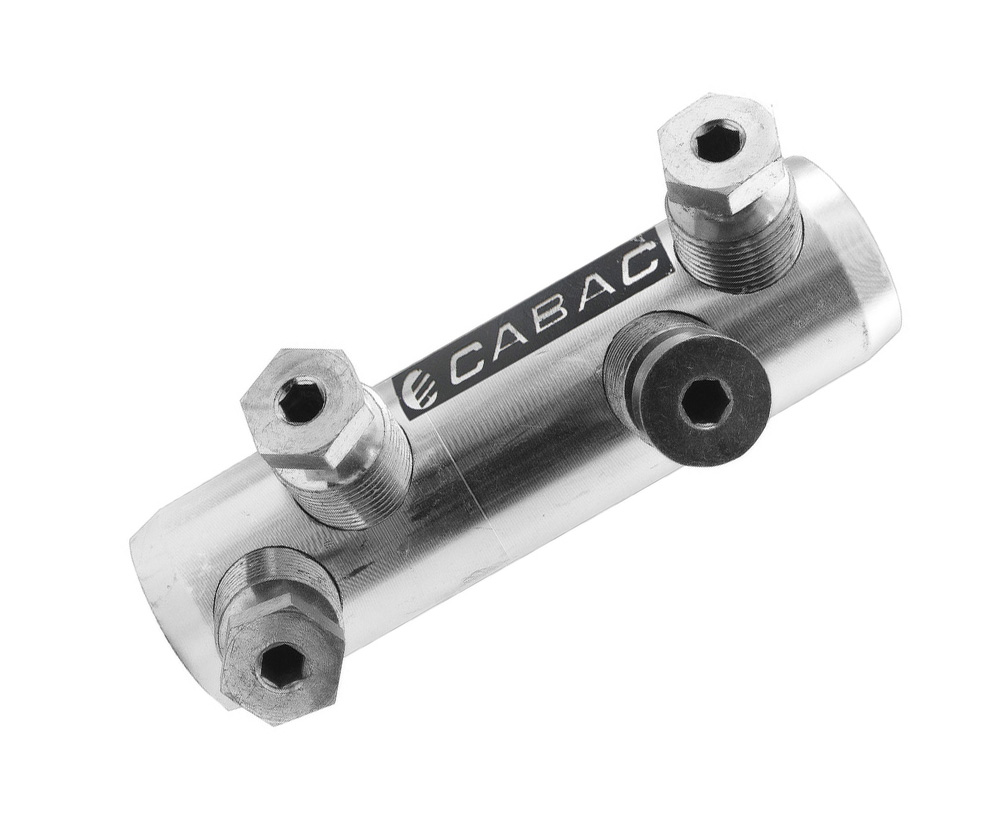

CABAC BOLTED AL LINK 240-95MMSQ BALK240 x 1/EACH

Description

Built for High-Performance LV Connections

The CABAC Bolted Aluminium Link 240–95mm² is designed for fast, dependable low-voltage connections up to 1000V on site. Using proven shear-bolt technology, it delivers the correct torque every time—no crimping, no guesswork. The specially grooved barrel breaks through oxide layers on both aluminium and copper conductors, creating a low-resistance connection that performs better than traditional crimped joints. Whether you’re working with solid or stranded, sector or circular conductors, this link keeps installs clean, consistent, and efficient.

Compliance You Can Trust on Every Job

Manufactured from high-strength, tin-plated aluminium alloy, this bolted aluminium link is purpose-built for Australian LV applications. It’s fully tested to AS/NZS 4325 Part 1 in CABAC’s NATA-accredited laboratory and also aligns with major international standards including IEC, DIN/VDE, JIS, BS, and UL/NEMA. The tin-plated finish allows safe mixing of copper and aluminium conductors, while chamfered edges reduce the risk of cable damage and installer injury—helping you meet compliance and safety expectations on commercial, industrial, and infrastructure sites.

Trade-Friendly Installation That Saves Time

Designed with electricians in mind, the CABAC BALK240 eliminates the need for hydraulic crimpers and specialised tooling. Installation requires only an Allen key, making it ideal for tight spaces, shutdown work, and urgent call-outs. With fewer tools, faster terminations, and consistent results across crews, you reduce downtime and keep projects moving. It’s a practical, trade-grade solution for contractors who value speed, reliability, and hassle-free procurement from a trusted electrical wholesaler.

Key Specs

• Conductor Range: 95–240mm²

• Voltage Rating: Up to 1000V (Low Voltage)

• Number of Bolts: 4

• Bolt Diameter: 20mm

• Conductive Material: Aluminium (99.6% pure), tin-plated

• Tensile Strength: 120 MPa

• Set Screw Material: Brass alloy, tin-plated

• Shear Head Bolts: Brass alloy, tin-plated

• Operating Temperature: -20°C to +140°C

• Installation Tool: Allen key

Ideal For

• Licensed electricians and electrical contractors

• LV power distribution and switchboard connections

• Joining copper to aluminium conductors without crimping

• Commercial, industrial, and infrastructure installations

• Maintenance and upgrade works where speed and reliability matter
