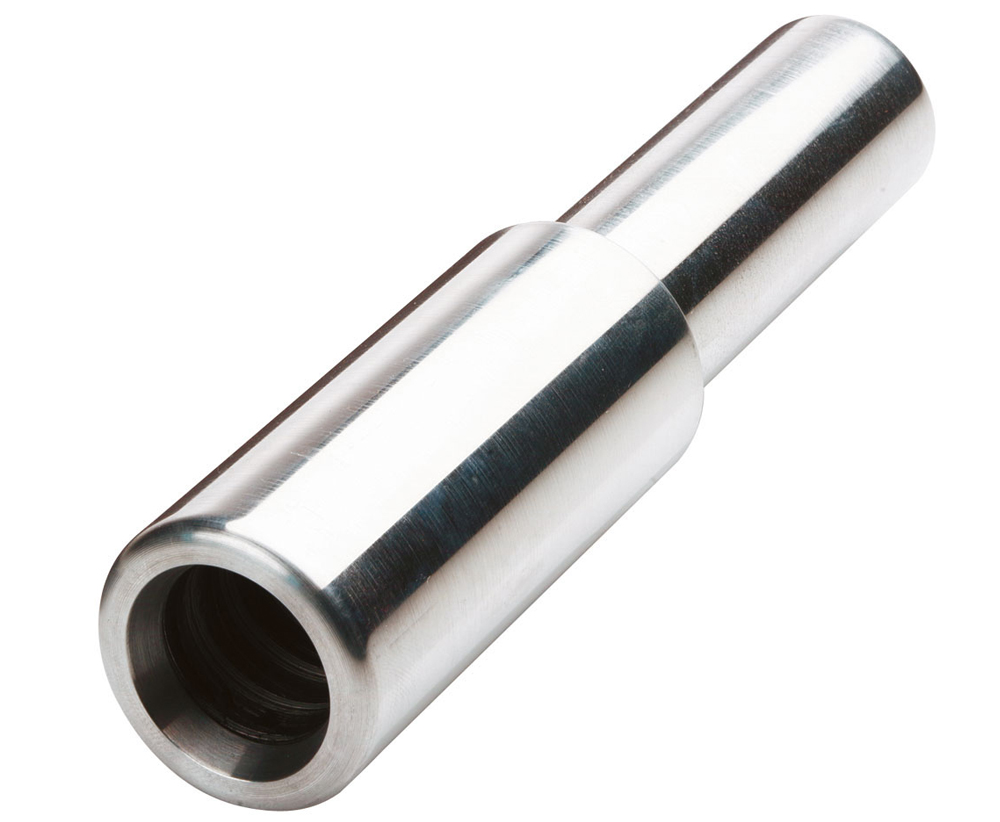

CABAC AL RED. LINK 95MM2 TO 50MM2 ALKR95/50 x 1/EACH

Description

Built for Solid Performance on Site

The CABAC Aluminium Reducing Link 95mm² to 50mm² (ALKR95/50) is designed to deliver a dependable, low-resistance connection when transitioning between aluminium conductor sizes. Manufactured from 99.6% pure aluminium and fully annealed for optimal ductility, it crimps cleanly and holds firm under load. The barrier-type construction provides a secure transition point without compromising electrical performance, helping you achieve consistent results on residential, commercial, and industrial jobs where aluminium conductors are specified.

Proven Reliability & Standards Compliance

This aluminium reducing link is engineered for peace of mind on compliant installations. It meets AS/NZS 4325 Part 1 and aligns with key international standards including IEC, DIN/VDE, JIS, BS, and UL/NEMA, making it suitable for regulated environments and critical infrastructure work. The integrated centre barrier creates an impermeable seal against oils and moisture, reducing the risk of ingress-related failures and extending service life in demanding conditions. Designed to be crimped using standard Australian tooling with hex dies, it supports correct installation practices without special equipment.

Trade Convenience That Saves Time

Built for working electricians, the ALKR95/50 reducing link installs quickly and reliably, helping keep jobs moving and downtime to a minimum. Clear sizing, defined crimp points, and compatibility with standard dies make it straightforward for site crews and maintenance teams alike. Backed by trade-focused wholesale supply, it’s easy to source alongside the rest of your project materials—so you can order once, install with confidence, and get on to the next task without delays.

Key Specs

• Product Type: Aluminium Reducing Link

• Nominal Conductor Size (mm²): 95 / 50

• Stranding Metric: 37/1.78 – 19/1.78

• Conductive Material: Aluminium, 99.6% pure

• Tensile Strength: 110 MPa

• Ductile Strength: 28%

• Electrical Resistivity: 2.6 micro-ohm cm (max)

• Conductivity: 61.8% IACS (min)

• Operating Temperature: -20°C to +140°C

• Standards Compliance: AS/NZS 4325 Part 1, IEC, DIN/VDE, JIS, BS, UL/NEMA

• Crimp Die (Large End): HT-95/120AL

• Crimp Die (Small End): HT-50/70AL

Ideal For

• Licensed electricians working with aluminium conductors

• Electrical contractors handling size transitions in switchboards and distribution systems

• Commercial and industrial installations requiring compliant aluminium terminations

• Maintenance teams performing upgrades or conductor replacements

• Projects where oil and moisture ingress protection is required
