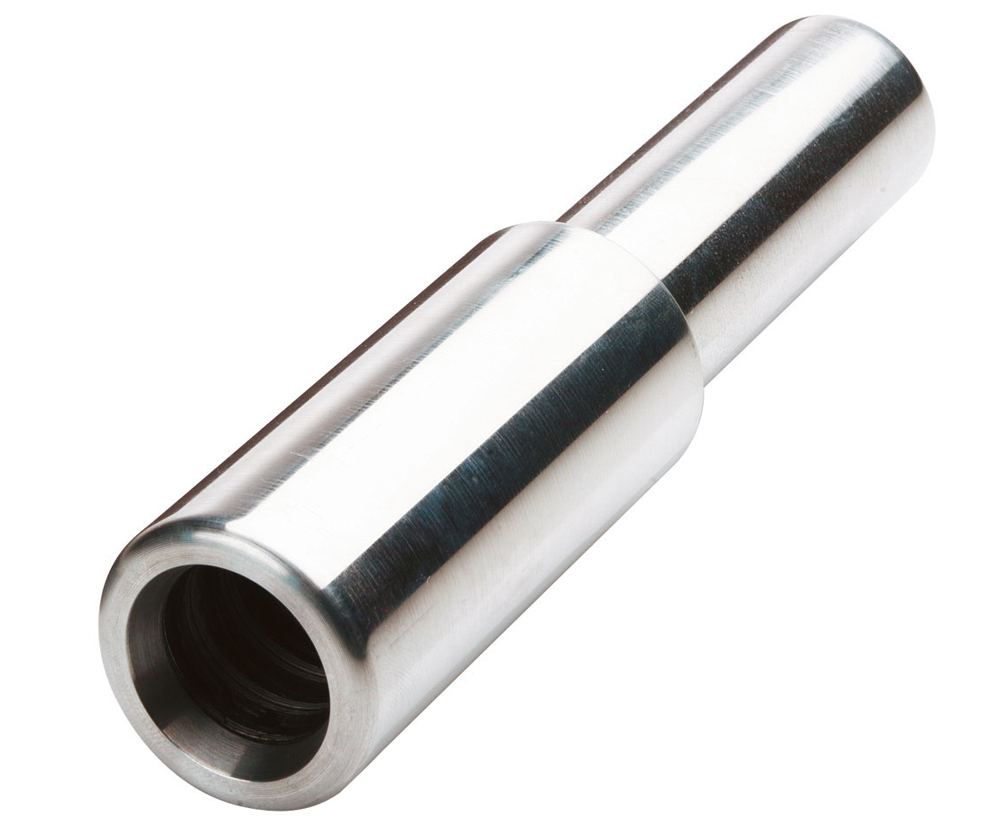

CABAC AL RED. LINK 70MM2 TO 16MM2 ALKR70/16 x 1/EACH

Description

Built for Solid Performance on Aluminium Connections

When you’re stepping down aluminium conductor sizes on site, this CABAC aluminium reducing link delivers a clean, low-resistance connection you can trust. Designed for stranded sector and circular stranded aluminium conductors, it ensures consistent electrical performance while maintaining mechanical strength after crimping.
With fully annealed 99.6% pure aluminium, the link is easy to work with using standard Australian hex dies—helping you get the job done right the first time without fighting the material. Less rework, fewer call-backs, and smoother installs across residential, commercial, and industrial jobs.

Barrier Type Design for Reliability & Compliance

This aluminium reducing link is a barrier type connector, making it suitable for environments where protection against oils and water ingress is essential. That extra layer of reliability helps reduce long-term connection issues and unexpected downtime, especially in switchboards, panels, and infrastructure work.
Manufactured to meet AS/NZS4325 Part 1 and aligned with major international standards, it’s a compliant solution you can specify with confidence on Australian jobs—keeping inspectors happy and projects moving without delays.

Trade-Friendly Fit for Faster Installations

Designed to be crimped with standard Australian tooling and hex dies, this reducing link slots straight into existing workflows—no special tools, no learning curve. Clear large-end and small-end sizing makes terminations straightforward on site, saving time during fit-off and commissioning.
Backed by a trade-focused wholesaler with fast dispatch and local Sydney pickup options, it’s easy to keep these on hand for planned works or urgent fixes when schedules are tight.

Key Specs

• Nominal Conductor Size: 70mm² / 16mm²

• Conductor Type: Stranded sector and circular stranded aluminium

• Conductive Material: Aluminium (99.6% pure)

• Tensile Strength: 110 MPa

• Ductile Strength: 28%

• Metal State: Fully annealed

• Electrical Resistivity: 2.6 micro-ohm cm (max)

• Conductivity: 61.8% IACS (min)

• Operating Temperature: -20°C to +140°C

• Large End Crimp Die: HT-50/70AL

• Small End Crimp Die: HT-6/35AL

• Number of Crimps: 1 per end

• Standards: AS/NZS4325 Part 1, IEC, DIN/VDE, JIS, BS, UL/NEMA

Ideal For

• Licensed electricians and electrical contractors

• Aluminium conductor size reductions in switchboards and panels

• Commercial and industrial electrical installations

• Maintenance and upgrade works requiring compliant aluminium terminations

• Projects exposed to oils or moisture where barrier protection is needed
