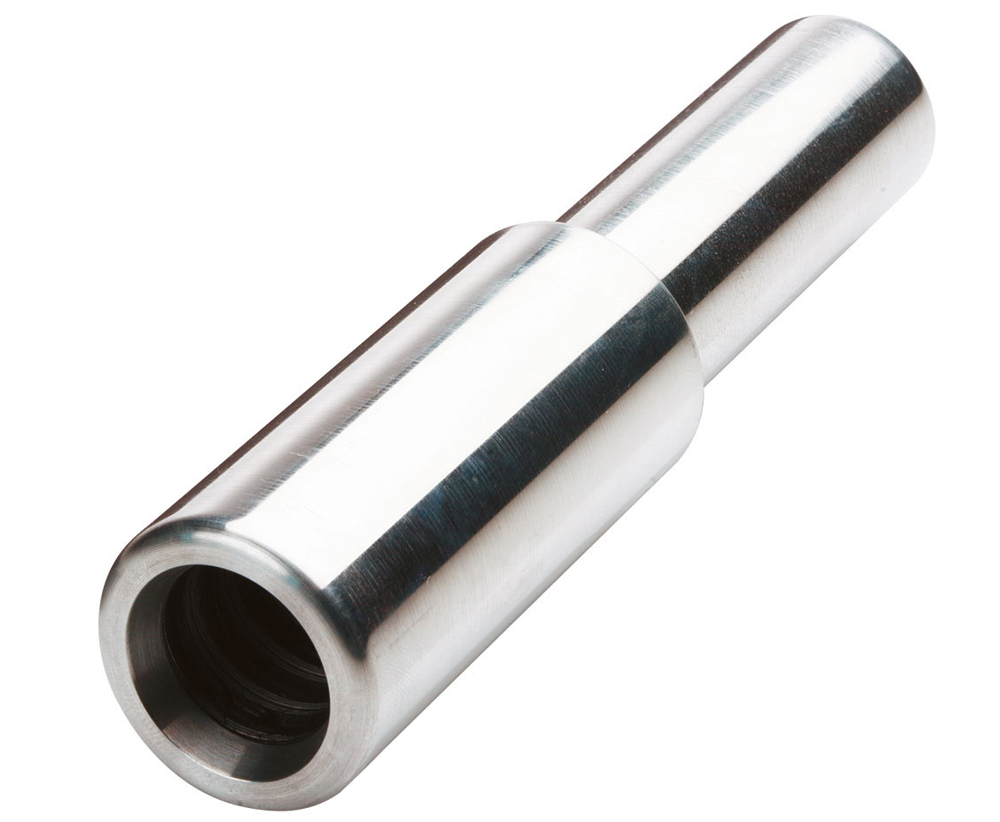

CABAC AL RED. LINK 50MM2 TO 35MM2 ALKR50/35 x 1/EACH

Description

Built for Reliable Performance on Site

This CABAC aluminium reducing link is designed to confidently join 50mm² to 35 al conductors, giving you a secure, low-resistance connection where conductor sizes need to step down. Manufactured from 99.6% pure aluminium and fully annealed, it delivers consistent conductivity and strong mechanical performance under load. The barrier-type construction helps protect the joint from moisture and oils, making it suitable for demanding commercial and industrial environments where reliability matters and call-backs aren’t an option.

Compliant, Proven, and Trade-Trusted

Engineered to meet AS/NZS4325 Part 1 and recognised international standards, this reducing link supports compliant installations across Australian worksites. It’s purpose-built for stranded sector and circular stranded aluminium conductors, with electrical properties that support stable performance over a wide operating temperature range. When you’re working to specs, inspections, and tight deadlines, this link gives peace of mind that the connection will perform as required from day one.

Designed for Trade Convenience and Efficiency

This reducing link is designed to be crimped using standard Australian tooling with standard hex dies, keeping installation simple and efficient without special equipment. Clear large-end and small-end sizing reduces installation errors and speeds up termination, helping you keep jobs moving. Backed by trade-focused supply and fast availability, it’s a dependable choice for electricians who want the right part on hand, exactly when it’s needed.

Key Specs

• Nominal Conductor Size: 50mm² / 35mm²

• Stranding Metric: 19/1.78 – 19/1.53

• Conductive Material: Aluminium, 99.6% pure

• Tensile Strength: 110 MPa

• Ductile Strength: 28%

• Electrical Resistivity: 2.6 micro-ohm cm (max)

• Conductivity: 61.8% IACS (min)

• Operating Temperature: -20°C to +140°C

• Large End Crimp Die: HT-50/70AL

• Small End Crimp Die: HT-6/35AL

Ideal For

• Licensed electricians working on commercial and industrial installations

• Aluminium conductor size reductions in switchboards and distribution systems

• Maintenance and upgrade works requiring compliant aluminium terminations

• Contractors needing reliable, barrier-type connections on active sites
