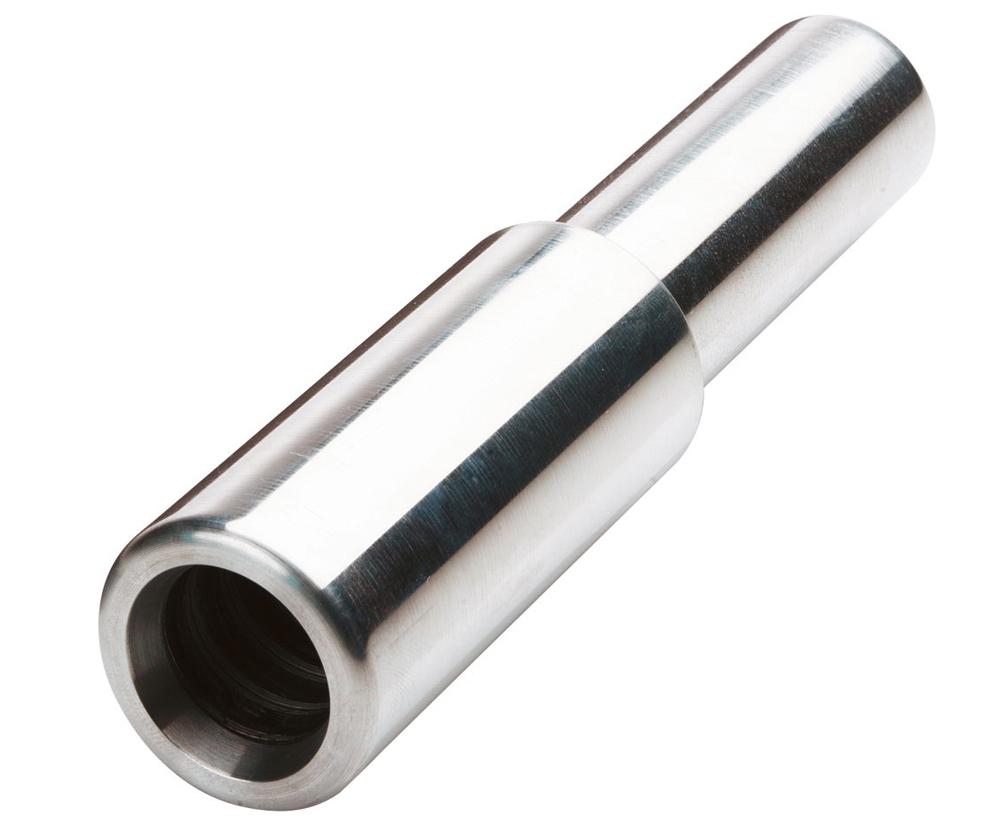

CABAC AL RED. LINK 50MM2 TO 16MM2 ALKR50/16 x 1/EACH

Description

Built for Clean, Secure Aluminium Connections

The CABAC Aluminium Reducing Link 50mm² to 16mm² (ALKR50/16) delivers a dependable way to step down aluminium conductor sizes without compromising connection quality. Designed for stranded sector and circular stranded aluminium conductors, this reducing link provides a solid, low-resistance joint that holds up on demanding commercial and industrial installs. The barrier-type construction creates an impermeable seal against moisture and oils, helping protect the joint over time and reducing the risk of callbacks caused by corrosion or connection failure.

Compliant, Proven, and Tool-Friendly

Engineered to meet international and Australian expectations, this aluminium reducing link is compliant with AS/NZS 4325 Part 1 and recognised across major global standards including IEC, DIN/VDE, JIS, BS, and UL/NEMA. Manufactured from 99.6% pure aluminium in a fully annealed state, it offers excellent ductility and consistent crimp performance. Designed to be crimped using standard Australian tooling with standard hex dies, it integrates easily into your existing workflow—just avoid crimping too close to the centre barrier to maintain structural integrity.

Trade-Ready Convenience for Busy Jobs

When time on site matters, you want components that install smoothly and perform long-term. The CABAC AL Reducing Link supports fast, single-crimp terminations on each end, helping speed up installations and minimise downtime. Available through a trade wholesaler that understands contractor schedules, this reducing link is ideal for stocking on the van or ordering as needed for switchboards, upgrades, and maintenance work—keeping projects moving and margins protected.

Key Specs

• Nominal Conductor Size: 50mm² to 16mm²

• Stranding Metric: 19/1.78 – 7/1.70

• Barrier Type: Impermeable to oils and water

• Conductive Material: Aluminium (99.6% pure)

• Tensile Strength: 110 MPa

• Ductile Strength: 28%

• Electrical Conductivity: 61.8% IACS (min)

• Resistivity: 2.6 micro-ohm cm (max)

• Operating Temperature: -20°C to +140°C

• Compliance: AS/NZS 4325 Part 1, IEC, DIN/VDE, JIS, BS, UL/NEMA

• Large End Crimp Die: HT-50/70AL

• Small End Crimp Die: HT-6/35AL

• Crimps Required: 1 per end

Ideal For

• Licensed electricians and electrical contractors

• Commercial and industrial aluminium cable terminations

• Switchboard builds and upgrades

• Maintenance and replacement of aluminium conductors

• Jobs requiring compliant, moisture-resistant connections
