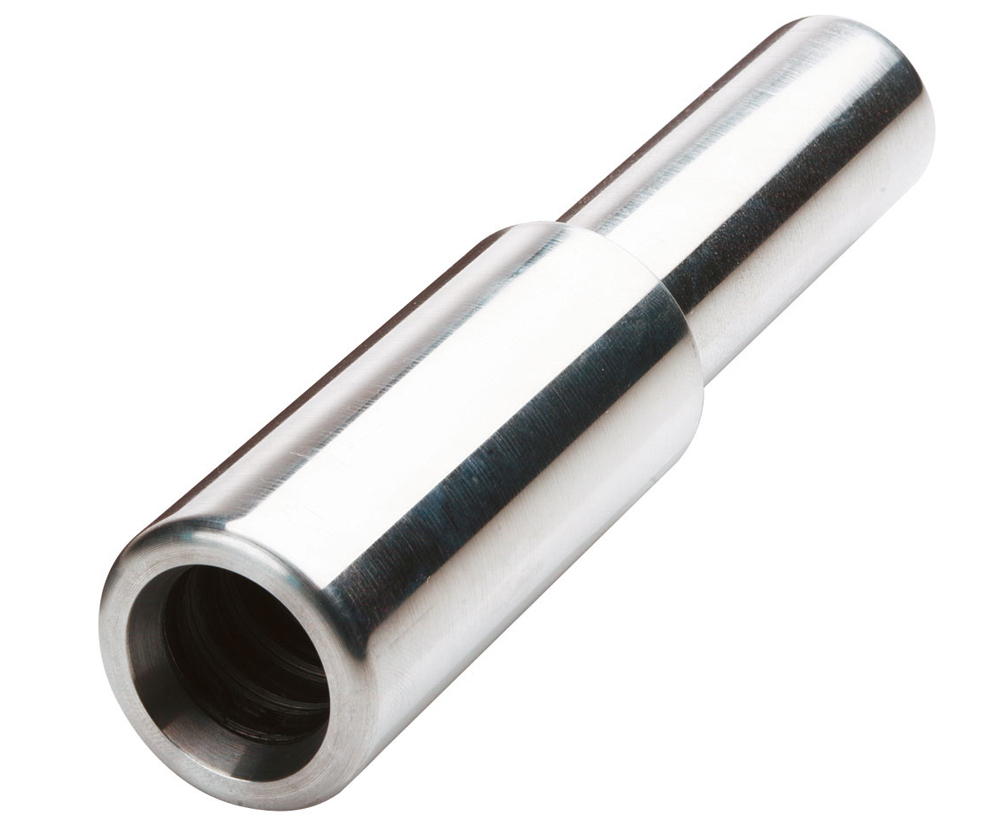

CABAC AL RED. LINK 500MM2 TO 300MM2 ALKR500/300 x 1/EACH

Description

Built for High-Load Performance on Site

The CABAC Aluminium Reducing Link 500mm² to 300mm² (ALKR500/300) is designed to deliver a solid, low-resistance connection when stepping down aluminium conductors on demanding installations. Manufactured from 99.6% pure aluminium and fully annealed, it provides excellent conductivity and ductility for secure, long-term joints. The barrier-type construction creates an impermeable seal against oils and moisture, helping maintain performance in harsh environments and reducing the risk of future faults that cause callbacks and downtime.

Proven Reliability & Standards Compliance

This aluminium reducing link is built to meet the expectations of professional electrical contractors working to strict compliance requirements. It conforms to AS/NZS4325 Part 1 and is aligned with major international standards including IEC, DIN/VDE, JIS, BS, and UL/NEMA, giving confidence on commercial and industrial projects. Designed for stranded sector and circular stranded aluminium conductors, it is compatible with standard Australian crimping tools and hex dies, ensuring consistent results on site when installed correctly.

Trade-Ready Convenience & Installation Efficiency

Supplied as a single trade-grade unit, the CABAC AL reducing link is ideal for electricians who need reliable components without delays or guesswork. Clear crimping guidance and compatibility with standard tooling help speed up installation and avoid rework. Whether you’re upgrading switchgear, connecting feeders, or managing conductor size transitions on live projects, this reducing link supports efficient workflows and keeps jobs moving—especially when sourced through a wholesaler that understands trade urgency and site timelines.

Key Specs

• Nominal Conductor Size: 500mm² to 300mm²

• Conductor Type: Stranded sector and circular stranded aluminium

• Conductive Material: Aluminium, 99.6% pure

• Tensile Strength: 110 MPa

• Ductile Strength: 28%

• Electrical Conductivity: 61.8% IACS (min)

• Resistivity: 2.6 micro-ohm cm (max)

• Operating Temperature: -20°C to +140°C

• Standards: AS/NZS4325 Part 1, IEC, DIN/VDE, JIS, BS, UL/NEMA

Ideal For

• Licensed electricians and electrical contractors

• Commercial and industrial power installations

• Aluminium conductor size transitions

• Switchboards, feeders, and distribution upgrades

• Projects requiring compliant, moisture-resistant joints
